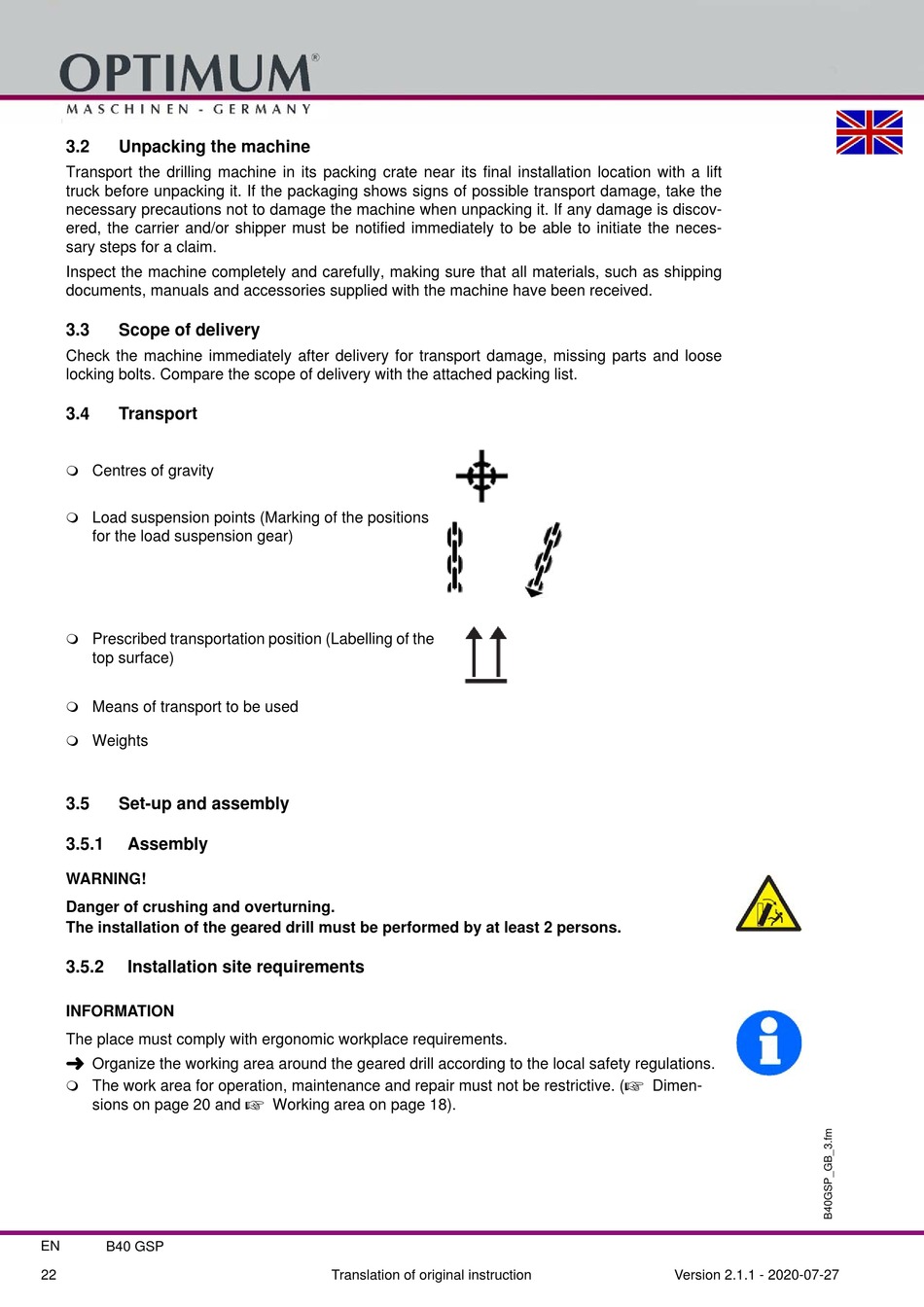

3.2

Unpacking the machine

Transport the drilling machine in its packing crate near its final installation location with a lift
truck before unpacking it. If the packaging shows signs of possible transport damage, take the
necessary precautions not to damage the machine when unpacking it. If any damage is discov-
ered, the carrier and/or shipper must be notified immediately to be able to initiate the neces-
sary steps for a claim.
Inspect the machine completely and carefully, making sure that all materials, such as shipping
documents, manuals and accessories supplied with the machine have been received.
3.3

Scope of delivery

Check the machine immediately after delivery for transport damage, missing parts and loose
locking bolts. Compare the scope of delivery with the attached packing list.
3.4

Transport


Centres of gravity

Load suspension points (Marking of the positions
for the load suspension gear)

Prescribed transportation position (Labelling of the
top surface)

Means of transport to be used

Weights
3.5

Set-up and assembly

3.5.1

Assembly

WARNING!
Danger of crushing and overturning.
The installation of the geared drill must be performed by at least 2 persons.
3.5.2

Installation site requirements

INFORMATION
The place must comply with ergonomic workplace requirements.

Organize the working area around the geared drill according to the local safety regulations.

The work area for operation, maintenance and repair must not be restrictive. (
sions on page 20 and
EN B40 GSP
22

Working area on page 18).
