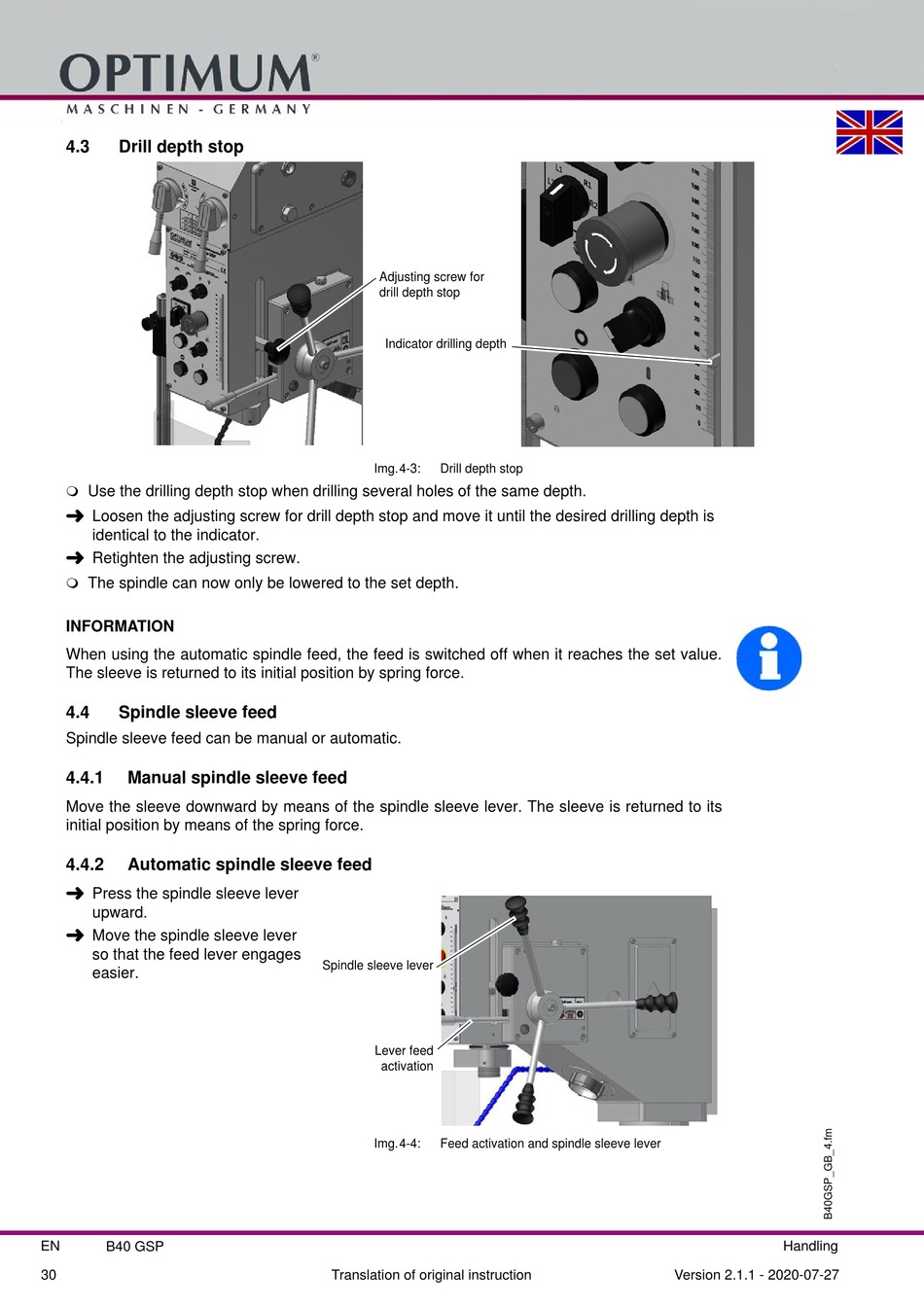

4.3

Drill depth stop


Use the drilling depth stop when drilling several holes of the same depth.

Loosen the adjusting screw for drill depth stop and move it until the desired drilling depth is
identical to the indicator.

Retighten the adjusting screw.

The spindle can now only be lowered to the set depth.
INFORMATION
When using the automatic spindle feed, the feed is switched off when it reaches the set value.
The sleeve is returned to its initial position by spring force.
4.4

Spindle sleeve feed

Spindle sleeve feed can be manual or automatic.
4.4.1

Manual spindle sleeve feed

Move the sleeve downward by means of the spindle sleeve lever. The sleeve is returned to its
initial position by means of the spring force.
4.4.2

Automatic spindle sleeve feed


Press the spindle sleeve lever
upward.

Move the spindle sleeve lever
so that the feed lever engages
easier.
EN B40 GSP
30
Adjusting screw for
drill depth stop
Indicator drilling depth
Img.4-3: Drill depth stop
Spindle sleeve lever
Lever feed
activation
Img.4-4: Feed activation and spindle sleeve lever
