Manual Controls

2.2 Manual Controls

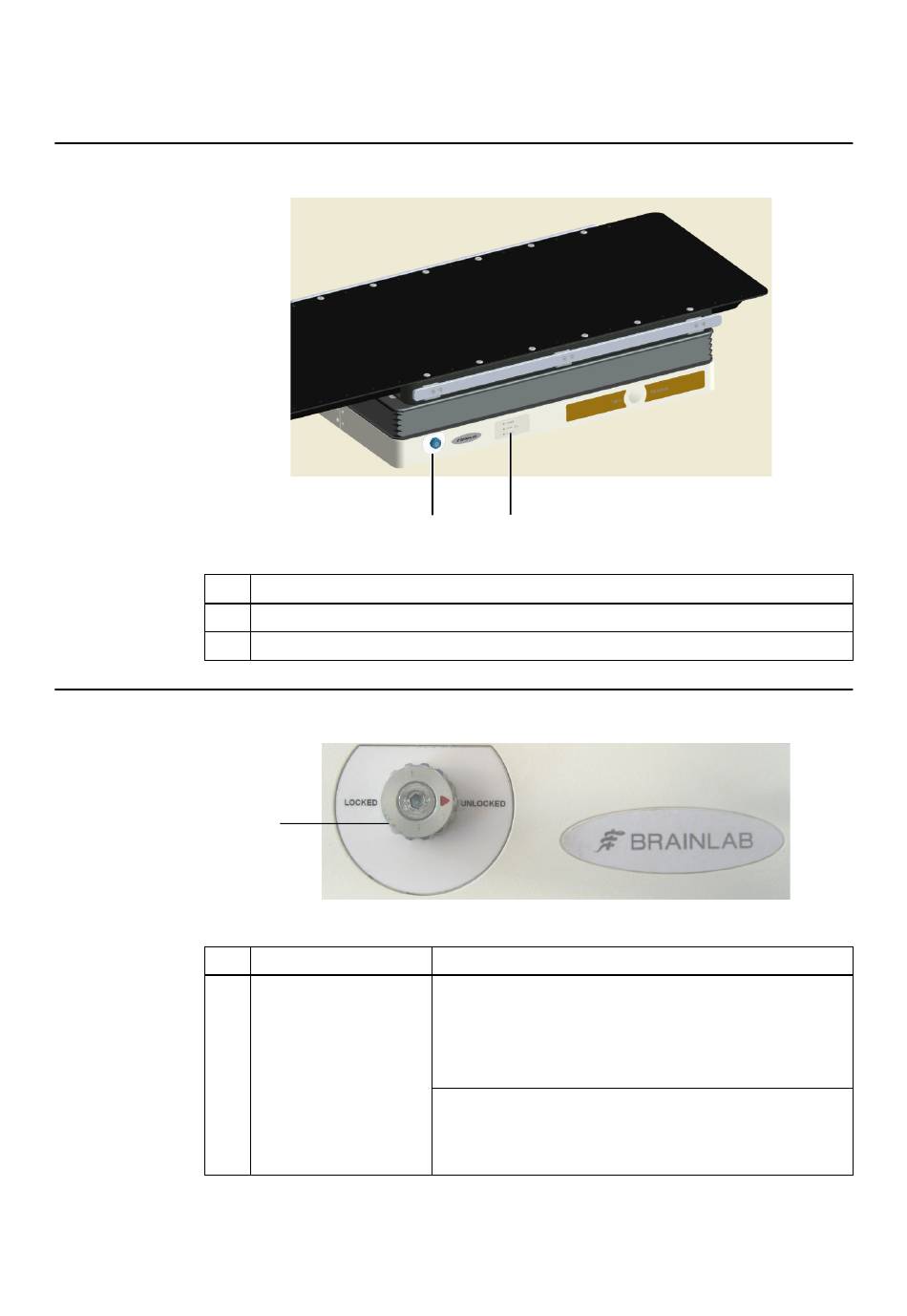

Left/Right-hand Side of the Device
No.
①
②
Service Lock
No.
①
NOTE: If either lock is rotated out of the Unlocked position, both LOCK ALL LEDS are lit to
indicate that the device is blocked (see page 23).
22
①
Component
Service Lock
User Interface
①
Component
Service Lock
②
Figure 3
Figure 4
Function/Usage
The Service Lock is a steady bolt that locks the lifting me-
chanics in the Home Position.
To engage the Service Lock:
1. Move the Couch-Top to Home Position.
2. Rotate the Service Lock knobs to the locked position
Locking the lifting-mechanics is only effective if both knobs
are completely turned to the Locked position.
Releasing the lifting-mechanics is only effective is both knobs
are turned back to the Unlocked position.
Hardware User Guide Rev. 1.1 Robotics Vero Ver. 2.1
