Operating Robotics Vero
Steps
3.
NOTE: Be aware that the position of Robotics Vero as displayed is only a principal orientation
guide. The graphical display of the overall operating range (displayed as a diamond shape in this
tab) is not to scale. The values displayed refer to the relative movement of Robotics Vero in
accordance with IEC 61217 - 'Table Top System' designation index 't'. The values displayed do not
consider any external sources of deflection such as e.g. bending of the couch pedestal.
How to Perform a Maneuver with the Robotics Service Application
Steps
1.
28

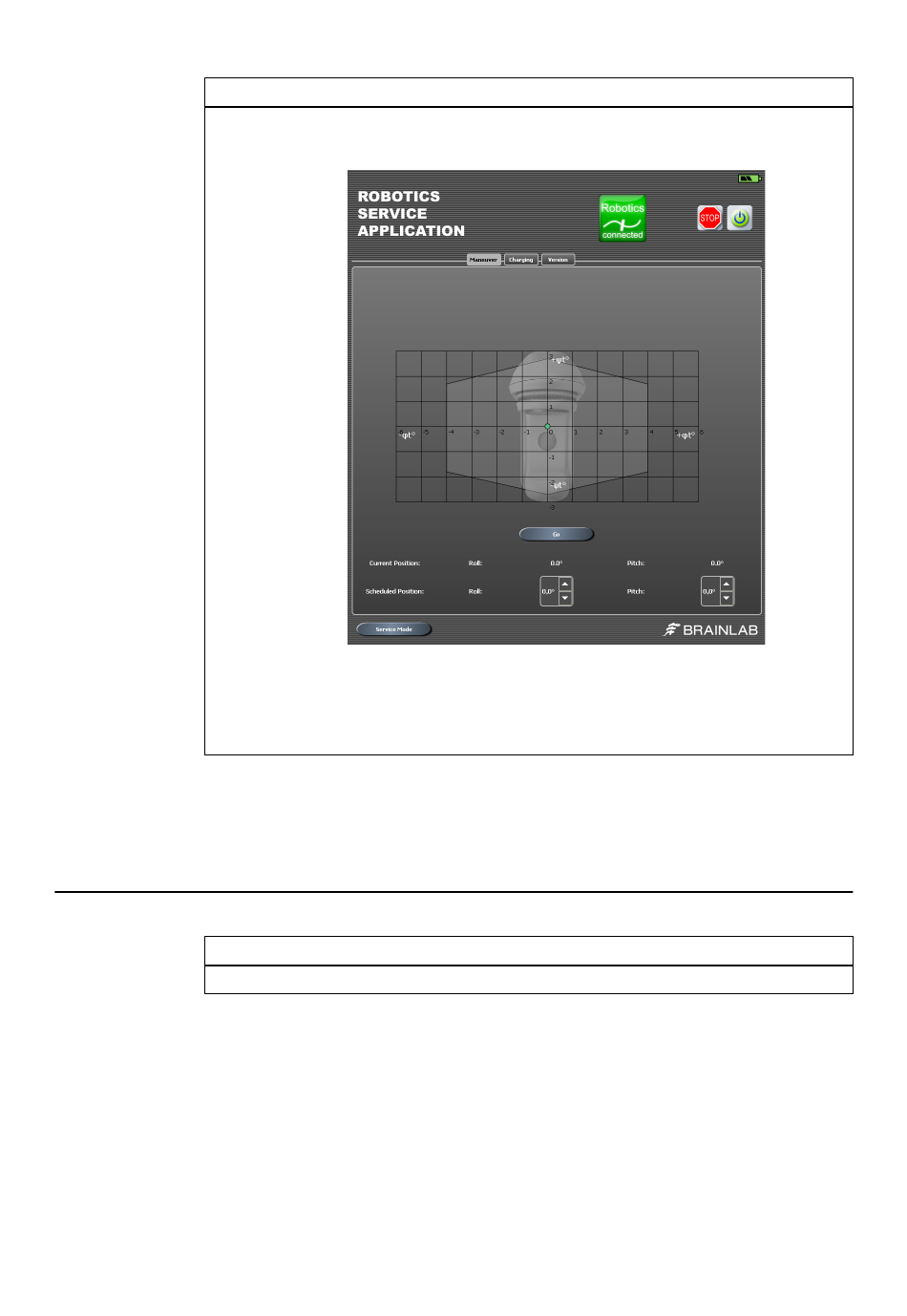

The application automatically establishes a connection to Robotics Vero. The following
screen is displayed:
②
The connection state ① Robotics connected (in green) shows that a connection has
been established.
The current position of Robotics Vero is displayed numerically ②.
The position is also shown graphically as a single green dot ③.
Select the Maneuver tab.
①
③
