Procedure

1. 'All' Self Test (Refer to Types of Test and Viewing the Test Results): Execute a
'All' Self Test and record any errors. If printing facilities are available, select the
PRINT option to obtain a hard copy of the results.
2. Prepare the 9500B:
a. Switch 9500B Power OFF.

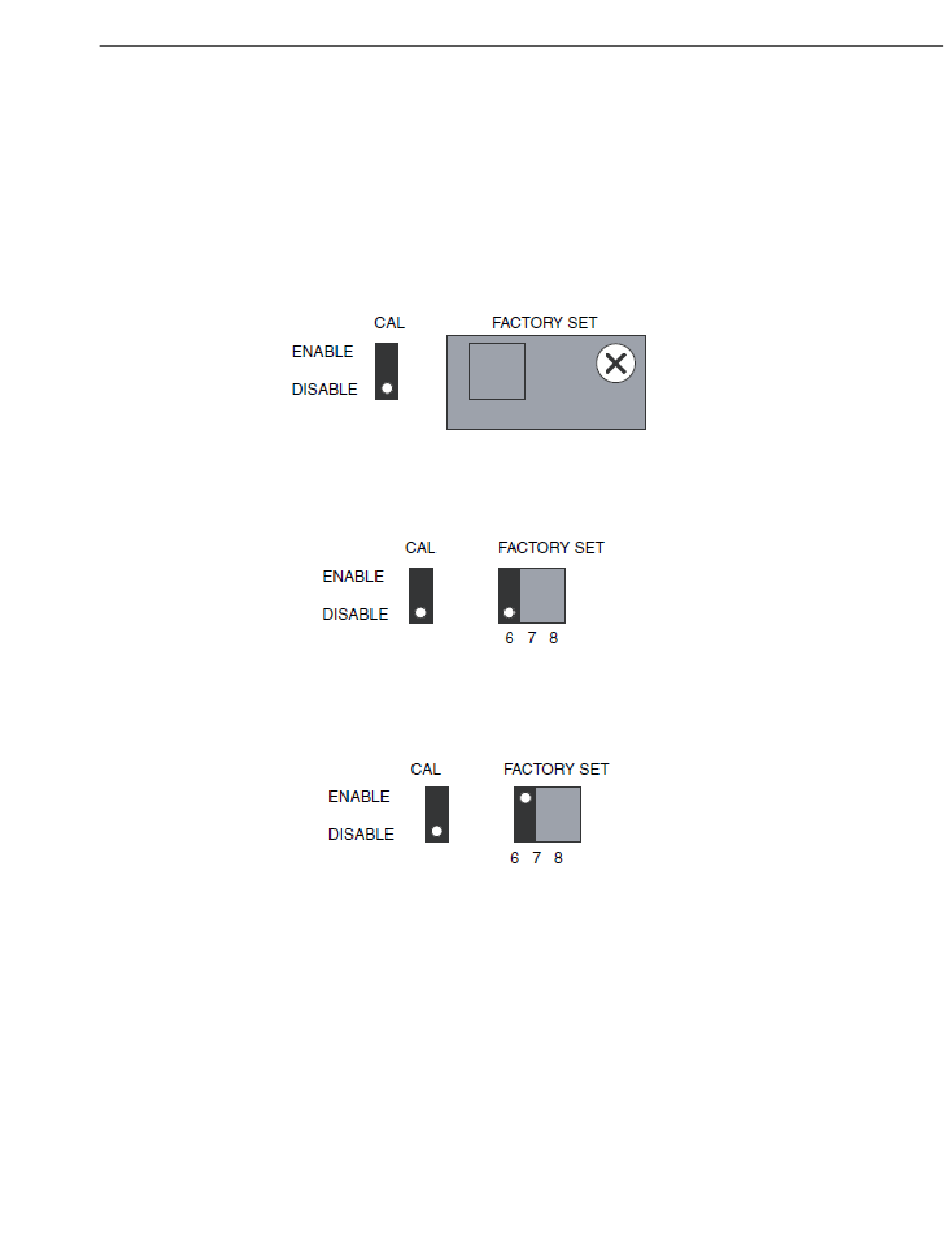

b. Locate the FACTORY SET switches on the 9500B rear panel:
1) Remove the switch cover by releasing its retaining screw.
2) Set Switch 6 to the ENABLE position (up) Do not disturb any of the
3. Insert the PC-Card:
a. Locate 'PCMCIA SLOT 1' in the 9500B front panel.
b. Insert the PC-Card into 'PCMCIA SLOT 1', exerting just enough pressure to
push out the black button by the side of the slot.
other switches.
High Performance Oscilloscope Calibrator
Routine Maintenance
erw162
erw163
erw164
5
