Interface Test

The interface test selectively checks the 9500B front panel operations, covering display
memory integrity, keyboard operation, the display itself, integrity and formatting of static
RAM memory cards for Procedure mode, the correct operation of a connected tracker
ball, and the correct operation of a connected printer.

Access to Interface Tests

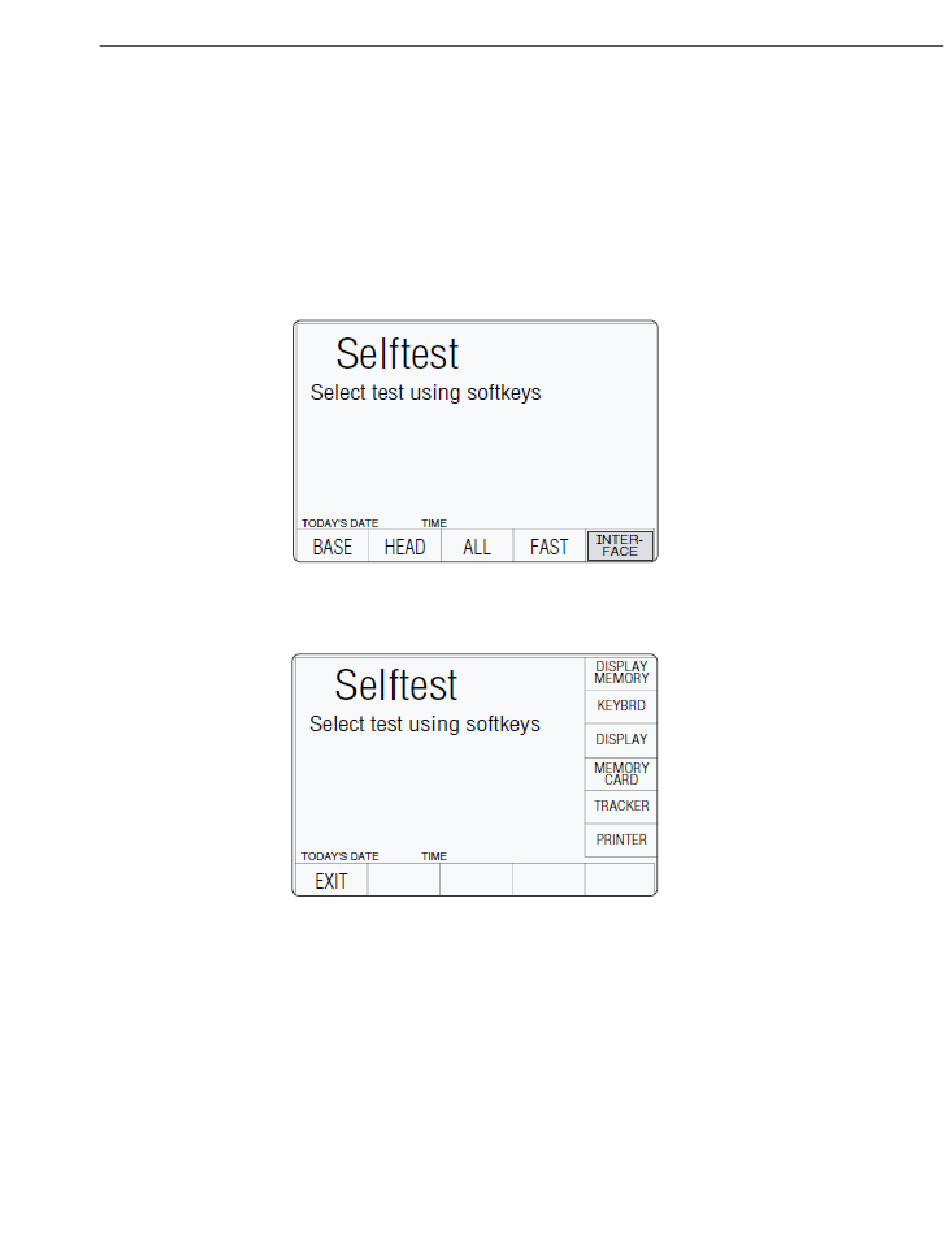

Once the Test mode has been selected, Interface Test is selected by pressing the
INTERFACE screen key in the 'Select test' menu:
Pressing INTERFACE transfers to the 'Select test' menu screen:
The required check can be selected from the list on the right of the screen, using the
corresponding screen key.
EXIT returns to the previous 'Select required test' menu screen.
The six available checks are detailed, in list order, in the following paragraphs.
