9. Select TARGET 2 and similarly enter calculated Falling Edge speed value. Press
ACCEPT CAL followed by EXIT.
10. Select STORE HEAD CAL and follow on screen instructions to:
•
Select the warning period before recalibration is due (leave at default 30 days
unless otherwise requested).
•
Modify the calibration due date (default 1 year from calibration date)
11. Select STORE. Use the CHANNEL SELECT softkey to change to the
appropriate Active Head to save any unsaved data until the NONE indicator is
displayed.
12. Select EXIT to step back through the menus to the main Calibration Mode menu,
then press the MODE key to exit calibration mode.
13. Disconnect 9550 from 9500B Base Unit.

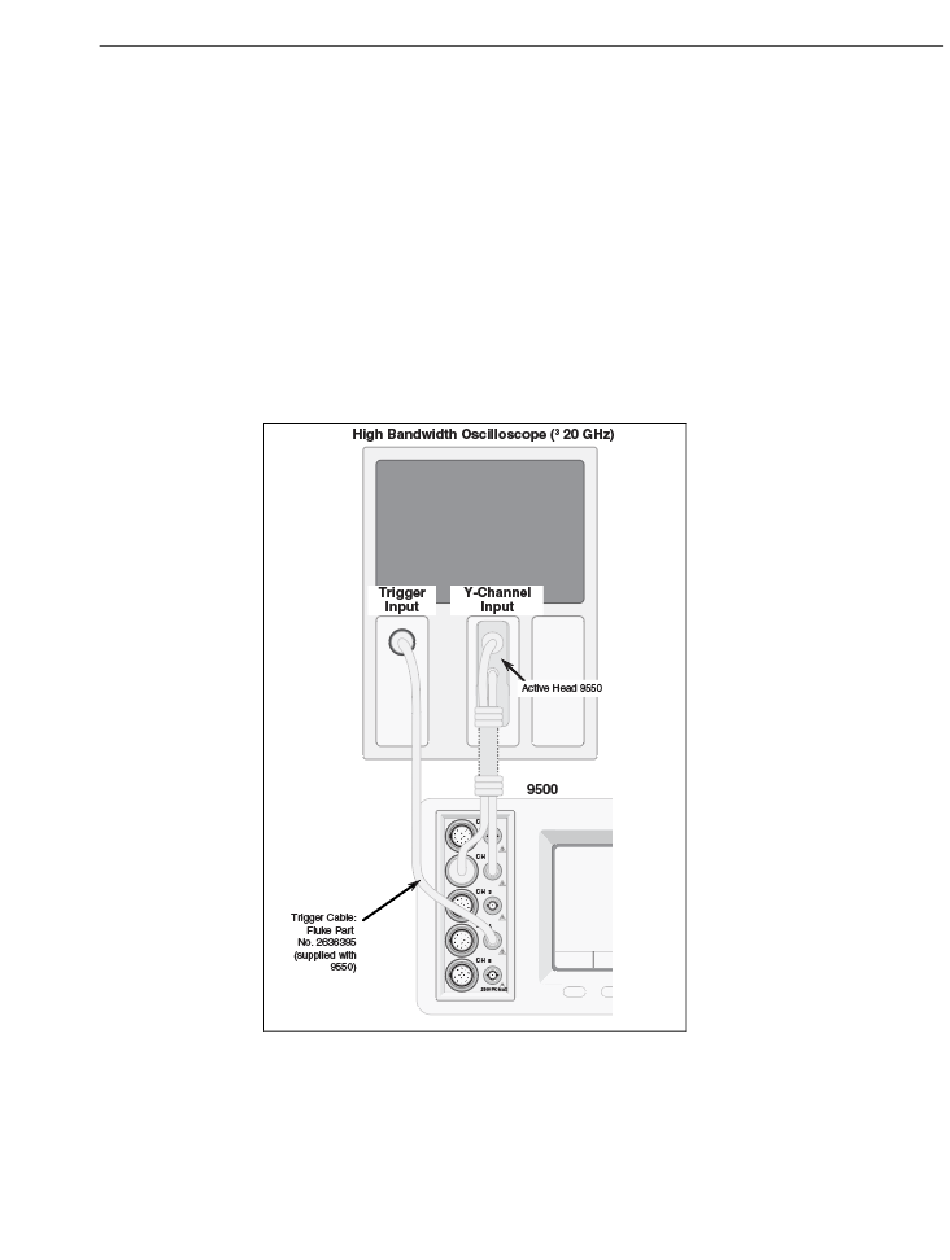

Figure 21. 25 ps Edge Function Calibration — Interconnections
High Performance Oscilloscope Calibrator
9510/9530/9550/9560 Head Calibration Procedures
