9500B
Calibration Manual
Interconnections
Calibration Setup
1.
2.
Calibration Procedure
1. Starting at Cal Range 1, calibrate at all calibration points listed in Table 21 by
2. Select the required 9500B hardware configuration by choosing the appropriate Cal
112

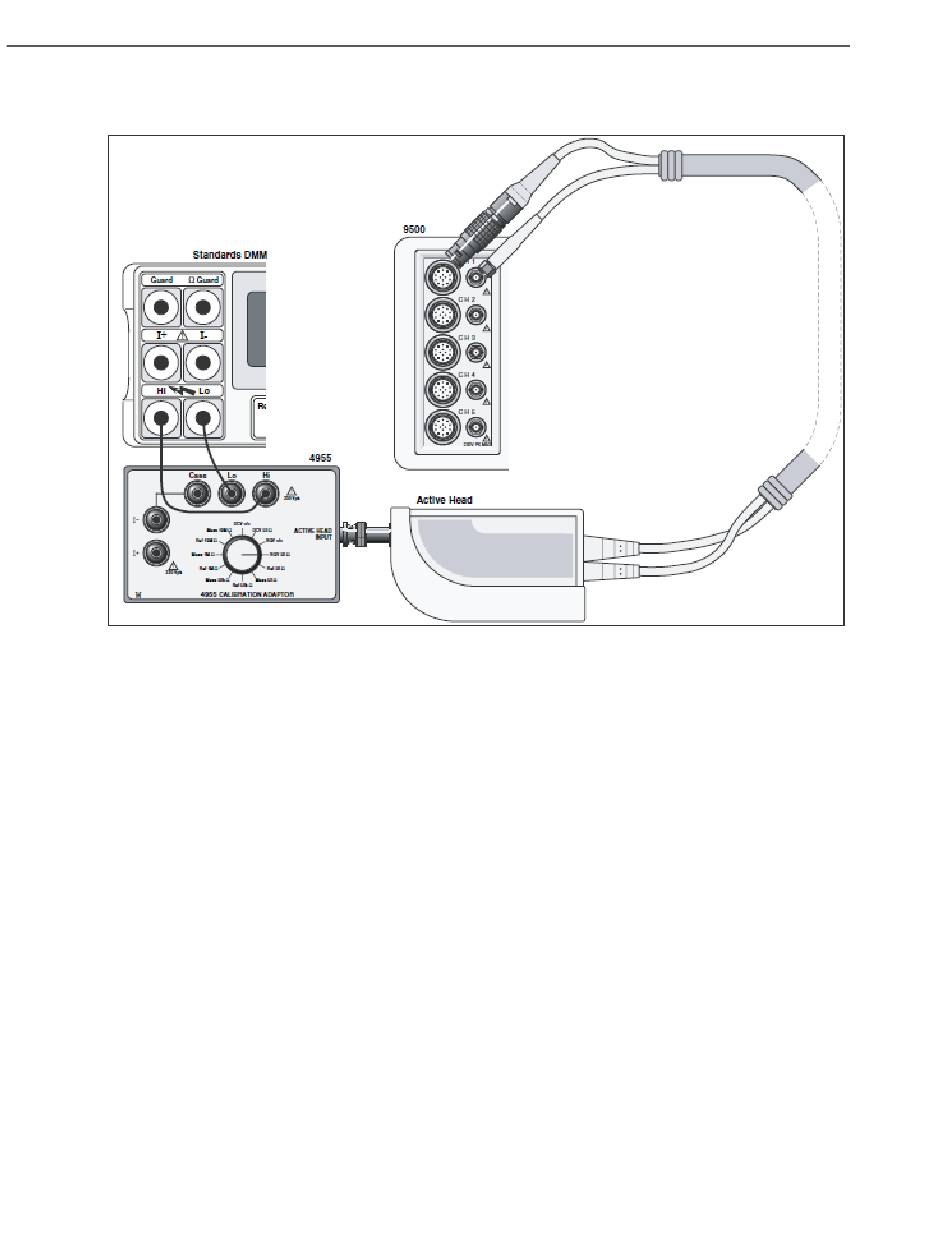

Figure 16. LF Sine Function Calibration — Interconnections
Connections:
Ensure that the 9500B is connected to the Standards DMM
as shown in Figure 16, or via a similar BNC-4 mm adaptor
and 50 Ω load, and that both instruments are powered on
and warmed up.
9500B:
Ensure that the 9500B is in BASE CAL mode and then
select the LF Sine function (From entry default, in the
Target Selection screen, press the Χ key on the right of the
Front Panel). Select the required output Signal Channel
(50 Ω Load), trigger channel and Trigger Ratio (if
required) via the Target Selection screen.
performing operations (2) to (13) below.
Range.
