2
BEFORE USING

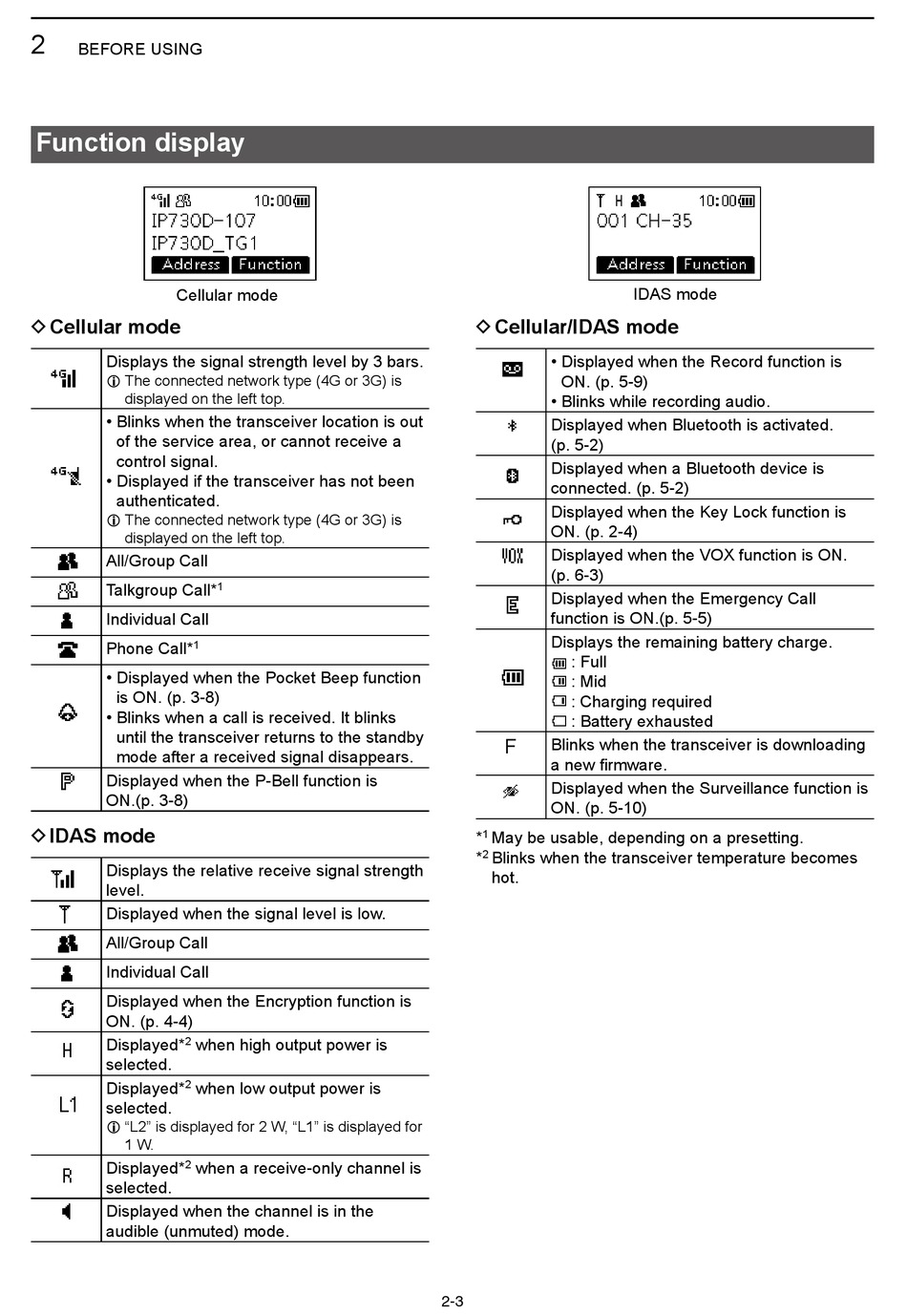

Function display

Cellular mode

D Cellular mode

Displays the signal strength level by 3 bars�
L The connected network type (4G or 3G) is
displayed on the left top�
• Blinks when the transceiver location is out
of the service area, or cannot receive a
control signal�
• Displayed if the transceiver has not been
authenticated�
L The connected network type (4G or 3G) is
displayed on the left top�
All/Group Call
Talkgroup Call*
Individual Call
Phone Call*
1
• Displayed when the Pocket Beep function
is ON� (p� 3-8)
• Blinks when a call is received� It blinks
until the transceiver returns to the standby
mode after a received signal disappears�
Displayed when the P-Bell function is
ON�(p� 3-8)

D IDAS mode

Displays the relative receive signal strength
level�
Displayed when the signal level is low�
All/Group Call
Individual Call
Displayed when the Encryption function is
ON� (p� 4-4)
Displayed* 2 when high output power is
selected�
Displayed* 2 when low output power is
selected�
L "L2" is displayed for 2 W, "L1" is displayed for
1 W�
Displayed* when a receive-only channel is
2
selected�
Displayed when the channel is in the
audible (unmuted) mode�
1

D Cellular/IDAS mode

• Displayed when the Record function is
ON� (p� 5-9)
• Blinks while recording audio�
Displayed when Bluetooth is activated�
(p� 5-2)
Displayed when a Bluetooth device is
connected� (p� 5-2)
Displayed when the Key Lock function is
ON� (p� 2-4)
Displayed when the VOX function is ON�
(p� 6-3)
Displayed when the Emergency Call
function is ON�(p� 5-5)
Displays the remaining battery charge�
: Full
: Mid
: Charging required
: Battery exhausted
F Blinks when the transceiver is downloading
a new firmware.
Displayed when the Surveillance function is
ON� (p� 5-10)
* 1 May be usable, depending on a presetting�
* 2 Blinks when the transceiver temperature becomes
hot�
2-3
IDAS mode
