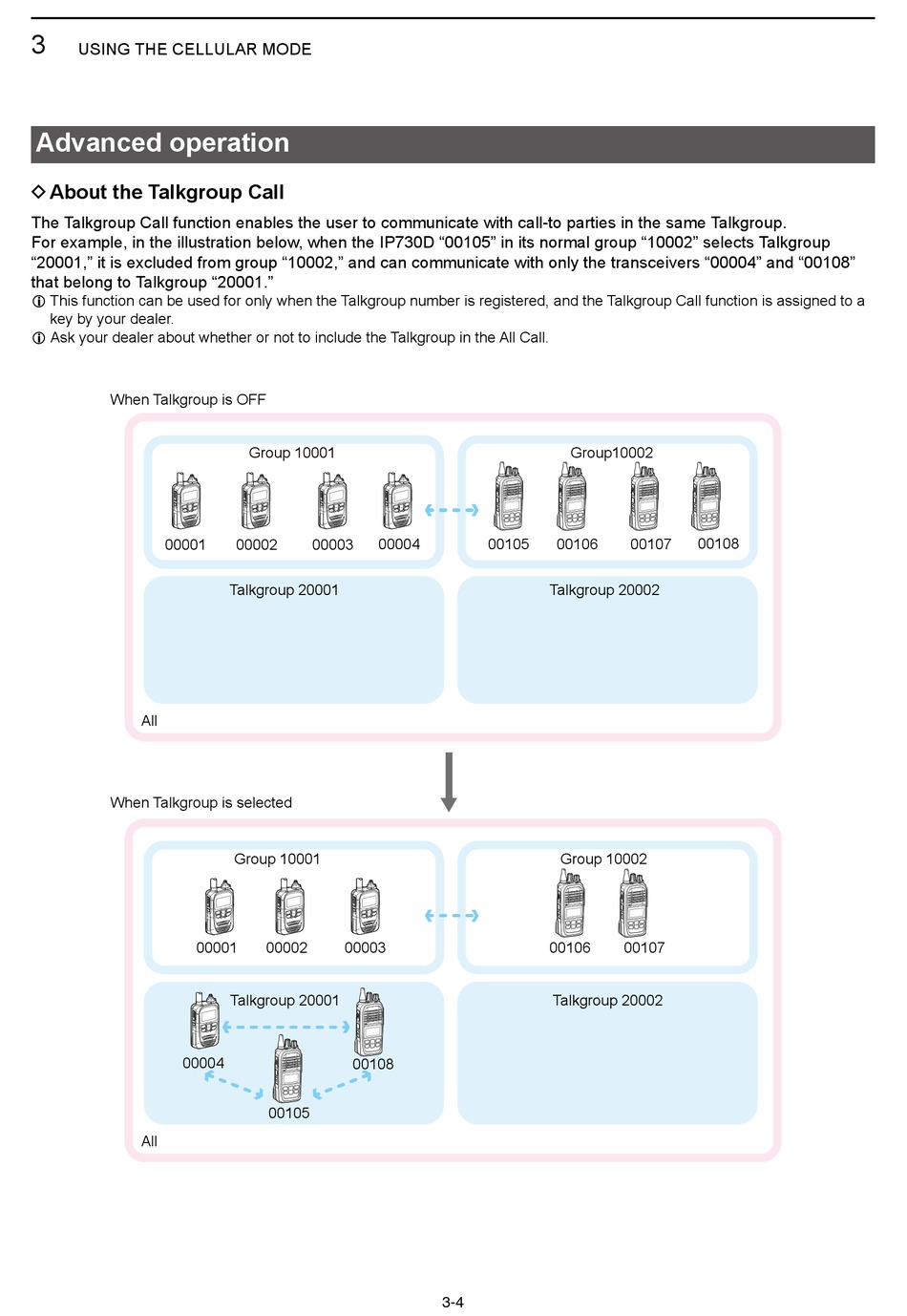

Advanced Operation; D About The Talkgroup Call - Icom IP730D Instruction Manual

3
USING THE CELLULAR MODE

Advanced operation

D About the Talkgroup Call

The Talkgroup Call function enables the user to communicate with call-to parties in the same Talkgroup�
For example, in the illustration below, when the IP730D "00105" in its normal group "10002" selects Talkgroup
"20001," it is excluded from group "10002," and can communicate with only the transceivers "00004" and "00108"
that belong to Talkgroup "20001�"
L This function can be used for only when the Talkgroup number is registered, and the Talkgroup Call function is assigned to a
key by your dealer�
L Ask your dealer about whether or not to include the Talkgroup in the All Call�
When Talkgroup is OFF
00001
All
When Talkgroup is selected
00001
00004
All
Group 10001
00002 00003 00004
Talkgroup 20001
Group 10001
00002 00003
Talkgroup 20001
00108
00105
Group10002
00105 00106
Talkgroup 20002
Group 10002
00106
Talkgroup 20002
3-4
00108
00107
00107
