D General; D 4G (Lte)/3G (W-Cdma); D Idas - Icom IP730D Instruction Manual

7
FOR YOUR REFERENCE

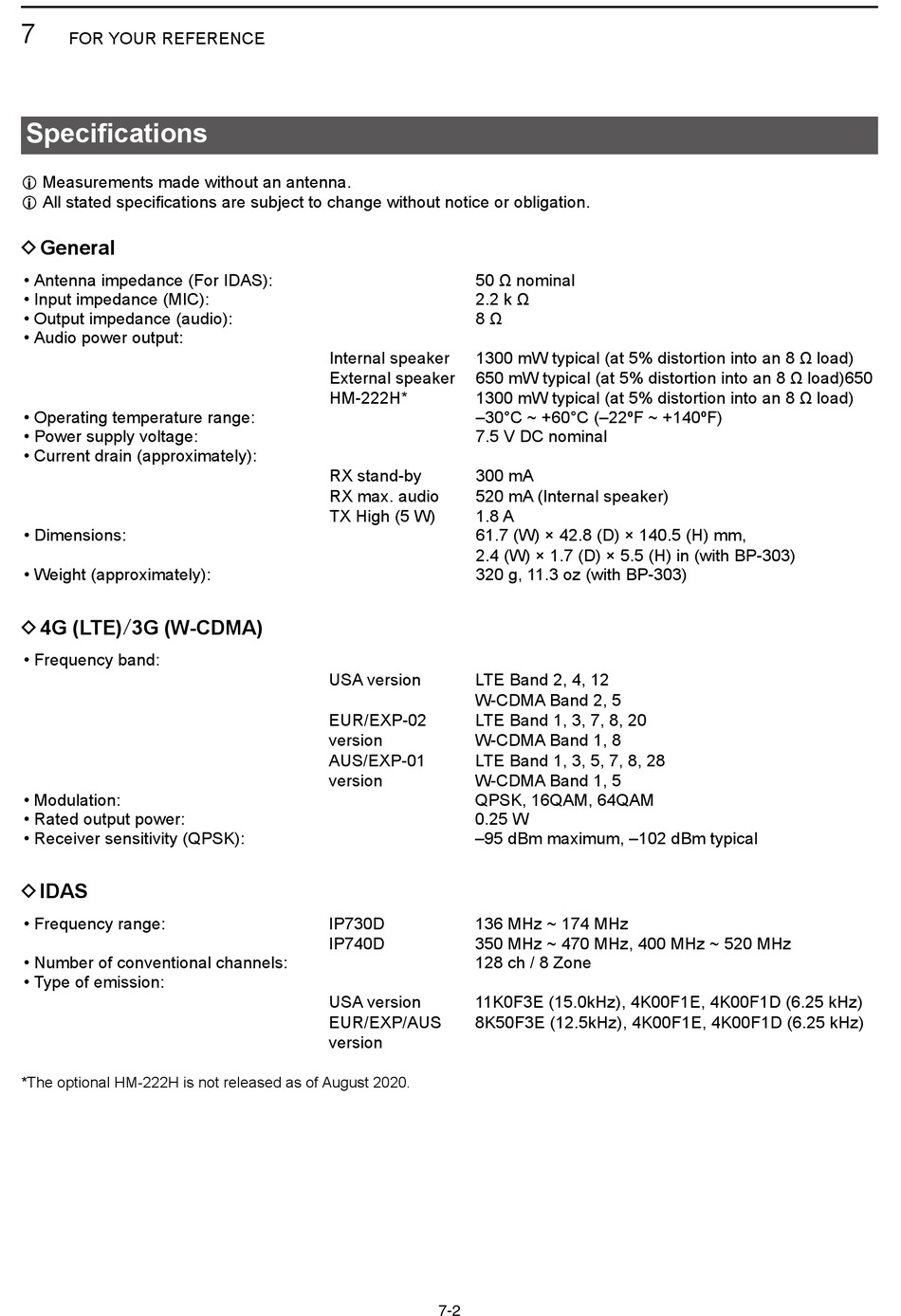

Specifications
L Measurements made without an antenna�
L All stated specifications are subject to change without notice or obligation�

D General

• Antenna impedance (For IDAS):
• Input impedance (MIC):
• Output impedance (audio):
• Audio power output:
• Operating temperature range:
• Power supply voltage:
• Current drain (approximately):
• Dimensions:
• Weight (approximately):

D 4G (LTE)/3G (W-CDMA)

• Frequency band:
• Modulation:
• Rated output power:
• Receiver sensitivity (QPSK):

D IDAS

• Frequency range:
• Number of conventional channels:
• Type of emission:
*The optional HM-222H is not released as of August 2020�
50 Ω nominal
2�2 k Ω
8 Ω
Internal speaker 1300 mW typical (at 5% distortion into an 8 Ω load)
External speaker 650 mW typical (at 5% distortion into an 8 Ω load)650
HM-222H* 1300 mW typical (at 5% distortion into an 8 Ω load)
–30°C ~ +60°C (–22ºF ~ +140ºF)
7�5 V DC nominal
RX stand-by 300 mA
RX max� audio 520 mA (Internal speaker)
TX High (5 W) 1�8 A
61�7 (W) × 42�8 (D) × 140�5 (H) mm,
2�4 (W) × 1�7 (D) × 5�5 (H) in (with BP-303)
320 g, 11�3 oz (with BP-303)
USA version LTE Band 2, 4, 12
W-CDMA Band 2, 5
EUR/EXP-02 LTE Band 1, 3, 7, 8, 20
version W-CDMA Band 1, 8
AUS/EXP-01 LTE Band 1, 3, 5, 7, 8, 28
version W-CDMA Band 1, 5
QPSK, 16QAM, 64QAM
0�25 W
–95 dBm maximum, –102 dBm typical
IP730D 136 MHz ~ 174 MHz
IP740D 350 MHz ~ 470 MHz, 400 MHz ~ 520 MHz
128 ch / 8 Zone
USA version 11K0F3E (15�0kHz), 4K00F1E, 4K00F1D (6�25 kHz)
EUR/EXP/AUS 8K50F3E (12�5kHz), 4K00F1E, 4K00F1D (6�25 kHz)
version
7-2
