1

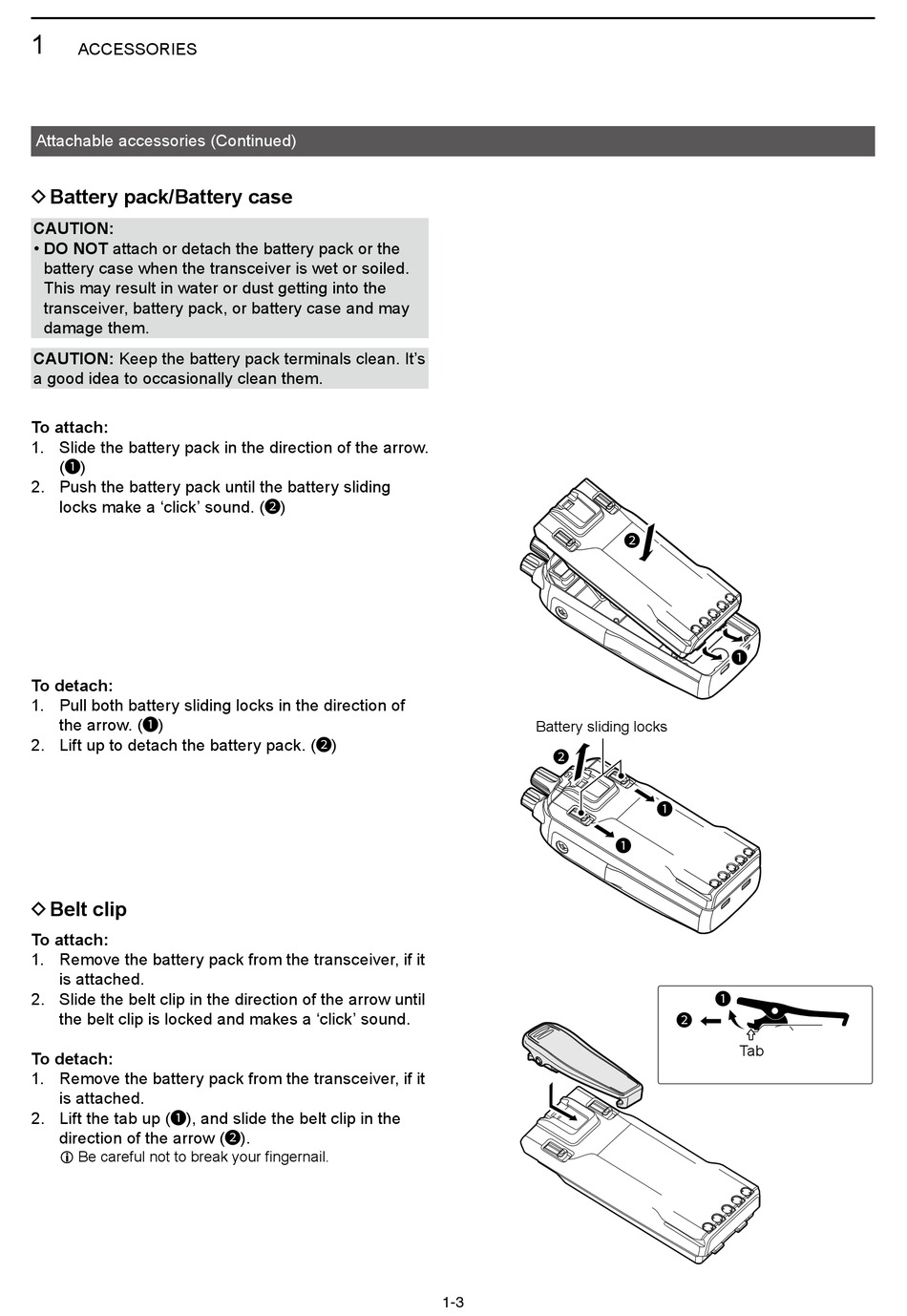

ACCESSORIES
Attachable accessories (Continued)
D Battery pack/Battery case
CAUTION:
• DO NOT attach or detach the battery pack or the
battery case when the transceiver is wet or soiled
This may result in water or dust getting into the
transceiver, battery pack, or battery case and may
damage them
CAUTION: Keep the battery pack terminals clean It's
a good idea to occasionally clean them
To attach:
1 Slide the battery pack in the direction of the arrow
(1)
2 Push the battery pack until the battery sliding
locks make a 'click' sound (2)
To detach:
1 Pull both battery sliding locks in the direction of
the arrow (1)
2 Lift up to detach the battery pack (2)
D Belt clip
To attach:
1 Remove the battery pack from the transceiver, if it
is attached
2 Slide the belt clip in the direction of the arrow until
the belt clip is locked and makes a 'click' sound
To detach:
1 Remove the battery pack from the transceiver, if it
is attached
2 Lift the tab up (1), and slide the belt clip in the
direction of the arrow (2)
L Be careful not to break your fingernail.
Battery sliding locks
2
1-3
2
1
1
1
1
2
Tab
