4
USING THE IDAS MODE

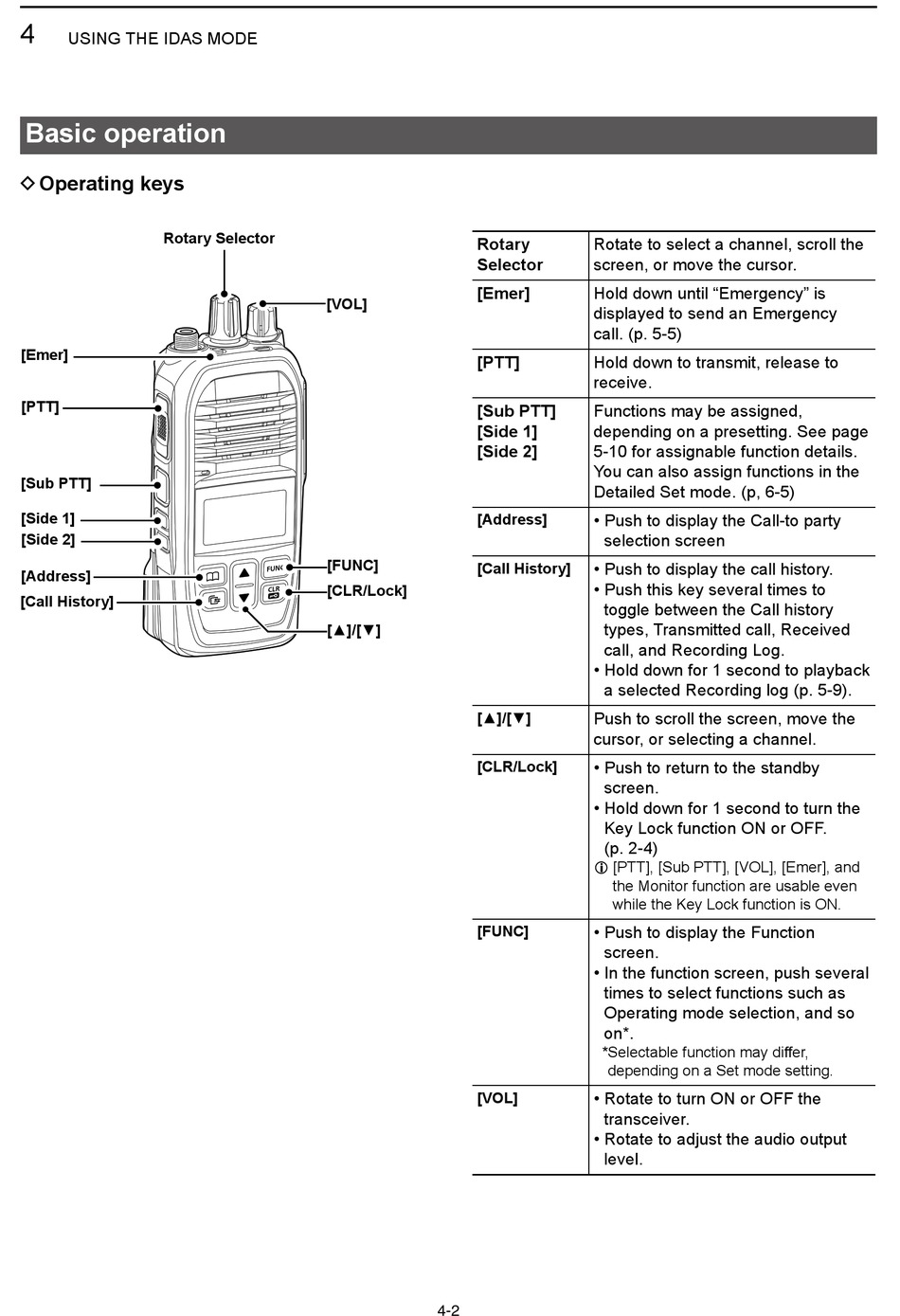

Basic operation

D Operating keys

Rotary Selector
[Emer]
[PTT]
[Sub PTT]
[Side 1]
[Side 2]
[Address]
[Call History]
Rotary
Selector
[Emer]
[VOL]
[PTT]
[Sub PTT]
[Side 1]
[Side 2]
[Address]
[FUNC]
[Call History]
[CLR/Lock]
[▲]/[▼]
[▲]/[▼]
[CLR/Lock]
[FUNC]
[VOL]
4-2
Rotate to select a channel, scroll the
screen, or move the cursor�
Hold down until "Emergency" is
displayed to send an Emergency
call� (p� 5-5)
Hold down to transmit, release to
receive�
Functions may be assigned,
depending on a presetting� See page
5-10 for assignable function details�
You can also assign functions in the
Detailed Set mode� (p, 6-5)
• Push to display the Call-to party
selection screen
• Push to display the call history�
• Push this key several times to
toggle between the Call history
types, Transmitted call, Received
call, and Recording Log�
• Hold down for 1 second to playback
a selected Recording log (p� 5-9)�
Push to scroll the screen, move the
cursor, or selecting a channel�
• Push to return to the standby
screen�
• Hold down for 1 second to turn the
Key Lock function ON or OFF�
(p� 2-4)
L [PTT], [Sub PTT], [VOL], [Emer], and
the Monitor function are usable even
while the Key Lock function is ON�
• Push to display the Function
screen�
• In the function screen, push several
times to select functions such as
Operating mode selection, and so
on*�
* Selectable function may differ,
depending on a Set mode setting�
• Rotate to turn ON or OFF the
transceiver�
• Rotate to adjust the audio output
level�
