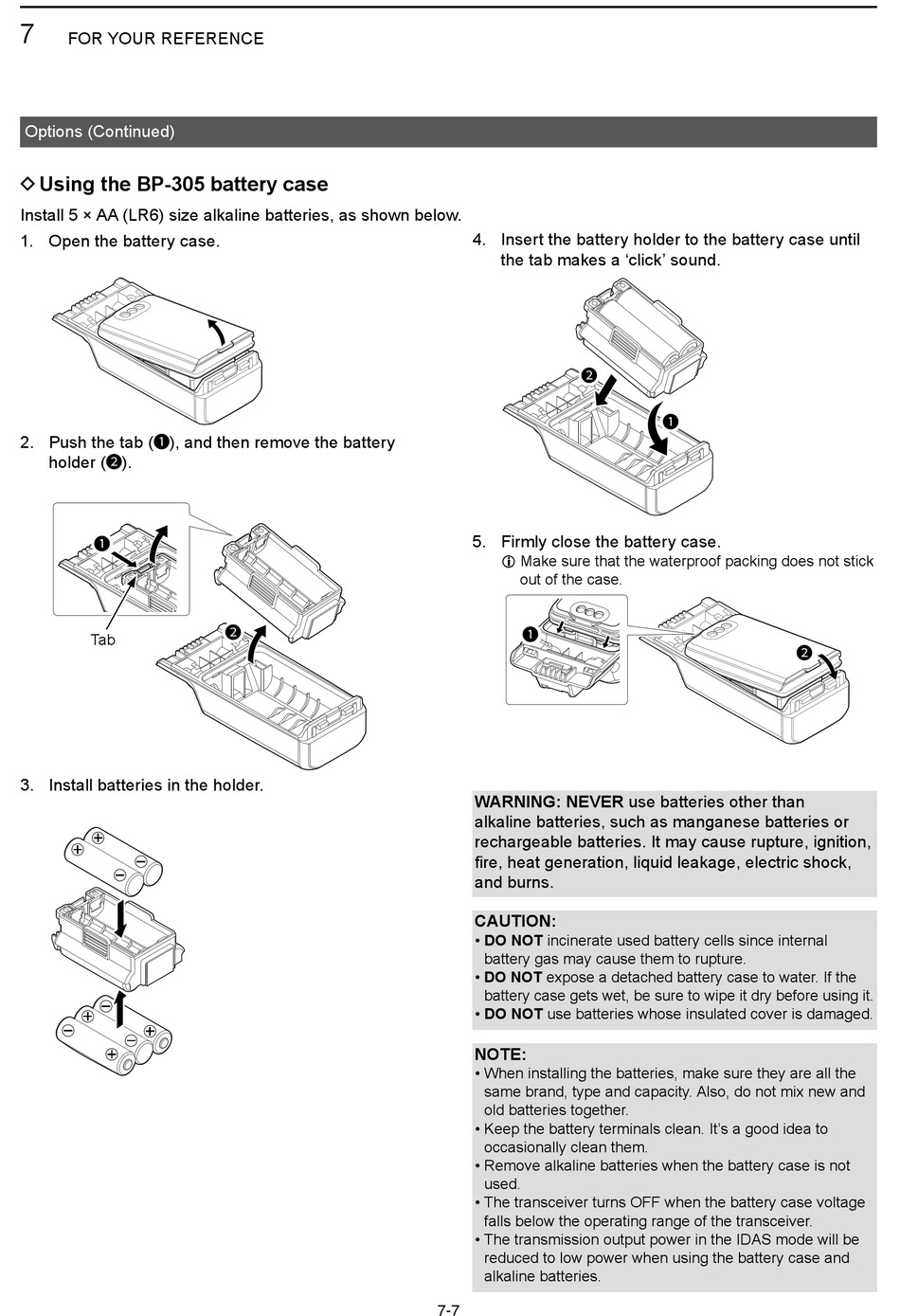

D Using The Bp-305 Battery Case - Icom IP730D Instruction Manual

7
FOR YOUR REFERENCE
Options (Continued)

D Using the BP-305 battery case

Install 5 × AA (LR6) size alkaline batteries, as shown below�
1� Open the battery case�
2� Push the tab (1), and then remove the battery
holder (2)�
1
Tab
3� Install batteries in the holder�
2
4� Insert the battery holder to the battery case until
the tab makes a 'click' sound�
2
5� Firmly close the battery case�
L Make sure that the waterproof packing does not stick
out of the case�
1
WARNING: NEVER use batteries other than
alkaline batteries, such as manganese batteries or
rechargeable batteries� It may cause rupture, ignition,
fire, heat generation, liquid leakage, electric shock,
and burns�
CAUTION:
• DO NOT incinerate used battery cells since internal
battery gas may cause them to rupture�
• DO NOT expose a detached battery case to water� If the
battery case gets wet, be sure to wipe it dry before using it�
• DO NOT use batteries whose insulated cover is damaged�
NOTE:
• When installing the batteries, make sure they are all the
same brand, type and capacity� Also, do not mix new and
old batteries together�
• Keep the battery terminals clean� It's a good idea to
occasionally clean them�
• Remove alkaline batteries when the battery case is not
used�
• The transceiver turns OFF when the battery case voltage
falls below the operating range of the transceiver�
• The transmission output power in the IDAS mode will be
reduced to low power when using the battery case and
alkaline batteries�
7-7
