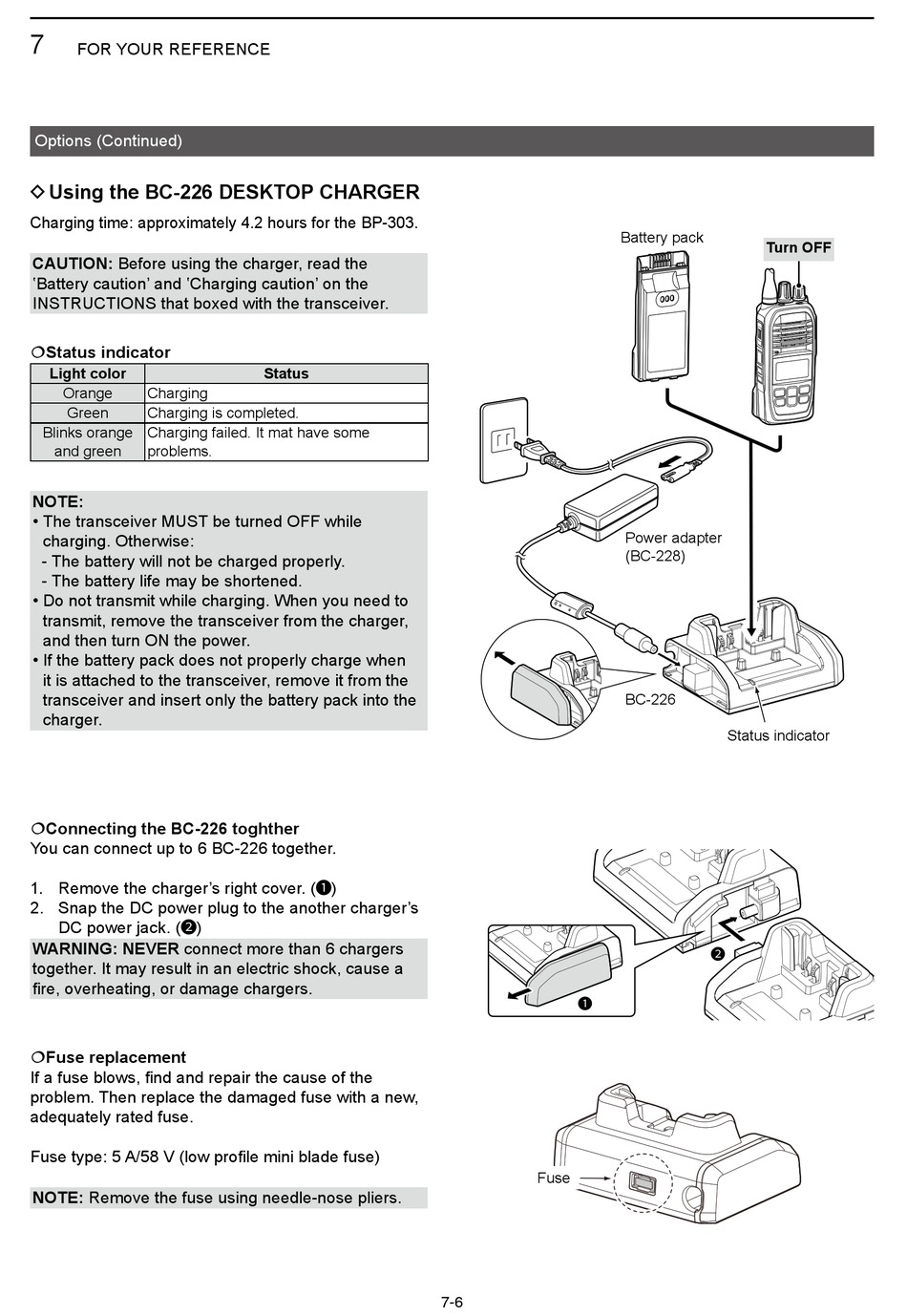

D Using the BC-226 DESKTOP CHARGER

Charging time: approximately 4�2 hours for the BP-303�
CAUTION: Before using the charger, read the
‛Battery caution' and ‛Charging caution' on the
INSTRUCTIONS that boxed with the transceiver�
Status indicator
Light color
Orange Charging
Green Charging is completed�
Blinks orange Charging failed� It mat have some
and green problems�
NOTE:
• The transceiver MUST be turned OFF while
charging� Otherwise:
- The battery will not be charged properly�
- The battery life may be shortened�
• Do not transmit while charging� When you need to
transmit, remove the transceiver from the charger,
and then turn ON the power�
• If the battery pack does not properly charge when
it is attached to the transceiver, remove it from the
transceiver and insert only the battery pack into the
charger�
Connecting the BC-226 toghther
You can connect up to 6 BC-226 together�
1� Remove the charger's right cover� (1)
2� Snap the DC power plug to the another charger's
DC power jack� (2)
WARNING: NEVER connect more than 6 chargers
together� It may result in an electric shock, cause a
fire, overheating, or damage chargers�
Fuse replacement
If a fuse blows, find and repair the cause of the
problem� Then replace the damaged fuse with a new,
adequately rated fuse�
Fuse type: 5 A/58 V (low profile mini blade fuse)
NOTE: Remove the fuse using needle-nose pliers�
Status
1
Fuse
7-6
Battery pack
Turn OFF
Power adapter
(BC-228)
BC-226
Status indicator
2
