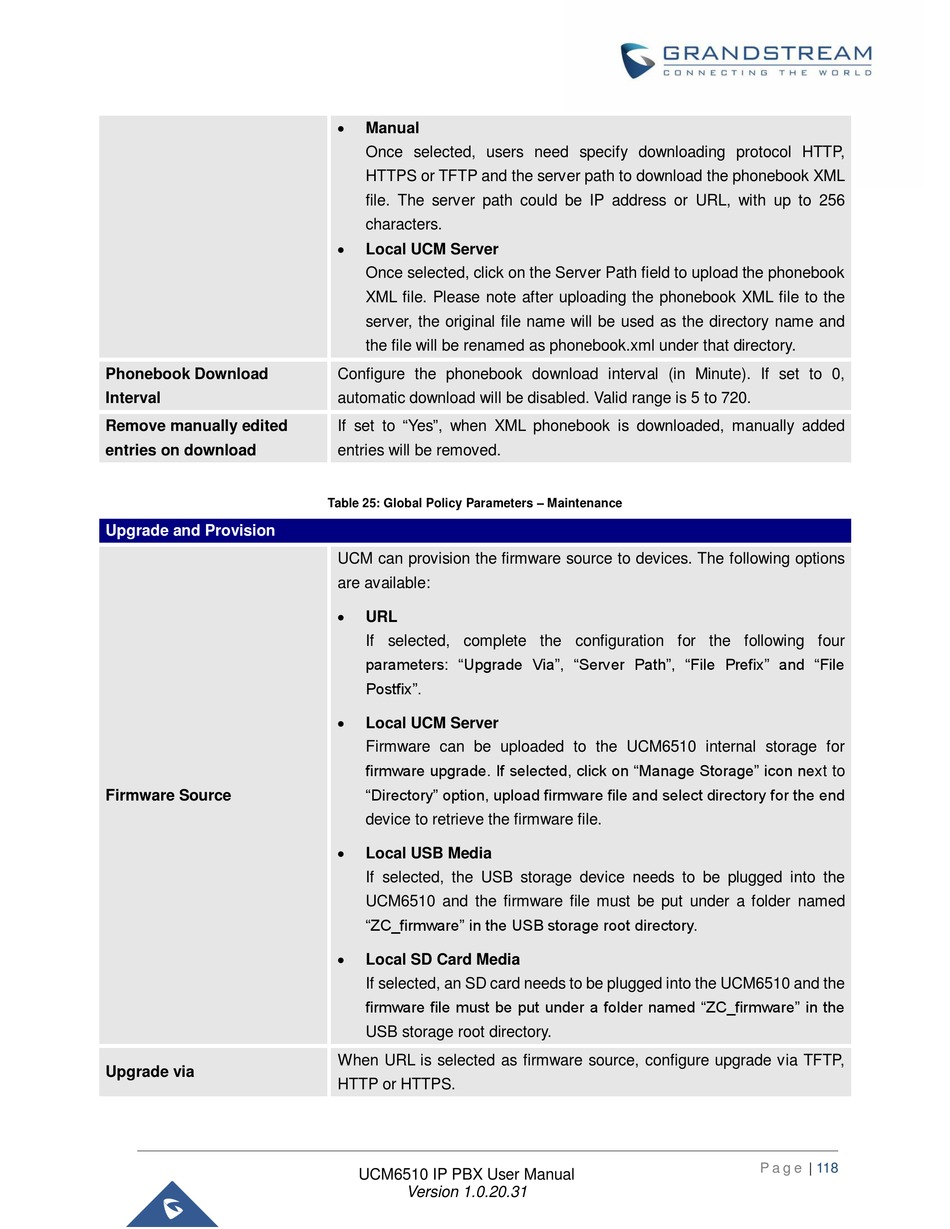

Table 25: Global Policy Parameters - Maintenance - Grandstream Networks UCM6510 User Manual

Phonebook Download
Interval
Remove manually edited
entries on download
Upgrade and Provision
Firmware Source
Upgrade via

Manual
Once selected, users need specify downloading protocol HTTP,
HTTPS or TFTP and the server path to download the phonebook XML
file. The server path could be IP address or URL, with up to 256
characters.

Local UCM Server
Once selected, click on the Server Path field to upload the phonebook
XML file. Please note after uploading the phonebook XML file to the
server, the original file name will be used as the directory name and
the file will be renamed as phonebook.xml under that directory.
Configure the phonebook download interval (in Minute). If set to 0,
automatic download will be disabled. Valid range is 5 to 720.
If set to "Yes", when XML phonebook is downloaded, manually added
entries will be removed.
Table 25: Global Policy Parameters – Maintenance
UCM can provision the firmware source to devices. The following options
are available:

URL
If selected, complete the configuration for the following four
parameters: "Upgrade Via", "Server Path", "File Prefix" and "File
Postfix".

Local UCM Server
Firmware can be uploaded to the UCM6510 internal storage for
firmware upgrade. If selected, click on "Manage Storage" icon next to
"Directory" option, upload firmware file and select directory for the end
device to retrieve the firmware file.

Local USB Media
If selected, the USB storage device needs to be plugged into the
UCM6510 and the firmware file must be put under a folder named
"ZC_firmware" in the USB storage root directory.

Local SD Card Media
If selected, an SD card needs to be plugged into the UCM6510 and the
firmware file must be put under a folder named "ZC_firmware" in the
USB storage root directory.
When URL is selected as firmware source, configure upgrade via TFTP,
HTTP or HTTPS.
UCM6510 IP PBX User Manual
Version 1.0.20.31
P a g e | 118
