IAX2/NUM-XXXXXXX: it means this is an IAX call.
Local/@from-internal-XXXXX: it is used internally to do some special feature procedure. We can simply
ignore it.
Hangup: the call is hung up from the dial plan. This indicates there are some errors, or it has run into
abnormal cases.
Playback: play some prompts to you, such as 183 response or run into an IVR.
ReadExten: collect numbers from user. It may occur when you input PIN codes or run into DISA.

CDR Export Customization

Users can select the data they want to see in exported CDR reports by first clicking on the Filter button on
the CDR page under CDRCDR and selecting the desired information in the Export File Data field.

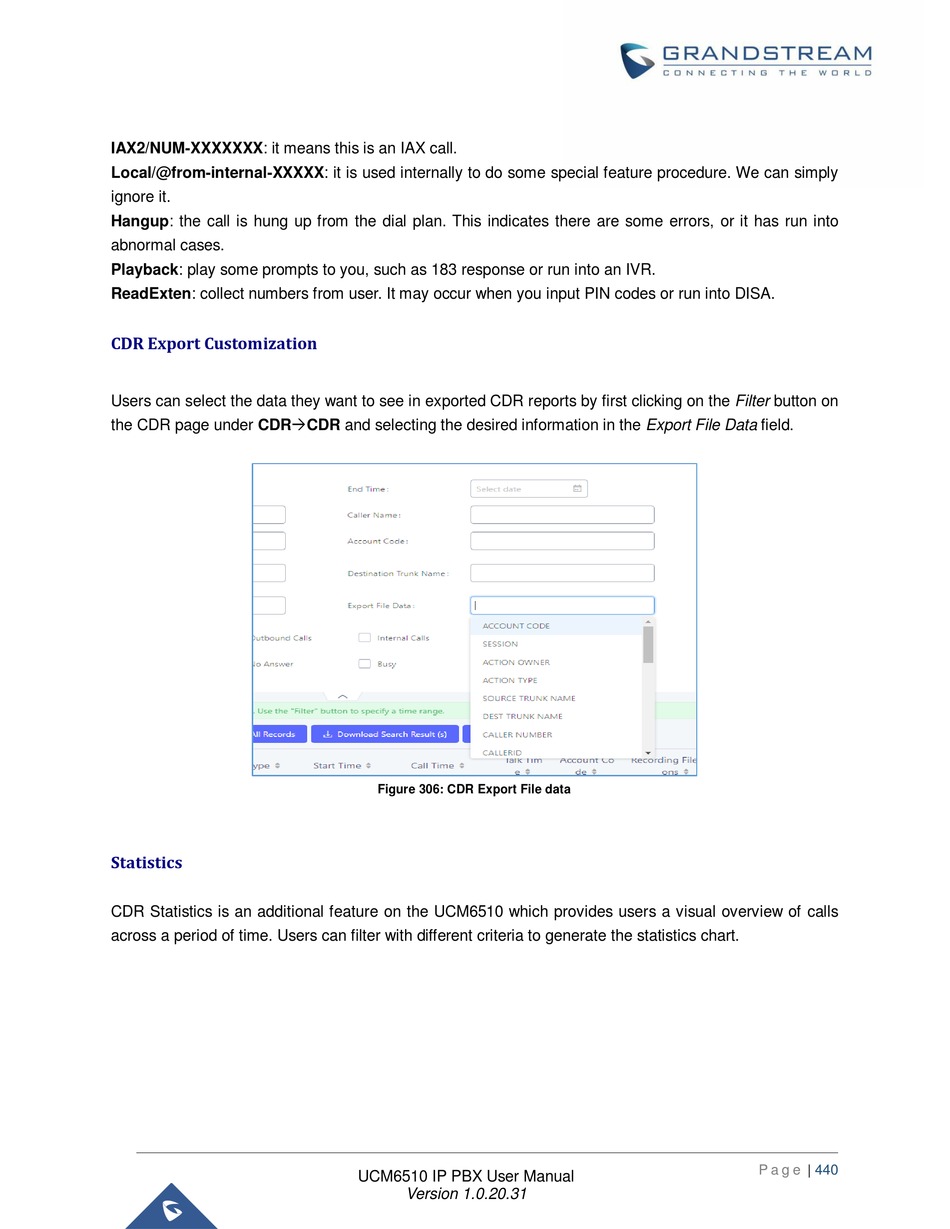

Figure 306: CDR Export File data

Statistics

CDR Statistics is an additional feature on the UCM6510 which provides users a visual overview of calls
across a period of time. Users can filter with different criteria to generate the statistics chart.
