Network Troubleshooting

The Network Troubleshooting page under Maintenance allows users to start network captures and
ping/traceroute remote hosts.

Ethernet Capture

Captured traces can be downloaded for analysis.
Interface Type
Enable SFTP Data Sync
Capture Filter
Save to External Storage
Start
Stop
Download
The output result is in .tgz format, and users will need to use a compression tool such as WinRAR or 7-zip
to unzip the .pcap file.
Note: Capture files saved on external devices will not have "capture" prepended to file names.

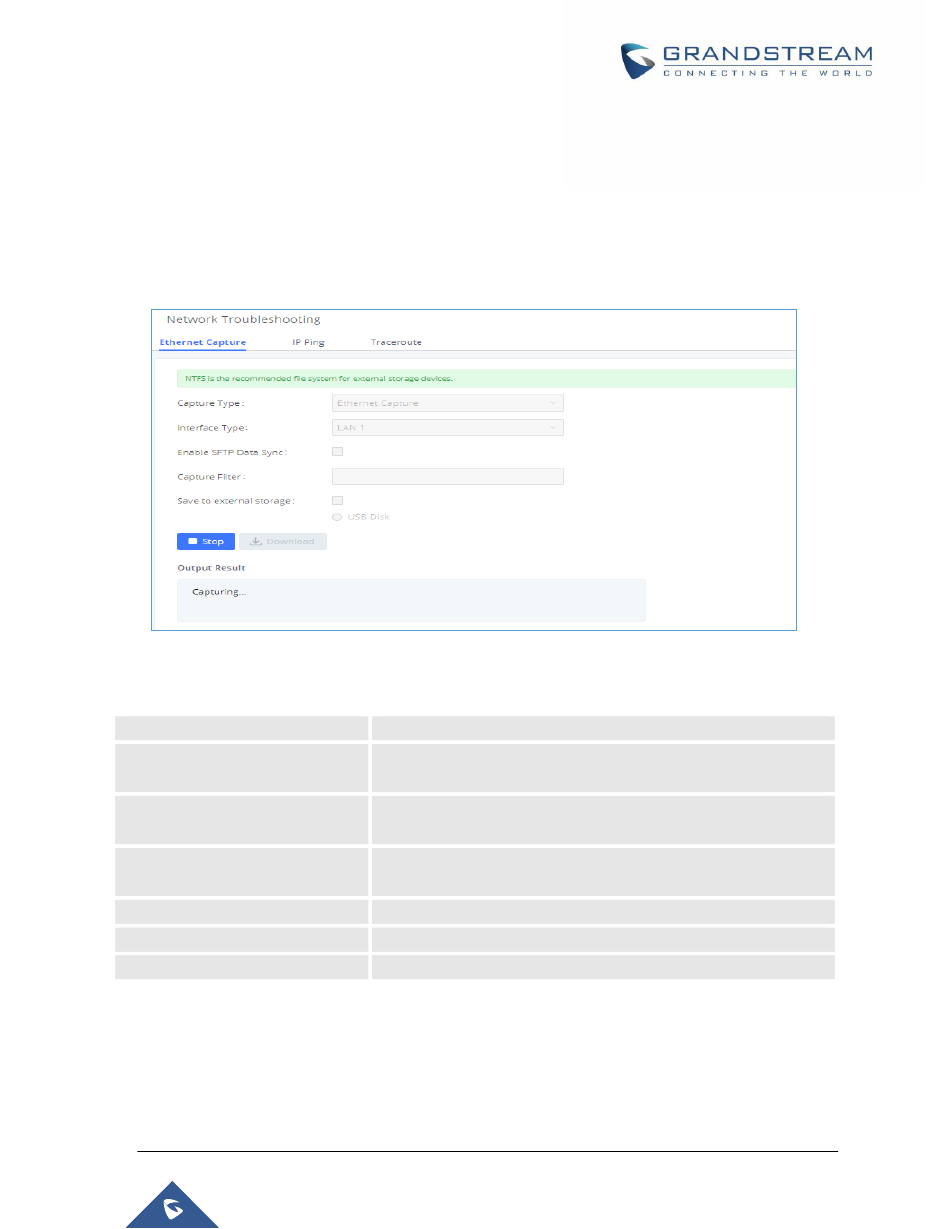

Figure 339: Ethernet Capture

Table 161: Ethernet Capture

Select the network interface to monitor.
Check this box to save the capture files in the SFTP server. Please
make sure the configuration of data synchronization works before.
Enter the filter to obtain the specific types of traffic, such as (host,
src, dst, net, proto...).
Check this box to activate storage of the capture either on the USB
or SD Card.
Click to start the trace.
Click to stop the trace.
Click to download the trace if trace is stored locally.
