Flexible Io- Usb3.0X2 & Comx2(Rs232/422/485) & Lan(Ax93519) - AXIOMTEK IPC950 User Manual

IPC950 user's Manual
1.8.22 Flexible IO- USB3.0x2 & COMx2(RS232/422/485) &
LAN(AX93519)
The system has an optional module to support two USB 2.0 ports, two
RS232/422/485, and one Gigabit LAN. Please refer to Chapter 4 for the details of
BIOS settings.
➢

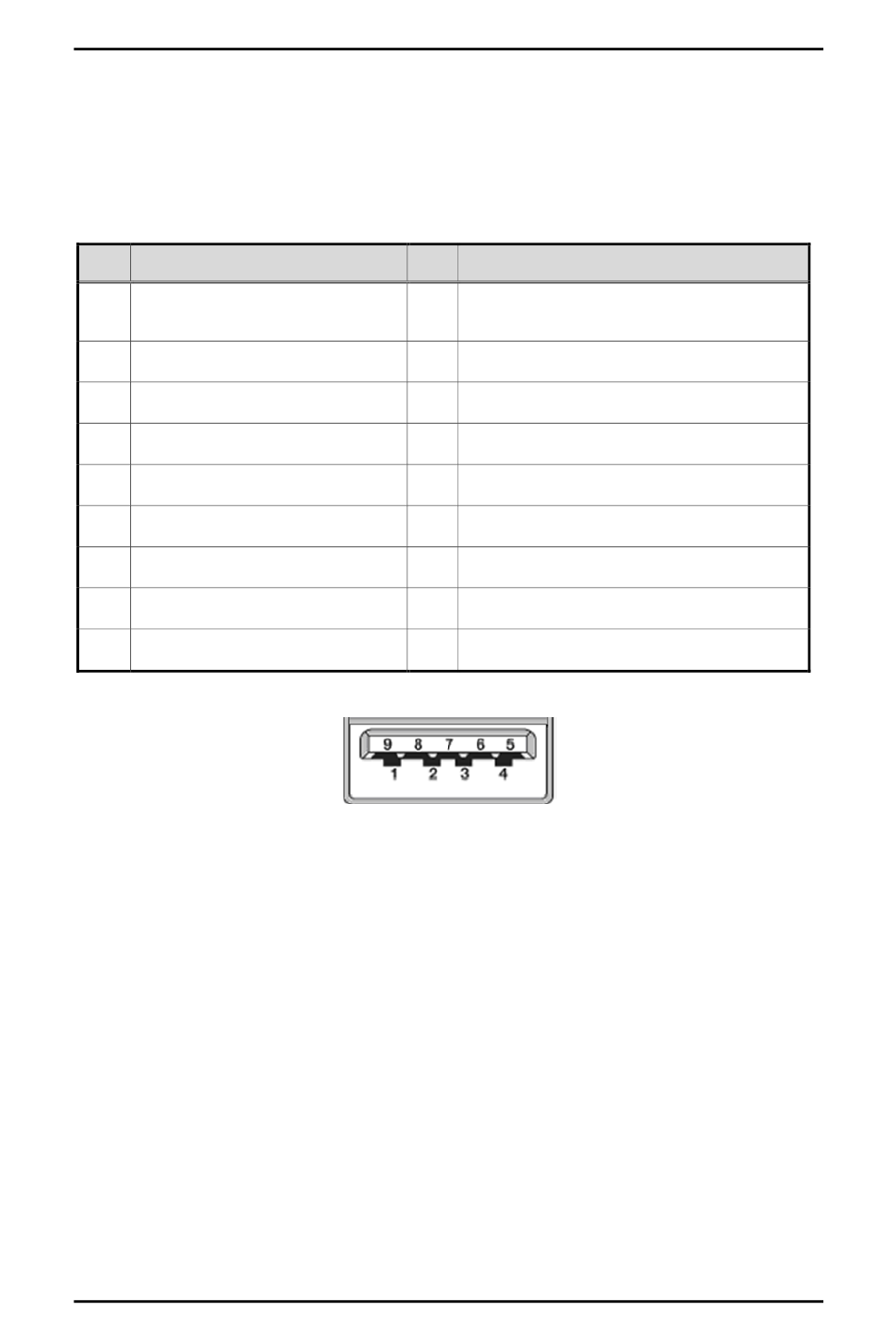

AX93519 2 x RS232/422/485 + 1 GE LAN(i211AT) + 2 USB 2.0
Pins Signal USB Port 0
USB_VCC (+5V level standby
1
power)
2 USB_Data2-
3 USB_Data2+
4 GND
5 Reserve
6 Reserve
7 GND
8 Reserve
9 Reserve
34
Pins Signal USB Port 1
USB_VCC (+5V level standby power)
1
2 USB_Data3-
3 USB_Data3+
4 GND
5
Reserve
6
Reserve
7 GND
8
Reserve
9
Reserve
