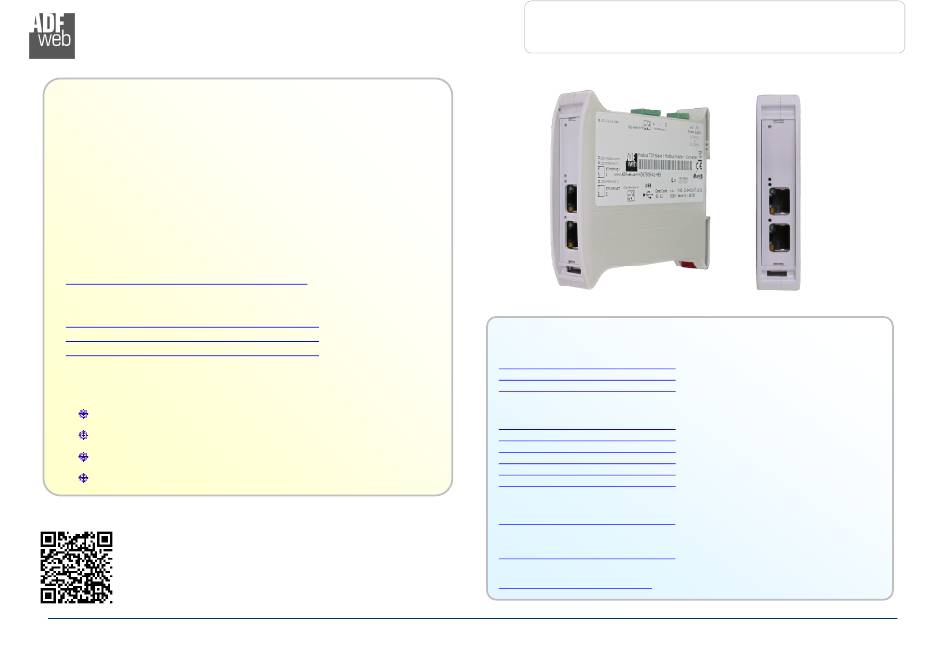

Industrial Electronic Devices
User Manual
Revision 1.100
English
Modbus TCP Slave / Modbus Master – Converter
(Ethernet Switch Inside for enter/exit connection)
(Order Code: HD67508-A1-232, HD67508-A1-485,
HD67508-A1-422)
for Website information:
www.adfweb.com?Product=HD67508-A1
for Price information:
www.adfweb.com?Price=HD67508-A1-232
www.adfweb.com?Price=HD67508-A1-485
www.adfweb.com?Price=HD67508-A1-422
Benefits and Main Features:
35mm Rail DIN mount
Wide supply input range
Two Ethernet ports
Temperature range: -40°C/+85°C (-40°F/+185°F)
User Manual
ADFweb.com S.r.l.
User Manual Modbus TCP Slave / Modbus Master
Document code: MN67508_ENG
For others products, see also the following links:
RS232 / RS485 / USB / Ethernet
www.adfweb.com?Product=HD67118
www.adfweb.com?Product=HD67119
www.adfweb.com?Product=HD67038
CAN / CANopen / Modbus / Modbus TCP
www.adfweb.com?Product=HD67001
www.adfweb.com?Product=HD67502
www.adfweb.com?Product=HD67011
www.adfweb.com?Product=HD67012
www.adfweb.com?Product=HD67514
www.adfweb.com?Product=HD67515
Modbus RTU Slave / Modbus TCP Master - Converter
www.adfweb.com?Product=HD67510
Do you have your customer protocol? Then go to:
www.adfweb.com?Product=HD67003
Do you need to choose a device? Do you want help?
www.adfweb.com?Cmd=helpme
Revision 1.100
Page 1 of 28
(RS232 / RS485 - Converter)
(USB / RS485 - Converter)
(RS485 / RS232 / Ethernet - Converter)
(CANopen / Modbus Master - Converter)
(CANopen / Modbus Slave - Converter)
(CAN / Modbus Master - Converter)
(CAN / Modbus Slave - Converter)
(CAN / Modbus TCP Master – Converter)
(CAN / Modbus TCP Slave – Converter)
Advertisement
Table of Contents
Related Manuals for ADF Web HD67508-A1-232
Summary of Contents for ADF Web HD67508-A1-232
- Page 1 Industrial Electronic Devices User Manual Revision 1.100 English Modbus TCP Slave / Modbus Master – Converter (Ethernet Switch Inside for enter/exit connection) (Order Code: HD67508-A1-232, HD67508-A1-485, HD67508-A1-422) for Website information: www.adfweb.com?Product=HD67508-A1 for Price information: www.adfweb.com?Price=HD67508-A1-232 For others products, see also the following links: www.adfweb.com?Price=HD67508-A1-485...
-
Page 2: Table Of Contents
User Manual Modbus TCP Slave / Modbus Master Document code: MN67508_ENG Revision 1.100 Page 2 of 28 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Page Dear customer, we thank you for your attention and we remind you that INDEX you need to check that the following document is: UPDATED DOCUMENTATION REVISION LIST Updated... -
Page 3: Security Alert
User Manual Modbus TCP Slave / Modbus Master Document code: MN67508_ENG Revision 1.100 Page 3 of 28 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and safety regulation are required for each individual application. -
Page 4: Examples Of Connection
User Manual Modbus TCP Slave / Modbus Master Document code: MN67508_ENG Revision 1.100 Page 4 of 28 Industrial Electronic Devices EXAMPLES OF CONNECTION: ADFweb.com S.r.l. -
Page 5: Connection Scheme
User Manual Modbus TCP Slave / Modbus Master Document code: MN67508_ENG Revision 1.100 Page 5 of 28 Industrial Electronic Devices CONNECTION SCHEME: Figure 1a: Connection scheme for HD67508-A1-232 ADFweb.com S.r.l. - Page 6 User Manual Modbus TCP Slave / Modbus Master Document code: MN67508_ENG Revision 1.100 Page 6 of 28 Industrial Electronic Devices Figure 1b: Connection scheme for HD67508-A1-485 ADFweb.com S.r.l.
- Page 7 User Manual Modbus TCP Slave / Modbus Master Document code: MN67508_ENG Revision 1.100 Page 7 of 28 Industrial Electronic Devices Figure 1c: Connection scheme for HD67508-A1-422 ADFweb.com S.r.l.
-
Page 8: Characteristics
User Manual Modbus TCP Slave / Modbus Master Document code: MN67508_ENG Revision 1.100 Page 8 of 28 Industrial Electronic Devices CHARACTERISTICS: The “Modbus TCP Slave / Modbus Master – Converter” allows the following characteristics: Triple isolation between RS232/RS485/RS422 - Power Supply, RS232/RS485/RS422- Ethernet, Power Supply - Ethernet; Internal Ethernet switch;... -
Page 9: Power Supply
User Manual Modbus TCP Slave / Modbus Master Document code: MN67508_ENG Revision 1.100 Page 9 of 28 Industrial Electronic Devices POWER SUPPLY: The devices can be powered at 8…24V AC and 12…35V DC. The consumption depends to the code of the device. For more details see the two tables below. -
Page 10: Function Modes
User Manual Modbus TCP Slave / Modbus Master Document code: MN67508_ENG Revision 1.100 Page 10 of 28 Industrial Electronic Devices FUNCTION MODES: The device has got two functions mode depending of the position of the ‘Dip2 of Dip-Switch A’: The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device. The second, with ‘Dip1 of Dip-Switch A’... -
Page 11: Leds
User Manual Modbus TCP Slave / Modbus Master Document code: MN67508_ENG Revision 1.100 Page 11 of 28 Industrial Electronic Devices LEDS: The devices has got four LEDs that are used to give information of the functioning status. The various meanings of the LEDs are described in the table below. Normal Mode Boot Mode Blinks quickly: Boot state... -
Page 12: Ethernet
User Manual Modbus TCP Slave / Modbus Master Document code: MN67508_ENG Revision 1.100 Page 12 of 28 Industrial Electronic Devices ETHERNET: The Modbus TCP connection must be made using Connector3 and/or Connector4 of HD67508-A1-xxx with at least a Category 5E cable. The maximum length of the cable should not exceed 100m. -
Page 13: Rs485
User Manual Modbus TCP Slave / Modbus Master Document code: MN67508_ENG Revision 1.100 Page 13 of 28 Industrial Electronic Devices RS485: To terminate the RS485 line with a 220Ω resistor, it is necessary to put dip 1 ON, like in figure. The maximum length of the cable should be 1200m (4000 feet). -
Page 14: Rs422
User Manual Modbus TCP Slave / Modbus Master Document code: MN67508_ENG Revision 1.100 Page 14 of 28 Industrial Electronic Devices RS422: For terminate the RS422 line with a 120Ω resistor it is necessary to put ON dip 1 for T line and/or put ON dip 2 for R line, like in figure. The maximum length of the cable should be 1200m (4000 feet). -
Page 15: Use Of Compositor Sw67508
User Manual Modbus TCP Slave / Modbus Master Document code: MN67508_ENG Revision 1.100 Page 15 of 28 Industrial Electronic Devices USE OF COMPOSITOR SW67508: To configure the Converter, use the available software that runs with Windows called SW67508. It is downloadable on the site www.adfweb.com and its operation is described in this document. -
Page 16: New Project / Open Project
User Manual Modbus TCP Slave / Modbus Master Document code: MN67508_ENG Revision 1.100 Page 16 of 28 Industrial Electronic Devices NEW CONFIGURATION / OPEN CONFIGURATION: “New Configuration” button creates the folder which contains the entire device’s configuration. A device’s configuration can also be imported or exported: To clone the configurations of a programmable “Modbus TCP Slave / Modbus Master - Converter”... -
Page 17: Software Options
User Manual Modbus TCP Slave / Modbus Master Document code: MN67508_ENG Revision 1.100 Page 17 of 28 Industrial Electronic Devices SOFTWARE OPTIONS: By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the compositor. -
Page 18: Set Communication
User Manual Modbus TCP Slave / Modbus Master Document code: MN67508_ENG Revision 1.100 Page 18 of 28 Industrial Electronic Devices SET COMMUNICATION: This section defines the fundamental communication parameters of two Buses, Modbus and Modbus TCP. By pressing the “Set Communication”... - Page 19 User Manual Modbus TCP Slave / Modbus Master Document code: MN67508_ENG Revision 1.100 Page 19 of 28 Industrial Electronic Devices If the field “Fast StartUp (only 100Mb/s)” is checked, the Converter take less time to go online. This command can use only if the Converter is used in a 100Mb/s network;...
-
Page 20: Operation Mode
User Manual Modbus TCP Slave / Modbus Master Document code: MN67508_ENG Revision 1.100 Page 20 of 28 Industrial Electronic Devices OPERATION MODE: OUTING A few characteristics of the Modbus RTU package have been modified in the standard of the Modbus TCP protocol. Two bytes of the final CRC were eliminated (no longer necessary for the information to reach its already corrected destination). -
Page 21: Translate Table
User Manual Modbus TCP Slave / Modbus Master Document code: MN67508_ENG Revision 1.100 Page 21 of 28 Industrial Electronic Devices TRANSLATE TABLE: Within the section “Translate Table” you can define the variables that can be read or written by the TCP bus on the RTU bus when the device is in NAT mode. - Page 22 User Manual Modbus TCP Slave / Modbus Master Document code: MN67508_ENG Revision 1.100 Page 22 of 28 Industrial Electronic Devices Example 1: Return to the gateway, from the variable 100 of the device in address 5 (step 3) If you want, from TCP network, write a data it the RTU Request by the gateway, from the “holding register”...
-
Page 23: Update Via Udp
User Manual Modbus TCP Slave / Modbus Master Document code: MN67508_ENG Revision 1.100 Page 23 of 28 Industrial Electronic Devices UPDATE VIA UDP: By pressing the “Update Device” button, it is possible to load the created Configuration into the device; and also the Firmware, if necessary. If you don’t know the actual IP address of the device you have to use this procedure: Turn OFF the Device;... - Page 24 User Manual Modbus TCP Slave / Modbus Master Document code: MN67508_ENG Revision 1.100 Page 24 of 28 Industrial Electronic Devices Note: When you install a new version of the software, if it is the first time it is better you do the update of the Firmware in the HD67508 device.
-
Page 25: Mechanical Dimensions
User Manual Modbus TCP Slave / Modbus Master Document code: MN67508_ENG Revision 1.100 Page 25 of 28 Industrial Electronic Devices MECHANICAL DIMENSIONS: Figure 7: Mechanical dimensions scheme for HD67508-A1-xxx ADFweb.com S.r.l. -
Page 26: Order Code
A: 1M, 35mm DIN Rail mounting Device Family HD67508: Modbus TCP Slave / Modbus Master - Converter Order Code: HD67508-A1-232 - Modbus TCP Slave / Modbus Master - Converter ( Ethernet Switch Inside for enter / exit connection ) (RS232 for Modbus RTU communication) -
Page 27: Disclaimer
User Manual Modbus TCP Slave / Modbus Master Document code: MN67508_ENG Revision 1.100 Page 27 of 28 Industrial Electronic Devices DISCLAIMER: All technical content within this document can be modified without notice. The content of the document is a under continual renewal. For losses due to fire, earthquake, third party access or other accidents, or intentional or accidental abuse, misuse, or use under abnormal conditions repairs are charged to the user. -
Page 28: Warranties And Technical Support
User Manual Modbus TCP Slave / Modbus Master Document code: MN67508_ENG Revision 1.100 Page 28 of 28 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com. Otherwise contact us at the address support@adfweb.com RETURN POLICY: If while using your product you have any problem and you wish to exchange or repair it, please do the following:...
