Industrial Electronic Devices

User Manual

Revision 1.001

English

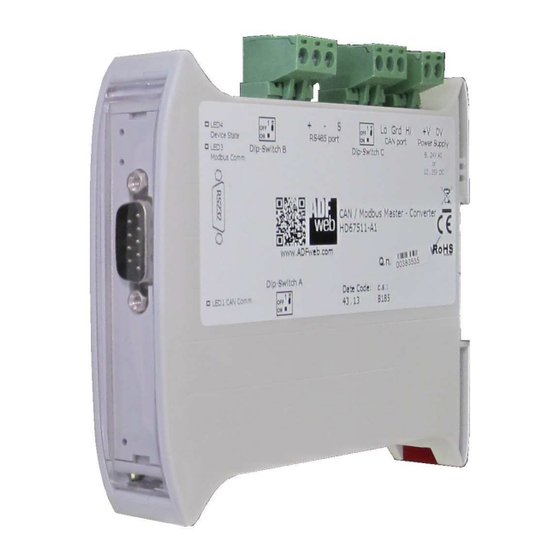

CAN / Modbus Master - Converter

(Order Code: HD67511-A1)

for Website information:

www.adfweb.com?Product=HD67511

for Price information:

www.adfweb.com?Price=HD67511-A1

Benefits and Main Features:

Very easy to configure

Wide supply input range

Triple isolation

Industrial temperature range:

-40°C / 85°C (-40°F / 185°F)

ADFweb.com Srl – IT31010 – Mareno – Treviso

Similiar

Products

Axis Solutions Pvt Ltd is the Authorized Distributor of

www.axisindia.in | info@axisindia.in

User Manual CAN /Modbus Master - Converter

Document code: MN67511_ENG

Revision 1.001

For other Gateways / Bridges:

CAN from/to Modbus

Need help?

Do you have a question about the axis HD67511-A1 and is the answer not in the manual?

Questions and answers

Summary of Contents for ADF Web axis HD67511-A1

Page 1 User Manual CAN /Modbus Master - Converter Document code: MN67511_ENG Revision 1.001 Page 1 of 24 Industrial Electronic Devices User Manual Revision 1.001 English CAN / Modbus Master - Converter (Order Code: HD67511-A1) for Website information: www.adfweb.com?Product=HD67511 for Price information: www.adfweb.com?Price=HD67511-A1 Benefits and Main Features: For other Gateways / Bridges:...
Page 2: Table Of Contents
User Manual CAN /Modbus Master - Converter Document code: MN67511_ENG Revision 1.001 Page 2 of 24 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Dear customer, we thank you for your attention and we remind you that you need to check that the following document is: Page Updated INDEX...
Page 3: Security Alert
User Manual CAN /Modbus Master - Converter Document code: MN67511_ENG Revision 1.001 Page 3 of 24 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device are required for each individual application, legal and safety regulation.
Page 4: Connection Scheme
User Manual CAN /Modbus Master - Converter Document code: MN67511_ENG Revision 1.001 Page 4 of 24 Industrial Electronic Devices CONNECTION SCHEME: Figure 1: Connection scheme for HD67511-A1 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 5: Characteristics
User Manual CAN /Modbus Master - Converter Document code: MN67511_ENG Revision 1.001 Page 5 of 24 Industrial Electronic Devices CHARACTERISTICS: The HD67511-A1 is a CAN / Modbus Master - Converter. It allows the following characteristics: Up to 500 CAN frames in reading and 500 CAN frame in writing; Triple isolation between CAN - Power Supply, CAN - Serial, Power Supply - Serial.
Page 6: Power Supply
User Manual CAN /Modbus Master - Converter Document code: MN67511_ENG Revision 1.001 Page 6 of 24 Industrial Electronic Devices POWER SUPPLY: The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below. Vmin Vmax Vmin...
Page 7: Function Mode
User Manual CAN /Modbus Master - Converter Document code: MN67511_ENG Revision 1.001 Page 7 of 24 Industrial Electronic Devices FUNCTION MODES: The device has got two functions mode depending of the position of the ‘Dip2 of Dip-Switch A’: The first, with ‘Dip2 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device. The second, with ‘Dip2 of Dip-Switch A’...
Page 8: Leds
User Manual CAN /Modbus Master - Converter Document code: MN67511_ENG Revision 1.001 Page 8 of 24 Industrial Electronic Devices LEDS: The device has got six LEDs that are used to give information of the functioning status. The various meanings of the LEDs are described in the table below. Normal Mode Boot Mode Blinks quickly: Boot state...
Page 9: Can
User Manual CAN /Modbus Master - Converter Document code: MN67511_ENG Revision 1.001 Page 9 of 24 Industrial Electronic Devices CAN: For terminate the CAN line with a 120Ω resistor it is necessary that the Dip1 of ‘Dip-Switch C’ is at ON position. Cable characteristics: DC parameter: Impedance...
Page 10: Rs485
User Manual CAN /Modbus Master - Converter Document code: MN67511_ENG Revision 1.001 Page 10 of 24 Industrial Electronic Devices RS485: For terminate the RS485 line with a 220Ω resistor it is necessary to put ON the Dip1 of ‘Dip-Switch B’, like in figure. The maximum length of the cable should be 1200m (4000 feet).
Page 11: Rs232
User Manual CAN /Modbus Master - Converter Document code: MN67511_ENG Revision 1.001 Page 11 of 24 Industrial Electronic Devices RS232: The connection from RS232 socket to a serial port (example one from a personal computer), must be made with a Null Modem cable (a serial cable where the pins 2 and 3 are crossed).
Page 12: Use Of Compositor Sw67511
User Manual CAN /Modbus Master - Converter Document code: MN67511_ENG Revision 1.001 Page 12 of 24 Industrial Electronic Devices USE OF COMPOSITOR SW67511: To configure the “CAN / Modbus Master - Converter”, use the available software that runs with Windows, called SW67511. It is downloadable on the site www.adfweb.com and its operation is described in this document.
Page 13: Software Option
User Manual CAN /Modbus Master - Converter Document code: MN67511_ENG Revision 1.001 Page 13 of 24 Industrial Electronic Devices SOFTWARE OPTIONS: In this section there is the possibility to change the language of the software and check the updatings for the compositor. In the section “Language”...
Page 14: Set Communication
User Manual CAN /Modbus Master - Converter Document code: MN67511_ENG Revision 1.001 Page 14 of 24 Industrial Electronic Devices SET COMMINICATION: This section defines the fundamental communication parameters of two buses, CAN and Modbus. By pressing the “Set Communication” button from the main window for SW67511 (Fig. 2) the window “Set Communication”...
Page 15: Cob Request
User Manual CAN /Modbus Master - Converter Document code: MN67511_ENG Revision 1.001 Page 15 of 24 Industrial Electronic Devices COB REQUEST: By pressing the “COB Request” button from the main window for SW67511 (Fig. 2) the window “Request” appears (Fig. 6). The COB inserted in this table are the data read from the Modbus.
Page 16 User Manual CAN /Modbus Master - Converter Document code: MN67511_ENG Revision 1.001 Page 16 of 24 Industrial Electronic Devices Examples: In the first case of the table: If we want to read the 4 Holding Register at address 100 (Fig. 6) we must send a CAN bus frame with COB ID= $0123 and without data (Fig.
Page 17: Cob Setting
User Manual CAN /Modbus Master - Converter Document code: MN67511_ENG Revision 1.001 Page 17 of 24 Industrial Electronic Devices COB SETTING: By pressing the “COB Setting” button from the main window for SW67511 (Fig. 2) the window “Request” appears (Fig. 9). The COB inserted in this table are the data write from the Modbus.
Page 18 User Manual CAN /Modbus Master - Converter Document code: MN67511_ENG Revision 1.001 Page 18 of 24 Industrial Electronic Devices Example: If we want to write the 4 Holding Register at address 13 (Fig. 9) we must send a CAN frame with COB ID=$023456 and 8 byte of data (Fig. 10-1);...
Page 19: Update Device
User Manual CAN /Modbus Master - Converter Document code: MN67511_ENG Revision 1.001 Page 19 of 24 Industrial Electronic Devices UPDATE DEVICE: By pressing the “Update Device” button it is possible to load the created Configuration into the device and also the Firmware, if is necessary. In order to load the parameters or update the firmware in the device, follow these instructions: Turn off the Device;...
Page 20 User Manual CAN /Modbus Master - Converter Document code: MN67511_ENG Revision 1.001 Page 20 of 24 Industrial Electronic Devices Note: When you install a new version of the software the first thing to do is the update of the Firmware in the HD67511 device. Note: When you receive the device, for the first time, you have to update also the Firmware in the HD67511 device.
Page 21: Mechanical Dimensions
User Manual CAN /Modbus Master - Converter Document code: MN67511_ENG Revision 1.001 Page 21 of 24 Industrial Electronic Devices MECHANICAL DIMENSIONS: ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 22: Ordering Information
User Manual CAN /Modbus Master - Converter Document code: MN67511_ENG Revision 1.001 Page 22 of 24 Industrial Electronic Devices ORDERING INFORMATIONS: The ordering part number is formed by a valid combination of the following: HD67511 – A 1 Connectors Type 1: Removable 5mm Screw Terminal Enclosure Type A: 1M, 35mm DIN Rail mounting...
Page 23: Disclaimer
User Manual CAN /Modbus Master - Converter Document code: MN67511_ENG Revision 1.001 Page 23 of 24 Industrial Electronic Devices DISCLAIMER All technical content within this document can be modified without notice. The content of the document content is a recurring audit. For losses due to fire, earthquake, third party access or other accidents, or intentional or accidental abuse, misuse, or use under abnormal conditions repairs are charged to the user.
Page 24: Warranties And Technical Support
User Manual CAN /Modbus Master - Converter Document code: MN67511_ENG Revision 1.001 Page 24 of 24 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com. Otherwise contact us at the address support@adfweb.com RETURN POLICY: If while using your product you have any problem and you wish to exchange or repair it, please do the following:...
