UPDATE DEVICE (Hardware Without Ethernet):
By pressing the "Update Device" button it is possible to load the created Configuration into the device; and also the Firmware, if is
necessary.
In order to load the parameters or update the firmware in the Converter, follow these
instructions:
Turn off the Device;
Connect the Null Modem Cable form your PC to the Converter;
Put Dip2 of Dip-Switch A at "ON" position (see "FUNCTION MODES" section);
Select the "COM port" and press the "Connect" button;
Turn on the device;
Check the BOOT Led. It must blink quickly (see "LEDS" section);
Press the "Next" button;
Select which operations you want to do.
Press the "Execute update
When all the operations are "OK" turn off the device;
Put Dip2 of Dip-Switch A at "OFF" position;
Disconnect the RS232 cable;
Turn on the device.
At this point the configuration/firmware on the device is correctly update.

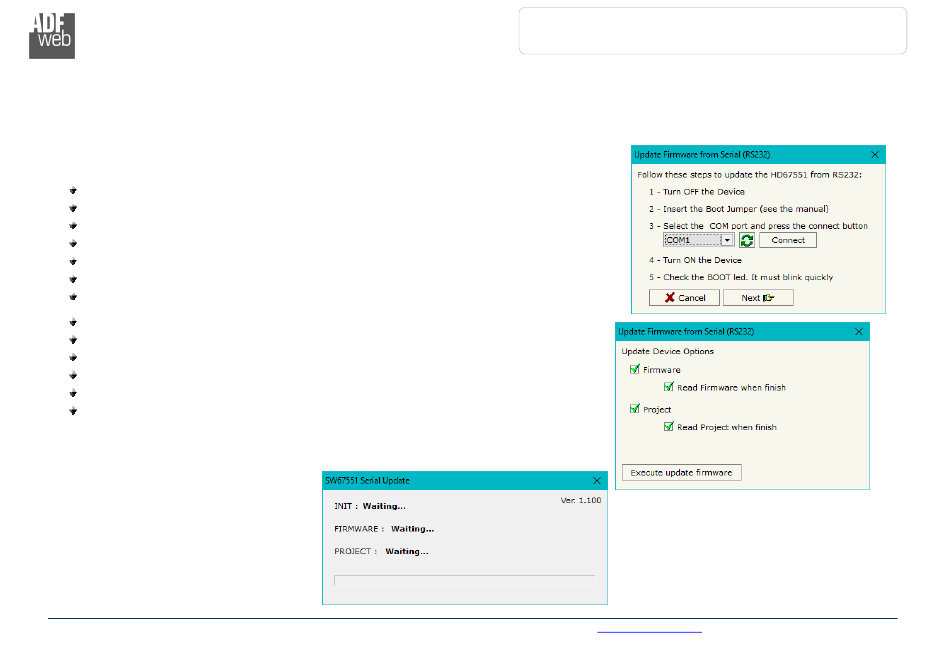

Figure 10: "Update Device" windows
