Industrial Electronic Devices

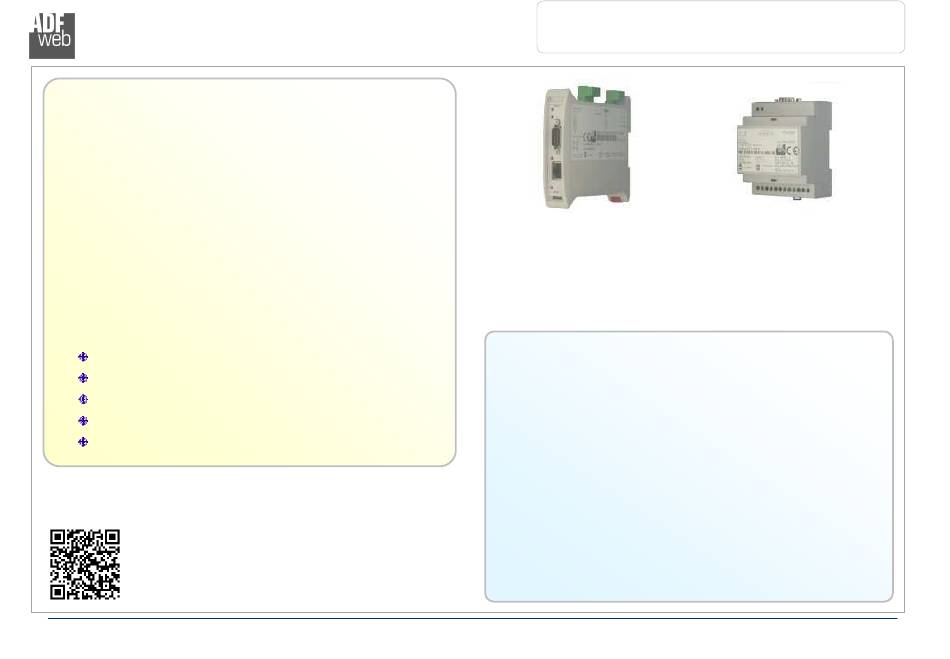

User Manual
Revision 2.100
English

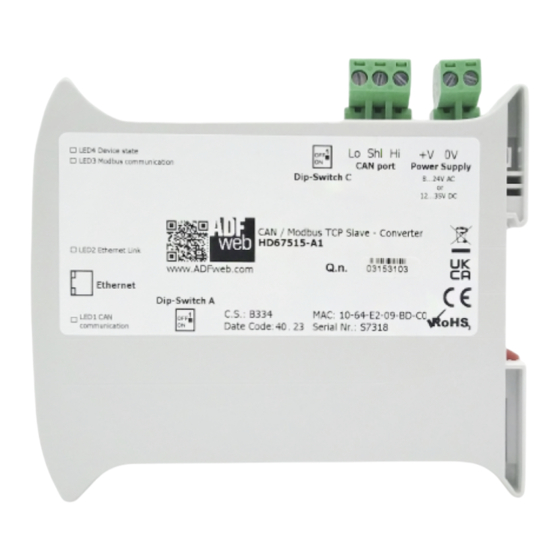

CAN/ Modbus TCP Slave - Converter
(Order Code: HD67515-A1, HD67515-B2)
Benefits and Main Features:
Very easy to configure
Low cost
32mm Rail DIN mount
Wide supply input range
Temperature range: -40°C/+85°C (-40°F/+185°F)
ADFweb.com S.r.l.
User Manual CAN / Modbus TCP Slave
Document code: MN67515_ENG
HD67515-A1
Revision 2.100
Page 1 of 30
HD67515-B2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HD67515-A1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ADF Web HD67515-A1

Summary of Contents for ADF Web HD67515-A1

  • Page 1 Revision 2.100 Page 1 of 30 Industrial Electronic Devices User Manual Revision 2.100 English CAN/ Modbus TCP Slave - Converter (Order Code: HD67515-A1, HD67515-B2) HD67515-B2 HD67515-A1 Benefits and Main Features: Very easy to configure Low cost 32mm Rail DIN mount Wide supply input range Temperature range: -40°C/+85°C (-40°F/+185°F)

  • Page 2: Updated Documentation

    User Manual CAN / Modbus TCP Slave Document code: MN67515_ENG Revision 2.100 Page 2 of 30 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Dear customer, we thank you for your attention and we remind you that you Page need to check that the following document is: INDEX UPDATED DOCUMENTATION Updated...

  • Page 3: Security Alert

    User Manual CAN / Modbus TCP Slave Document code: MN67515_ENG Revision 2.100 Page 3 of 30 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device are required for each individual application, legal and safety regulation.

  • Page 4: Examples Of Connection

    User Manual CAN / Modbus TCP Slave Document code: MN67515_ENG Revision 2.100 Page 4 of 30 Industrial Electronic Devices EXAMPLES OF CONNECTION: ADFweb.com S.r.l.

  • Page 5: Connection Scheme

    User Manual CAN / Modbus TCP Slave Document code: MN67515_ENG Revision 2.100 Page 5 of 30 Industrial Electronic Devices CONNECTION SCHEME: Figure 1a: Connection scheme for HD67515-A1 ADFweb.com S.r.l.
  • Page 6 User Manual CAN / Modbus TCP Slave Document code: MN67515_ENG Revision 2.100 Page 6 of 30 Industrial Electronic Devices Figure 1b: Connection scheme for HD67515-B2 ADFweb.com S.r.l.
  • Page 7 User Manual CAN / Modbus TCP Slave Document code: MN67515_ENG Revision 2.100 Page 7 of 30 Industrial Electronic Devices CHARACTERISTICS: The “CAN / Modbus TCP Slave – Converter” allows the following characteristics: two-directional information between networks CAN and Modbus; electrical isolation between two Buses; to read CAN frame from Modbus word;...

  • Page 8: Power Supply

    The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below. Vmin Vmax Vmin Vmax Consumption at 24V DC: Device Consumption [W/VA] HD67515-A1 HD67515-B2 Caution: Not reverse the polarity power HD67515-A1 HD67515-B2 ADFweb.com S.r.l.

  • Page 9: Function Modes

    User Manual CAN / Modbus TCP Slave Document code: MN67515_ENG Revision 2.100 Page 9 of 30 Industrial Electronic Devices FUNCTION MODES: The device has got two function modes depending on the position of the ‘Dip2 of Dip-Switch A’: The first, with ‘Dip2 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device. The second, with ‘Dip2 of Dip-Switch A’...
  • Page 10 User Manual CAN / Modbus TCP Slave Document code: MN67515_ENG Revision 2.100 Page 10 of 30 Industrial Electronic Devices LEDS: The devices has got four (five for HD67515-B2) LEDs that are used to give information of the functioning status. The various meanings of the LEDs are described in the table below. Normal Mode Boot Mode Blinks quickly: Boot state...
  • Page 11 ETHERNET: The Ethernet connection must be made using Connector5 of HD67515-A1/HD67515-B2 with at least a Category 5E cable. The maximum length of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. To connect the device to a Hub/Switch the use of a straight cable is recommended.
  • Page 12 User Manual CAN / Modbus TCP Slave Document code: MN67515_ENG Revision 2.100 Page 12 of 30 Industrial Electronic Devices CAN: For terminating the CAN line with a 120Ω resistor it is necessary that the Dip1 of ‘Dip-Switch A’ is at ON position. Cable characteristics: DC parameter: Impedance...
  • Page 13 User Manual CAN / Modbus TCP Slave Document code: MN67515_ENG Revision 2.100 Page 13 of 30 Industrial Electronic Devices USE OF COMPOSITOR SW67515: To configure the Converter, use the available software that runs with Windows called SW67515. It is downloadable on the site www.adfweb.com and its operation is described in this document.

  • Page 14: New Configuration / Open Configuration

    User Manual CAN / Modbus TCP Slave Document code: MN67515_ENG Revision 2.100 Page 14 of 30 Industrial Electronic Devices NEW CONFIGURATION / OPEN CONFIGURATION: “New Configuration” button creates the folder which contains the entire device’s configuration. A device’s configuration can also be imported or exported: To clone the configurations of a programmable “CAN / Modbus TCP Slave - Converter”...

  • Page 15: Software Options

    User Manual CAN / Modbus TCP Slave Document code: MN67515_ENG Revision 2.100 Page 15 of 30 Industrial Electronic Devices SOFTWARE OPTIONS: By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the compositor.

  • Page 16: Set Communication

    User Manual CAN / Modbus TCP Slave Document code: MN67515_ENG Revision 2.100 Page 16 of 30 Industrial Electronic Devices SET COMMUNICATION: This section defines the fundamental communication parameters of two Buses, CAN and Modbus TCP. By pressing the “Set Communication” button from the main window for SW67515 (Fig. 2) the window “Set communication”...
  • Page 17 User Manual CAN / Modbus TCP Slave Document code: MN67515_ENG Revision 2.100 Page 17 of 30 Industrial Electronic Devices RECEIVE COB: By pressing the “Receive COB” button from the main window for SW67515 (Fig. 2) the window “Receive CAN Frames Definition” appears (Fig.
  • Page 18 User Manual CAN / Modbus TCP Slave Document code: MN67515_ENG Revision 2.100 Page 18 of 30 Industrial Electronic Devices If “Device from May 2014 (with Dip-Switches)” is set in the section “Set Communication”, the window appears like below: Figure 4b: “Receive CAN Frame Definition” window In the field “Cob-ID”...
  • Page 19 User Manual CAN / Modbus TCP Slave Document code: MN67515_ENG Revision 2.100 Page 19 of 30 Industrial Electronic Devices DEFINE COB: By pressing the “Define COB” button near “Receive COB” from the main window for SW67515 (Fig. 2) the window “Define Modbus Registers for Receive CAN Frames”...
  • Page 20 User Manual CAN / Modbus TCP Slave Document code: MN67515_ENG Revision 2.100 Page 20 of 30 Industrial Electronic Devices TRANSMIT COB: By pressing the “Transmit COB” button from the main window of SW67515 the window “Transmit CAN Frames Definition” appears (Fig. 6): in this section, it is possible to define the CAN frames that the converter will send to the CAN network.
  • Page 21 User Manual CAN / Modbus TCP Slave Document code: MN67515_ENG Revision 2.100 Page 21 of 30 Industrial Electronic Devices If “Device from May 2014 (with Dip-Switches)” is set in the section “Set Communication”, the window appears like below: Figure 6b: “Transmit CAN Frame Definition” window In the field “Cob-ID”...
  • Page 22 User Manual CAN / Modbus TCP Slave Document code: MN67515_ENG Revision 2.100 Page 22 of 30 Industrial Electronic Devices DEFINE COB By pressing the “Define COB” button near “Transmit COB” from the main window for SW67515 (Fig. 2) the window “Define Modbus Registers for Transmit CAN Frames”...
  • Page 23 User Manual CAN / Modbus TCP Slave Document code: MN67515_ENG Revision 2.100 Page 23 of 30 Industrial Electronic Devices UPDATE VIA SERIAL (only if “Device till April 2014 (with Jumper)” is set): By pressing the “Update Device” button it is possible to load the created Configuration into the device, and also the Firmware if is necessary, using the RS232 port.
  • Page 24 User Manual CAN / Modbus TCP Slave Document code: MN67515_ENG Revision 2.100 Page 24 of 30 Industrial Electronic Devices UPDATE VIA UDP (only if “Device from May 2014 (with Dip-Switches)” is set): By pressing the “Update Device” button, it is possible to load the created Configuration into the device;...
  • Page 25 When you install a new version of the software, if it is the first time it is better you do the update of the Firmware in the HD67515- A1 or HD67515-B2 device. Note: When you receive the device, for the first time, you also have to update the Firmware in the HD67515-A1 or HD67515-B2 device. ADFweb.com S.r.l.
  • Page 26 Windows Vista, Seven, 8 you have to launch the "Command Prompt" with Administrator Rights; Take attention at Firewall lock. Warning: In the case of HD67515-A1 or HD67515-B2 you have to use the software “SW67515”: www.adfweb.com\download\filefold\SW67515.zip. Note: The minimum version of the configuration software must be the 2.000.

  • Page 27: Mechanical Dimensions

    User Manual CAN / Modbus TCP Slave Document code: MN67515_ENG Revision 2.100 Page 27 of 30 Industrial Electronic Devices MECHANICAL DIMENSIONS: Figure 11: Mechanical dimensions scheme for HD67515-B2 Figure 10: Mechanical dimensions scheme for HD67515-A1 ADFweb.com S.r.l.

  • Page 28: Ordering Informations

    B: 4M, 35mm DIN Rail mounting Device Family HD67515: CAN / Modbus TCP Slave - Converter Order Code: HD67515-A1 CAN / Modbus TCP Slave - Converter ( Housing type: A, Terminal Blocks Connectors ) Order Code: HD67515-B2 CAN / Modbus TCP Slave - Converter ( Housing type: B, Terminal Blocks Connectors )
  • Page 29 User Manual CAN / Modbus TCP Slave Document code: MN67515_ENG Revision 2.100 Page 29 of 30 Industrial Electronic Devices DISCLAIMER: All technical content within this document can be modified without notice. The content of the document is a under continual renewal. For losses due to fire, earthquake, third party access or other accidents, or intentional or accidental abuse, misuse, or use under abnormal conditions repairs are charged to the user.

  • Page 30: Warranties And Technical Support

    User Manual CAN / Modbus TCP Slave Document code: MN67515_ENG Revision 2.100 Page 30 of 30 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com. Otherwise contact us at the address support@adfweb.com RETURN POLICY: If while using your product you have any problem and you wish to exchange or repair it, please do the following:...
