User Manual EtherNet/IP / PROFIBUS Slave
Document code: MN67594_ENG
Revision 1.002
For others PROFIBUS devices, see also the following links:
PROFIBUS Slave from/to ...
www.adfweb.com?Product=HD67045
www.adfweb.com?Product=HD67053
www.adfweb.com?Product=HD67551
www.adfweb.com?Product=HD67552
www.adfweb.com?Product=HD67553
www.adfweb.com?Product=HD67554
www.adfweb.com?Product=HD67555
www.adfweb.com?Product=HD67561
www.adfweb.com?Product=HD67562
www.adfweb.com?Product=HD67563
www.adfweb.com?Product=HD67564
www.adfweb.com?Product=HD67565
PROFIBUS Master from/to ...
www.adfweb.com?Product=HD67577
www.adfweb.com?Product=HD67575
www.adfweb.com?Product=HD67577
Do you have an your customer protocol?
See the following links:
www.adfweb.com?Product=HD67003
Do you need to choose a device? do you want help?
Ask it to the following link:
www.adfweb.com?Cmd=helpme
INFO:
www.adfweb.com
in India
in India
in India
in India
Page 1 of 22
(... Serial)
(... M-Bus Master)
(... CANopen)
(... CAN)
(... J1939)
(... DeviceNet Slave)
(... DeviceNet Master)
(... Modbus Master)
(... Modbus Slave)
(... Ethernet Server)
(... Modbus TCP Client)
(... Modbus TCP Server)
(... DeviceNet Slave)
(... Ethernet)
(... CAN)
Phone +39.0438.30.91.31
Advertisement
Table of Contents
Related Manuals for ADF Web AXIS HD67594-A1
Summary of Contents for ADF Web AXIS HD67594-A1

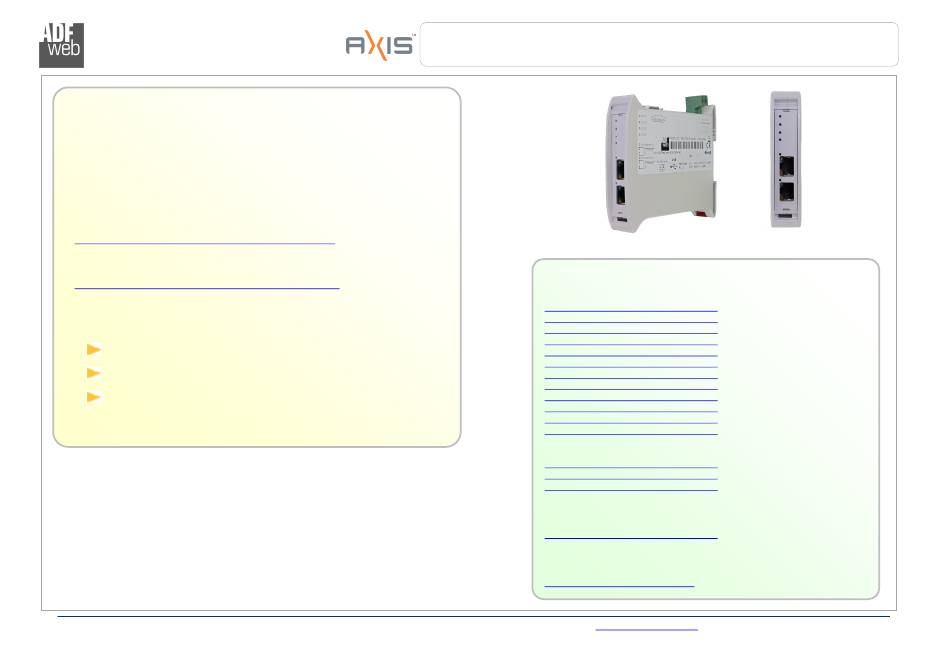

- Page 1 User Manual EtherNet/IP / PROFIBUS Slave Document code: MN67594_ENG Revision 1.002 Page 1 of 22 Industrial Electronic Devices User Manual Revision 1.002 English EtherNet/IP / PROFIBUS Slave - Converter (Order Code: HD67594-A1) for Website information: http://www.adfweb.com/?Product=HD67594 for Price information: For others PROFIBUS devices, see also the following links: http://www.adfweb.com/?Price=HD67594-A1 PROFIBUS Slave from/to …...
-
Page 2: Table Of Contents
User Manual EtherNet/IP / PROFIBUS Slave Document code: MN67594_ENG Revision 1.002 Page 2 of 22 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Dear customer, we thank you for your attention and we remind you that Page you need to check that the following document is: INDEX UPDATED DOCUMENTATION Updated;... -
Page 3: Security Alert
User Manual EtherNet/IP / PROFIBUS Slave Document code: MN67594_ENG Revision 1.002 Page 3 of 22 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device are required for each individual application, legal and safety regulation. -
Page 4: Example Of Connection
User Manual EtherNet/IP / PROFIBUS Slave Document code: MN67594_ENG Revision 1.002 Page 4 of 22 Industrial Electronic Devices EXAMPLE OF CONNECTION: ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 5: Connection Scheme
User Manual EtherNet/IP / PROFIBUS Slave Document code: MN67594_ENG Revision 1.002 Page 5 of 22 Industrial Electronic Devices CONNECTION SCHEME: Figure 1: Connection scheme for HD67594-A1 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 6: Characteristics
User Manual EtherNet/IP / PROFIBUS Slave Document code: MN67594_ENG Revision 1.002 Page 6 of 22 Industrial Electronic Devices CHARACTERISTICS: The configurable “Ethernet/IP / PROFIBUS Slave - Converter” allows the following characteristics: Triple isolation between Ethernet/IP/PROFIBUS, Ethernet/IP /Power Supply, PROFIBUS/Power Supply. Mountable on 35mm Rail DIN;... -
Page 7: Power Supply
User Manual EtherNet/IP / PROFIBUS Slave Document code: MN67594_ENG Revision 1.002 Page 7 of 22 Industrial Electronic Devices POWER SUPPLY: The devices can be powered between a wide range of tensions. For more details see the two tables below. Vmin Vmax Vmin Vmax... -
Page 8: Function Modes
User Manual EtherNet/IP / PROFIBUS Slave Document code: MN67594_ENG Revision 1.002 Page 8 of 22 Industrial Electronic Devices FUNCTION MODES: The device has got two functions mode depending of the position of the Dip2 of ‘Dip-Switch B’: The first, with Dip2 in Off position (factory setting), is used for the normal working of the device. The second, with Dip2 in On position, is used for upload the Project/Firmware. -
Page 9: Leds
User Manual EtherNet/IP / PROFIBUS Slave Document code: MN67594_ENG Revision 1.002 Page 9 of 22 Industrial Electronic Devices LEDS: The device has got six LEDs that are used to give information of the functioning status. The various meanings of the LEDs are described in the table below. Normal Mode Boot Mode ON: Powered... -
Page 10: Profibus
User Manual EtherNet/IP / PROFIBUS Slave Document code: MN67594_ENG Revision 1.002 Page 10 of 22 Industrial Electronic Devices PROFIBUS: The PROFIBUS uses a 9-pin D-SUB connector. The pin assignment is defined like in the right figure. Here some codes of cables: Belden: p/n 183079A - Continuous Armor DataBus®... -
Page 11: Use Of Compositor Sw67594
User Manual EtherNet/IP / PROFIBUS Slave Document code: MN67594_ENG Revision 1.002 Page 11 of 22 Industrial Electronic Devices USE OF COMPOSITOR SW67594: To configure the Converter, use the available software that runs with Windows, called SW67594. downloadable site www.adfweb.com and its operation is described in this document. (This manual is referenced to the last version of the software present on our web site). -
Page 12: Set Communication
User Manual EtherNet/IP / PROFIBUS Slave Document code: MN67594_ENG Revision 1.002 Page 12 of 22 Industrial Electronic Devices SET COMMUNICATION: This section defines the fundamental communication parameter of two buses, PROFIBUS and Ethernet/IP. By pressing the “Set Communication” button from the main window for SW67594 (Fig. 2) the window “Set Communication”... -
Page 13: Update Device
User Manual EtherNet/IP / PROFIBUS Slave Document code: MN67594_ENG Revision 1.002 Page 13 of 22 Industrial Electronic Devices UPDATE DEVICE: By pressing the “Update Device” button it is possible to load the created Configuration into the device; and also the Firmware, if is necessary. If you don’t know the actual IP address of the device you have to use this procedure: Turn off the Device;... - Page 14 User Manual EtherNet/IP / PROFIBUS Slave Document code: MN67594_ENG Revision 1.002 Page 14 of 22 Industrial Electronic Devices If you know the actual IP address of the device you have to use this procedure: Turn on the Device with the Ethernet cable inserted; Insert the actual IP of the Converter;...
-
Page 15: Mechanical Dimensions
User Manual EtherNet/IP / PROFIBUS Slave Document code: MN67594_ENG Revision 1.002 Page 15 of 22 Industrial Electronic Devices MECHANICAL DIMENSIONS: Figure 6: Mechanical dimensions scheme for HD67594-A1 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 16: Order Code
User Manual EtherNet/IP / PROFIBUS Slave Document code: MN67594_ENG Revision 1.002 Page 16 of 22 Industrial Electronic Devices ORDERING INFORMATIONS: The ordering part number is formed by a valid combination of the following: HD67594 – A 1 Connectors Type 1: Removable 5mm Screw Terminal Enclosure Type A: 1M, 35mm DIN Rail mounting Device Family... -
Page 17: Plc Configuration
User Manual EtherNet/IP / PROFIBUS Slave Document code: MN67594_ENG Revision 1.002 Page 17 of 22 Industrial Electronic Devices PLC CONFIGURATION: The configuration and commissioning of the EtherNet/IP Converter as described on the following pages was accomplished with the help of the “RSLogix 5000”... - Page 18 User Manual EtherNet/IP / PROFIBUS Slave Document code: MN67594_ENG Revision 1.002 Page 18 of 22 Industrial Electronic Devices 2) Edit the settings of the new Generic Ethernet Module. As shown in the screen shot below, the module was named “HD67594” and the IP-address assigned is 192.168.0.5. For the Comm Format “Data –...
- Page 19 User Manual EtherNet/IP / PROFIBUS Slave Document code: MN67594_ENG Revision 1.002 Page 19 of 22 Industrial Electronic Devices 4) After the configuration is completed, the controller tags are created. ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
- Page 20 User Manual EtherNet/IP / PROFIBUS Slave Document code: MN67594_ENG Revision 1.002 Page 20 of 22 Industrial Electronic Devices 5) With “RSLinks Classic Lite”, after have done a network scan (RSWho), and finding the EtherNet/IP device, it is possible to load the EDS file for the device in order to have the “Module Info”...
-
Page 21: Disclaimer
User Manual EtherNet/IP / PROFIBUS Slave Document code: MN67594_ENG Revision 1.002 Page 21 of 22 Industrial Electronic Devices DISCLAIMER All technical content within this document can be modified without notice. The content of the document content is a recurring audit. For losses due to fire, earthquake, third party access or other accidents, or intentional or accidental abuse, misuse, or use under abnormal conditions repairs are charged to the user. -
Page 22: Warranties And Technical Support
User Manual EtherNet/IP / PROFIBUS Slave Document code: MN67594_ENG Revision 1.002 Page 22 of 22 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com. Otherwise contact us at the address support@adfweb.com RETURN POLICY: If while using your product you have any problem and you wish to exchange or repair it, please do the following: Obtain a Product Return Number (PRN) from our internet support at www.adfweb.com.
