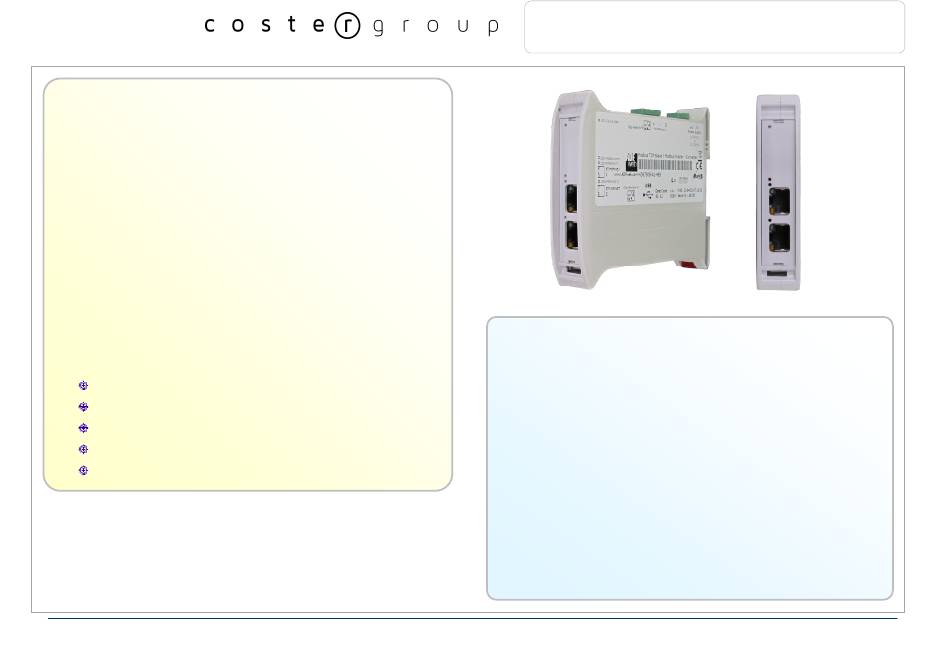

D11116 - ADF 485
User Manual
Revision 1.014
English
Modbus TCP Slave / Modbus Master – Converter
(Ethernet Switch Inside for enter/exit connection)
(Order Code: HD67508-A1-232, HD67508-A1-485)
Benefits and Main Features:
Very easy to configure
35mm Rail DIN mount
Wide supply input range
Two Ethernet ports
Temperature range: -40°C/+85°C (-40°F/+185°F)
User Manual Modbus TCP Slave / Modbus Master
Document code: MN67508_ENG
For others products, see also the following links:
RS232 / RS485 / USB / Ethernet
Revision 1.014
Page 1 of 25
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ADF Web HD67508-A1-232
Summary of Contents for ADF Web HD67508-A1-232
- Page 1 Revision 1.014 English Modbus TCP Slave / Modbus Master – Converter (Ethernet Switch Inside for enter/exit connection) (Order Code: HD67508-A1-232, HD67508-A1-485) For others products, see also the following links: RS232 / RS485 / USB / Ethernet Benefits and Main Features:...
-
Page 2: Table Of Contents
User Manual Modbus TCP Slave / Modbus Master D11116 - ADF 485 Document code: MN67508_ENG Revision 1.014 Page 2 of 25 INDEX: UPDATED DOCUMENTATION: Page Dear customer, we thank you for your attention and we remind you that INDEX you need to check that the following document is: UPDATED DOCUMENTATION REVISION LIST Updated... -
Page 3: Security Alert
User Manual Modbus TCP Slave / Modbus Master D11116 - ADF 485 Document code: MN67508_ENG Revision 1.014 Page 3 of 25 SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and safety regulation are required for each individual application. -
Page 4: Examples Of Connection
User Manual Modbus TCP Slave / Modbus Master D11116 - ADF 485 Document code: MN67508_ENG Revision 1.014 Page 4 of 25 EXAMPLES OF CONNECTION:... -
Page 5: Connection Scheme
D11116 - ADF 485 User Manual Modbus TCP Slave / Modbus Master Document code: MN67508_ENG Revision 1.014 Page 5 of 25 CONNECTION SCHEME: Figure 1a: Connection scheme for HD67508-A1-232... - Page 6 User Manual Modbus TCP Slave / Modbus Master D11116 - ADF 485 Document code: MN67508_ENG Revision 1.014 Page 6 of 25 Figure 1b: Connection scheme for HD67508-A1-485...
-
Page 7: Characteristics
User Manual Modbus TCP Slave / Modbus Master D11116 - ADF 485 Document code: MN67508_ENG Revision 1.014 Page 7 of 25 CHARACTERISTICS: The “Modbus TCP Slave / Modbus Master – Converter” allows the following characteristics: Triple isolation between RS232/RS485 - Power Supply, RS232/RS485- Ethernet, Power Supply - Ethernet; Internal Ethernet switch;... -
Page 8: Power Supply
The devices can be powered at 8…24V AC and 12…35V DC. The consumption depends to the code of the device. For more details see the two tables below. Vmin Vmax Vmin Vmax Consumption at 24V DC: Device Consumption [W/VA] HD67508-A1-232 HD67508-A1-485 Warning: Not reverse the polarity power HD67508-A1-232 HD67508-A1-485... -
Page 9: Function Modes
User Manual Modbus TCP Slave / Modbus Master D11116 - ADF 485 Document code: MN67508_ENG Revision 1.014 Page 9 of 25 FUNCTION MODES: The device has got two functions mode depending of the position of the ‘Dip2 of Dip-Switch A’: The first, with ‘Dip2 of Dip-Switch A’... -
Page 10: Leds
User Manual Modbus TCP Slave / Modbus Master D11116 - ADF 485 Document code: MN67508_ENG Revision 1.014 Page 10 of 25 LEDS: The devices has got four LEDs that are used to give information of the functioning status. The various meanings of the LEDs are described in the table below. Normal Mode Boot Mode Blinks quickly: Boot state... -
Page 11: Ethernet
User Manual Modbus TCP Slave / Modbus Master D11116 - ADF 485 Document code: MN67508_ENG Revision 1.014 Page 11 of 25 ETHERNET: The Modbus TCP connection must be made using Connector3 and/or Connector4 of HD67508-A1-xxx with at least a Category 5E cable. The maximum length of the cable should not exceed 100m. -
Page 12: Rs485
D11116 - ADF 485 User Manual Modbus TCP Slave / Modbus Master Document code: MN67508_ENG Revision 1.014 Page 12 of 25 RS485: To terminate the RS485 line with a 220Ω resistor, it is necessary to put dip 1 ON, like in figure. The maximum length of the cable should be 1200m (4000 feet). -
Page 13: Use Of Compositor Sw67508
User Manual Modbus TCP Slave / Modbus Master D11116 - ADF 485 Document code: MN67508_ENG Revision 1.014 Page 13 of 25 USE OF COMPOSITOR SW67508: To configure the Converter, use the available software that runs with Windows called SW67508. downloadable site www.adfweb.com and its operation is described in this document. -
Page 14: General Parameter
User Manual Modbus TCP Slave / Modbus Master D11116 - ADF 485 Document code: MN67508_ENG Revision 1.014 Page 14 of 25 GENERAL PARAMETER: This section defines the fundamental communication parameters of two buses, Modbus TCP and Modbus RTU. By pressing the “General Parameter”... -
Page 15: Ping Device
User Manual Modbus TCP Slave / Modbus Master D11116 - ADF 485 Document code: MN67508_ENG Revision 1.014 Page 15 of 25 The means for the fields of “MODBUS RTU” are: If the field “RS232” is checked the serial line in use is the RS232, otherwise is the “RS485”; In the field “Baud rate”... -
Page 16: Operation Mode
User Manual Modbus TCP Slave / Modbus Master D11116 - ADF 485 Document code: MN67508_ENG Revision 1.014 Page 16 of 25 OPERATION MODE: OUTING A few characteristics of the Modbus RTU package have been modified in the standard of the Modbus TCP protocol. Two bytes of the final CRC were eliminated (no longer necessary for the information to reach its already corrected destination). -
Page 17: Translate Table
User Manual Modbus TCP Slave / Modbus Master D11116 - ADF 485 Document code: MN67508_ENG Revision 1.014 Page 17 of 25 TRANSLATE TABLE: Within the section “Translate Table” you can define the variables that can be read or written by the TCP bus on the RTU bus when the device is in NAT mode. - Page 18 User Manual Modbus TCP Slave / Modbus Master D11116 - ADF 485 Document code: MN67508_ENG Revision 1.014 Page 18 of 25 Example 1: Return to the gateway, from the variable 100 of the device in address 5 (step 3) If you want, from TCP network, write a data it the RTU Request by the gateway, from the “holding register”...
-
Page 19: Update Via Serial
User Manual Modbus TCP Slave / Modbus Master D11116 - ADF 485 Document code: MN67508_ENG Revision 1.014 Page 19 of 25 UPDATE DEVICE VIA UDP: By pressing the “Update Device” button, it is possible to load the created Configuration into the device;... - Page 20 When you install a new version of the software, if it is the first time it is better you do the update of the Firmware in the HD67508- A1-232 or HD67508-A1-485 device. Note: When you receive the device, for the first time, you also have to update the Firmware in the HD67508-A1-232 or HD67508-A1-485 device.
- Page 21 User Manual Modbus TCP Slave / Modbus Master D11116 - ADF 485 Document code: MN67508_ENG Revision 1.014 Page 21 of 25 Warning: If Fig. 6 appears when you try to do the Update try these points before seeking assistance: Try to repeat the operations for the updating; Try with another PC;...
-
Page 22: Mechanical Dimensions
D11116 - ADF 485 User Manual Modbus TCP Slave / Modbus Master Document code: MN67508_ENG Revision 1.014 Page 22 of 25 MECHANICAL DIMENSIONS: Figure 7: Mechanical dimensions scheme for HD67508-A1-xxx... -
Page 23: Order Code
D11116 - ADF 485 User Manual Modbus TCP Slave / Modbus Master Document code: MN67508_ENG Revision 1.014 Page 23 of 25 ORDERING INFORMATIONS: The ordering part number is formed by a valid combination of the following: HD67508 - A 1 - 232 Modbus RTU Line 232: RS232 485: RS485... -
Page 24: Disclaimer
User Manual Modbus TCP Slave / Modbus Master D11116 - ADF 485 Document code: MN67508_ENG Revision 1.014 Page 24 of 25 DISCLAIMER: All technical content within this document can be modified without notice. The content of the document is a under continual renewal. For losses due to fire, earthquake, third party access or other accidents, or intentional or accidental abuse, misuse, or use under abnormal conditions repairs are charged to the user. -
Page 25: Warranties And Technical Support
User Manual Modbus TCP Slave / Modbus Master D11116 - ADF 485 Document code: MN67508_ENG Revision 1.014 Page 25 of 25 WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your products, consult our internet support at www.costergroup.eu Otherwise contact us at the address support@adfweb.com RETURN POLICY: If while using your product you have any problem and you wish to exchange or repair it, please do the following:...
