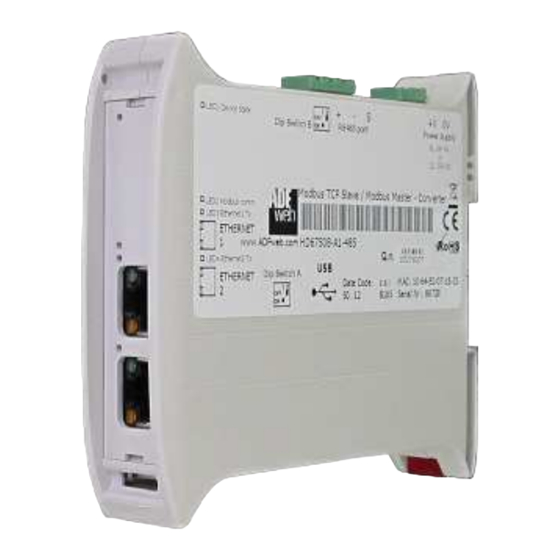

- Page 2 Revision 1.001 Pagina 1 di 22 Industrial Electronic Devices User Manual Revision 1.001 English Ethernet/IP / Modbus Master - Converter (Order Code: HD67591-232-A1, HD67591-485-A1) for Website information: www.adfweb.com?Product=HD67591 for Price information: www.adfweb.com?Price=HD67591-232-A1 www.adfweb.com?Price=HD67591-485-A1 Benefits and Main Features: Other For others Ethernet/IP products see also the following link:...
-
Page 3: Table Of Contents
User Manual Ethernet/IP / Modbus Master - Converter Document code: MN67591_ENG Revision 1.001 Pagina 2 di 22 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Dear customer, we thank you for your attention and we remind you that you need to check that the following document is: Page Updated INDEX... -
Page 4: Security Alert
User Manual Ethernet/IP / Modbus Master - Converter Document code: MN67591_ENG Revision 1.001 Pagina 3 di 22 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device are required for each individual application, legal and safety regulation. -
Page 5: Example Of Connection
User Manual Ethernet/IP / Modbus Master - Converter Document code: MN67591_ENG Revision 1.001 Pagina 4 di 22 Industrial Electronic Devices EXAMPLE OF CONNECTION: ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 6: Connection Scheme
User Manual Ethernet/IP / Modbus Master - Converter Document code: MN67591_ENG Revision 1.001 Pagina 5 di 22 Industrial Electronic Devices CONNECTION SCHEME: Figure 1a: Connection scheme for HD67591-232-A1 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... - Page 7 User Manual Ethernet/IP / Modbus Master - Converter Document code: MN67591_ENG Revision 1.001 Pagina 6 di 22 Industrial Electronic Devices Figure 1b: Connection scheme for HD67591-485-A1 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
-
Page 8: Characteristics
Pagina 7 di 22 Industrial Electronic Devices CHARACTERISTICS: The HD67591-232-A1 and HD67591-485-A1 are a Ethernet/IP / Modbus Master Converter. It allows the following characteristics: Up to 500 bytes in reading and 500 bytes in writing; Two-directional information between Modbus bus and Ethernet/IP bus;... -
Page 9: Power Supply
The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below. Vmin Vmax Vmin Vmax Consumption at 24V DC: Device Consumption [W/VA] HD67591-232-A1 HD67591-485-A1 Caution: Not reverse the polarity power HD67591-xxx-A1 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 10: Function Modes
User Manual Ethernet/IP / Modbus Master - Converter Document code: MN67591_ENG Revision 1.001 Pagina 9 di 22 Industrial Electronic Devices FUNCTION MODES: The device has got two functions mode depending of the position of the ‘Dip2 of Dip-Switch B’: The first, with ‘Dip2 of Dip-Switch B’ at “OFF” position, is used for the normal working of the device. The second, with ‘Dip2 of Dip-Switch B’... -
Page 11: Leds
User Manual Ethernet/IP / Modbus Master - Converter Document code: MN67591_ENG Revision 1.001 Pagina 10 di 22 Industrial Electronic Devices LEDS: The device has got four LEDs that are used to give information of the functioning status. The various meanings of the LEDs are described in the table below. Normal Mode Boot Mode Blinks quickly: Boot state... -
Page 12: Ethernet/Ip
User Manual Ethernet/IP / Modbus Master - Converter Document code: MN67591_ENG Revision 1.001 Pagina 11 di 22 Industrial Electronic Devices ETHERNET/IP: The Ethernet/IP connection must be made using Connector3 and/or Connector4 of HD67591-A1 with at least a Category 5E cable. The maximum length of the cable should not exceed 100m. -
Page 13: Rs485
User Manual Ethernet/IP / Modbus Master - Converter Document code: MN67591_ENG Revision 1.001 Pagina 12 di 22 Industrial Electronic Devices RS485: For terminate the RS485 line with a 220Ω resistor it is necessary to put ON dip 1, like in figure. The maximum length of the cable should be 1200m (4000 feet). -
Page 14: Use Of Compositor Sw67591
User Manual Ethernet/IP / Modbus Master - Converter Document code: MN67591_ENG Revision 1.001 Pagina 13 di 22 Industrial Electronic Devices USE OF COMPOSITOR SW67591: To configure the Converter, use the available software that runs with Windows, called SW67591. downloadable site www.adfweb.com and its operation is described in this document. -
Page 15: Set Communication
User Manual Ethernet/IP / Modbus Master - Converter Document code: MN67591_ENG Revision 1.001 Pagina 14 di 22 Industrial Electronic Devices SET COMMUNICATION: This section define the fundamental communication parameters of two buses, Ethernet/IP and Serial. By Pressing the “Set Communication” button from the main window for SW67591 (Fig. 2) the window “Set Communication”... -
Page 16: Set Access
User Manual Ethernet/IP / Modbus Master - Converter Document code: MN67591_ENG Revision 1.001 Pagina 15 di 22 Industrial Electronic Devices SET ACCESS: By pressing the “Set Access” button from the main window for SW67591 (Fig. 2) the window “Set SDO Access” appears. This window is divided in two parts, the "Modbus Read"... - Page 17 User Manual Ethernet/IP / Modbus Master - Converter Document code: MN67591_ENG Revision 1.001 Pagina 16 di 22 Industrial Electronic Devices Modbus Write The means of the fields are: In the field “Slave ID” the address of the Modbus device that you must write is defined; In the field “Type”...
-
Page 18: Update Device Via Udp
User Manual Ethernet/IP / Modbus Master - Converter Document code: MN67591_ENG Revision 1.001 Pagina 17 di 22 Industrial Electronic Devices UPDATE DEVICE VIA UDP: By pressing the “Update Device via UDP” button it is possible to load the created Configuration into the device;... - Page 19 When you install a new version of the software it is better if the first time you do the update of the Firmware in the HD67591-232- A1 or HD67591-485-A1device. Note: When you receive the device, for the first time, you have to update also the Firmware in the HD67591-232-A1 or HD67591-485-A1 device. Warning: If the Fig.
-
Page 20: Mechanical Dimensions
User Manual Ethernet/IP / Modbus Master - Converter Document code: MN67591_ENG Revision 1.001 Pagina 19 di 22 Industrial Electronic Devices MECHANICAL DIMENSIONS: Figure 10: Mechanical dimensions scheme for HD67591-232-A1 and HD67591-485-A1 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 21: Ordering Informations
User Manual Ethernet/IP / Modbus Master - Converter Document code: MN67591_ENG Revision 1.001 Pagina 20 di 22 Industrial Electronic Devices ORDERING INFORMATIONS: The ordering part number is formed by a valid combination of the following: HD67591 - 232 – A 1 Connectors Type 1: Removable 5mm Screw Terminal Enclosure Type... -
Page 22: Disclaimer
User Manual Ethernet/IP / Modbus Master - Converter Document code: MN67591_ENG Revision 1.001 Pagina 21 di 22 Industrial Electronic Devices DISCLAIMER All technical content within this document can be modified without notice. The content of the document content is a recurring audit. For losses due to fire, earthquake, third party access or other accidents, or intentional or accidental abuse, misuse, or use under abnormal conditions repairs are charged to the user. -
Page 23: Warranties And Technical Support
User Manual Ethernet/IP / Modbus Master - Converter Document code: MN67591_ENG Revision 1.001 Pagina 22 di 22 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com. Otherwise contact us at the address support@adfweb.com RETURN POLICY: If while using your product you have any problem and you wish to exchange or repair it, please do the following:...
