Figure 2-5 Front Connector - Siemens Add 7 AddFEM Manual

AddFEM
PROFIBUS–DP Connection X3A and X3B
The AddFEM disposes of two PROFIBUS connections which are used for commu-
nication with the automation processor.
Front Connectors X4 – X7
A
1
10

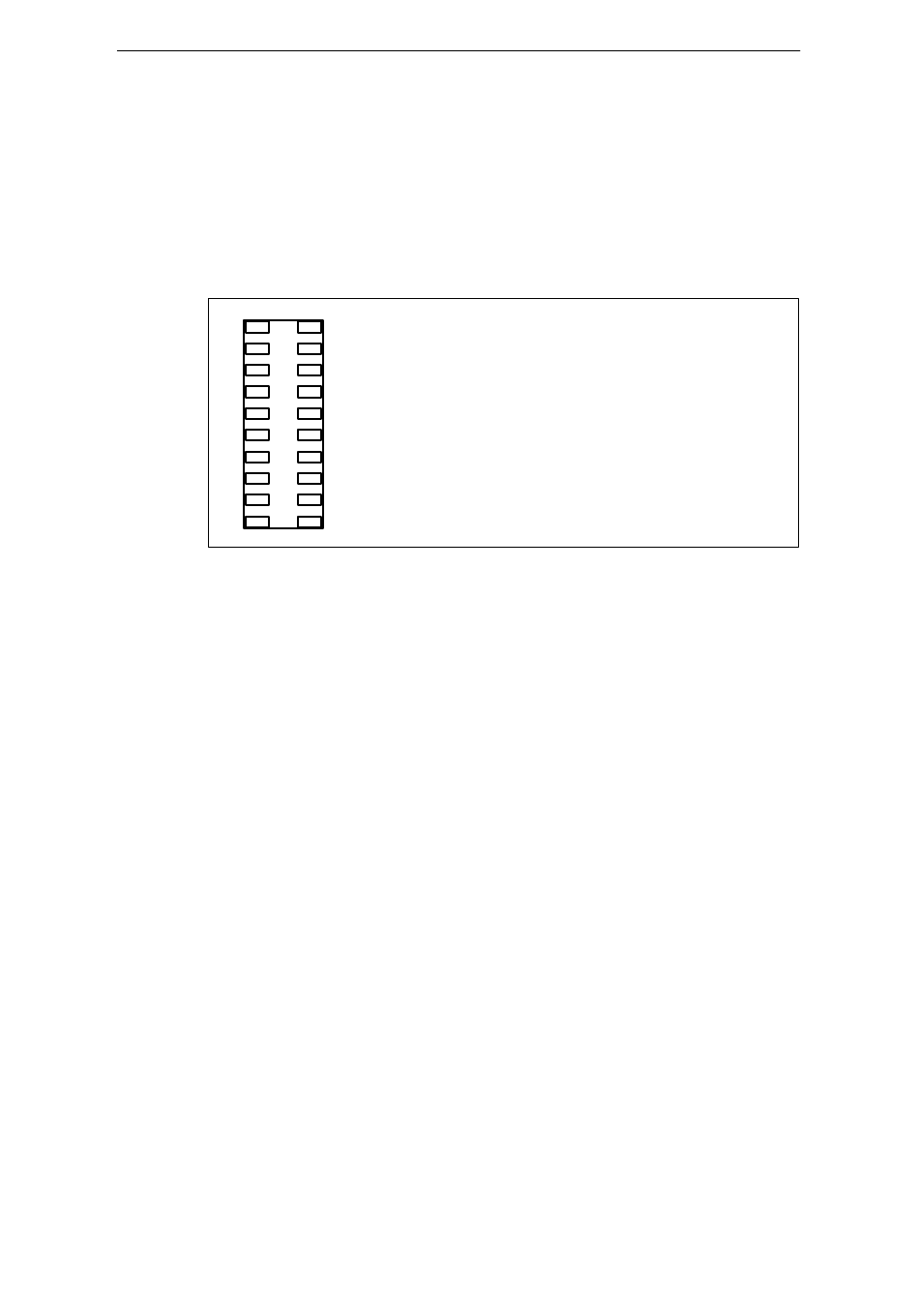

Figure 2-5 Front connector

Of the 12 analog inputs 6 can be used optionally as power inputs or as voltage in-
puts. The remaining 6 analog inputs can only be used as current inputs.
The 16 digital outputs can also be used as digital inputs.
Of the 15 digital inputs 3 can be used as counting pulse inputs for speed detection
with/without recognition of the direction of rotation. In the case of speed detection
with recognition of the direction of rotation counting pulse input 1 detects the lea-
ding signal while counting pulse input 2 detects the lagging signal.
AddFEM
C79000–G8076–C900–03
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
B
11
The 4 connectors on the panel have the same structure and
the same numbering.
The two upper connectors (X4, X5) are reserved for the ana-
log signals. The two lower connections (X6, X7) have the
digital signals and the speed detection signals assigned.
For the configuration please refer to the tables in Appendix A.
20
Design
2-9
