Commissioning / Operation / Maintenance

Configuring Counter 1:

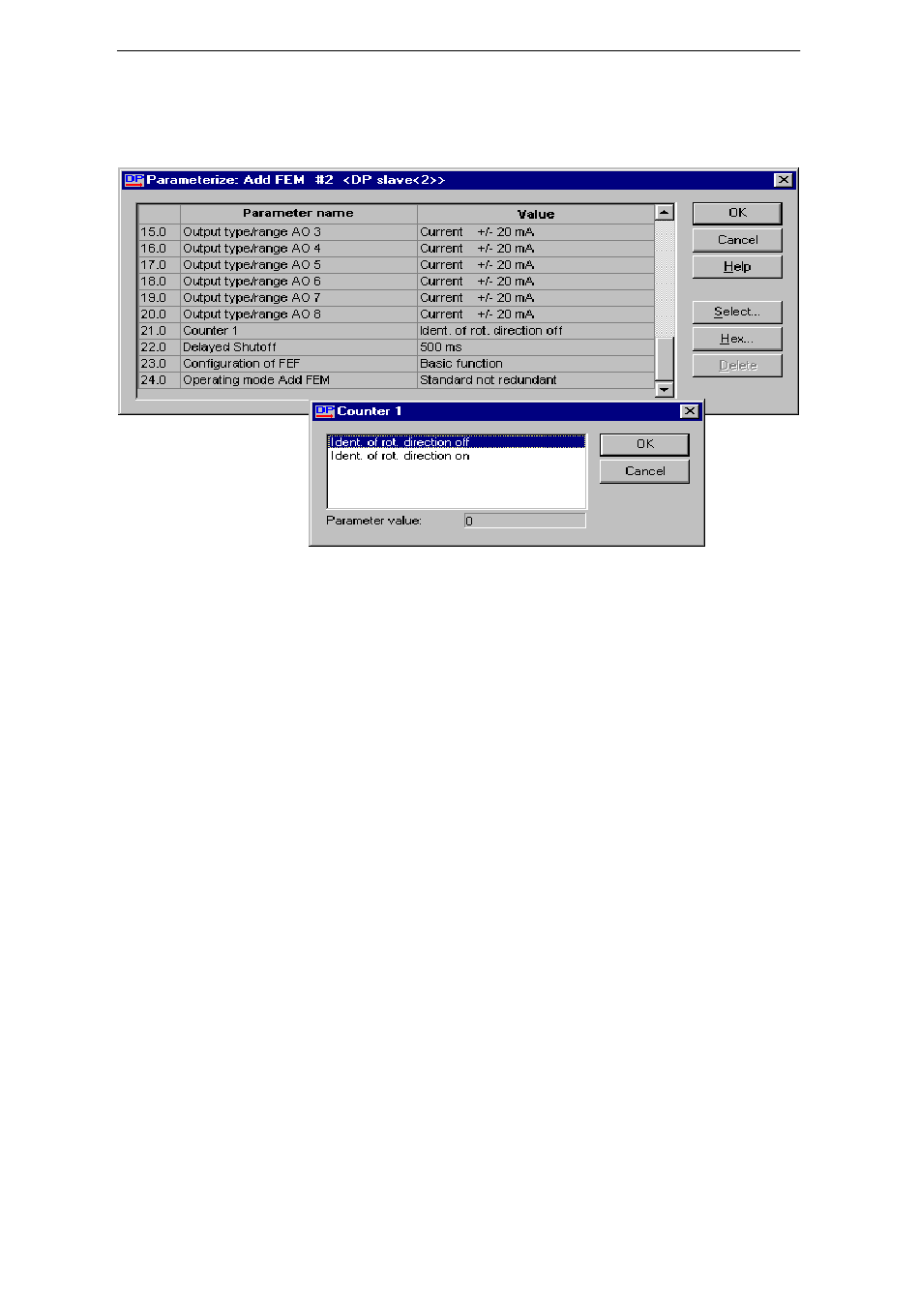

Figure 5-11 Configuring Counter 1

Counter 1 can be configured with or without a sense of rotation recognition func-

tion. For "Sense of rotation recognition on" the leading or lagging signal must be

assigned to the counting pulse inputs 1 and 2.

5-30
