Measurement Configuration - MICRO-EPSILON interferoMETER IMS5400-DS Quick Manual

Initial Operation

Measurement Configuration

Common measurement configurations (presets) for various target surfaces are stored on the controller and enable to
quickly start the respective measurement task. This allows you to quickly start with your individual measurement task.
In a preset the basic features like peak or material selection and calculation functions are already set.
Go to the Home > Measurement configuration menu and start the configuration selection.

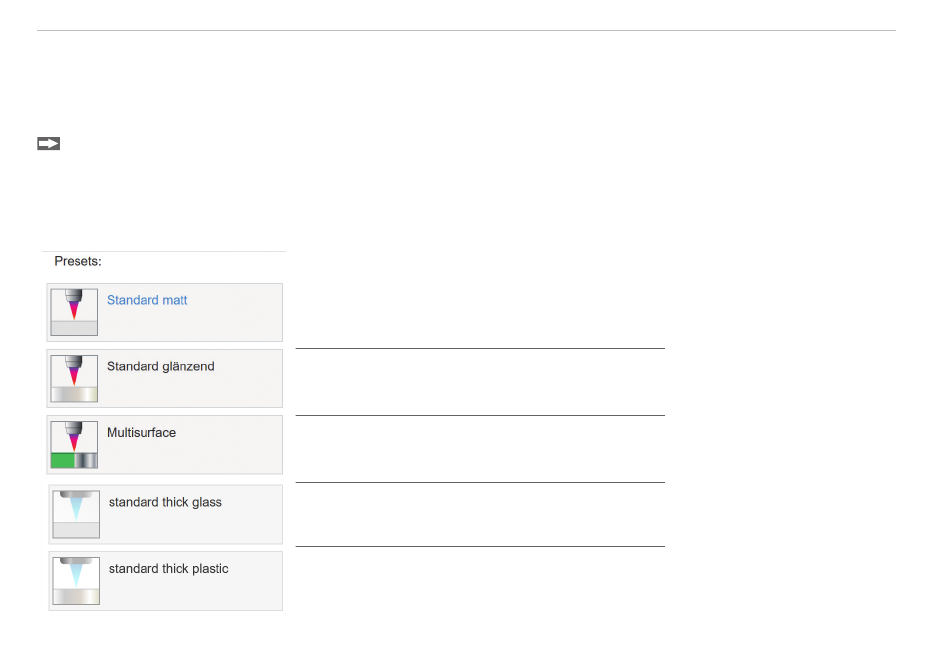

Select a stored configuration (preset).
The controller also enables user-specific settings. When saving a changed preset, the web interface displays a dialog
which enables the user to define a setup name to avoid accidental overwriting. This prevents presets from being over-
written by accident.
IMS5x00
1
Distance measurement , e.g. on ceramics,
non-transparent plastics. No averaging
1
Distance measurement , e.g. on metals, pol-
ished surfaces. Median over 5 values
1
Distance measurement , e.g. on PCB, hybrid
materials.
Median over 9 values
One-sided thickness measurement
glass.
No averaging
One-sided thickness measurement
transparent plastics. No averaging
Individual material selection
is possible in the Set-
tings > Data record-
ing > Material selec-
tion menu.
1) The distance presets are
only possible with a IMP-
DSxx distance sensor.
2
, e.g. of
2) The thickness presets
are only possible with
a IMP-THxx thickness
sensor.
2
, e.g. of
Page 14
