Initial Operation

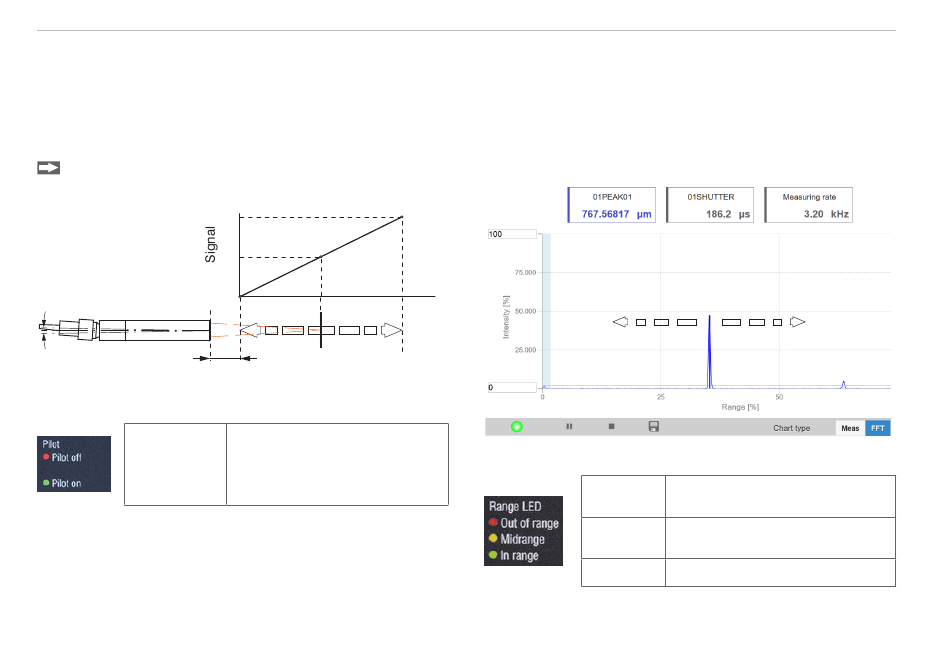

Positioning the Target, Distance Measurement

The red-light pilot laser supports you in aligning the
sensor to the target during commissioning.
Turn on or off the pilot laser in the menu Settings >
System settings.
Position the target (measurement object) as much
as possible in the mid of the measuring range.
100 %
max. ±1 °
Sensor SMR
The LED Range on the controller front indicates the
position of the target in relation to the sensor.
Green
IMS5x00
50
0
SMR MMR EMR
Target
Measuring range (MR)
Pilot laser is turned on and
off alternately, if no target or
outside the measuring range
You can also position the sensor using the FFT sig-
nal 1 . The interferometric measuring principle provides
measurement values in front of and behind the actual
measuring range. An incorrect measuring range dis-
tance can be recognized by the running direction of the
peak in the FFT signal. Inverse direction of FFT signal, if
the target is outside measuring range.
Dis-
tance
Distance between sensor
and target becomes smaller
Using the FFT signal for sensor positioning
Red
Yellow
Green
1) FFT = Fast Fourier Transformation, frequency signal
Distance between sensor
and target becomes greater
No target or target outside the
measuring range
Target close to mid of
measuring range
Target within measuring range
