Button Multifunction

The Multifunction button of the controller has multiple functions. It enables, e.g., to operate the light source.
The button is factory-set to the Pilotlaser on/off feature.
Key function
1 / 2

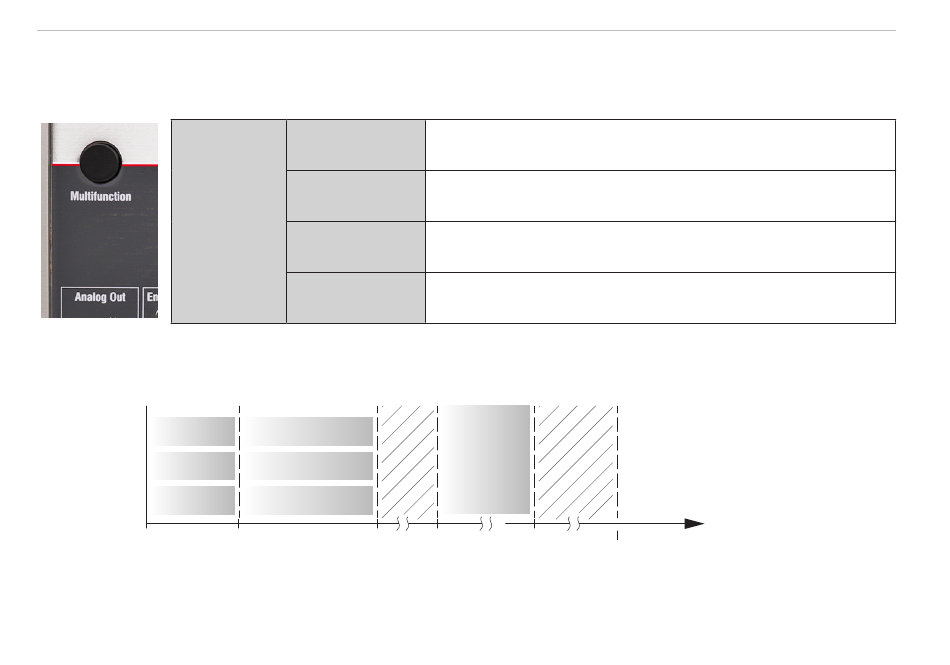

There are two defined time intervals for pressing the button; each of these can be assigned a function. All time inter-
vals are indicated by the LEDs flashing/lighting up.
Function 1
Master value
Pilot laser
SLED
0
IMS5x00
Set / reset
master value
Pilot laser
SLED
Inactive
Function 2
2 sec 5 sec
Starts or stops the master measurement of the selected signals
Turns on/off the pilot laser
Turns the light source on/off for the sensor
Key has no function
Factory
settings
10 sec 15 sec
Key
lock
x min time
Button press duration
