1 Piston seal
1 Tool for piston seal (6.2617.010)
Sleeve for inserting the new piston seal.
882 Compact IC plus – Anion

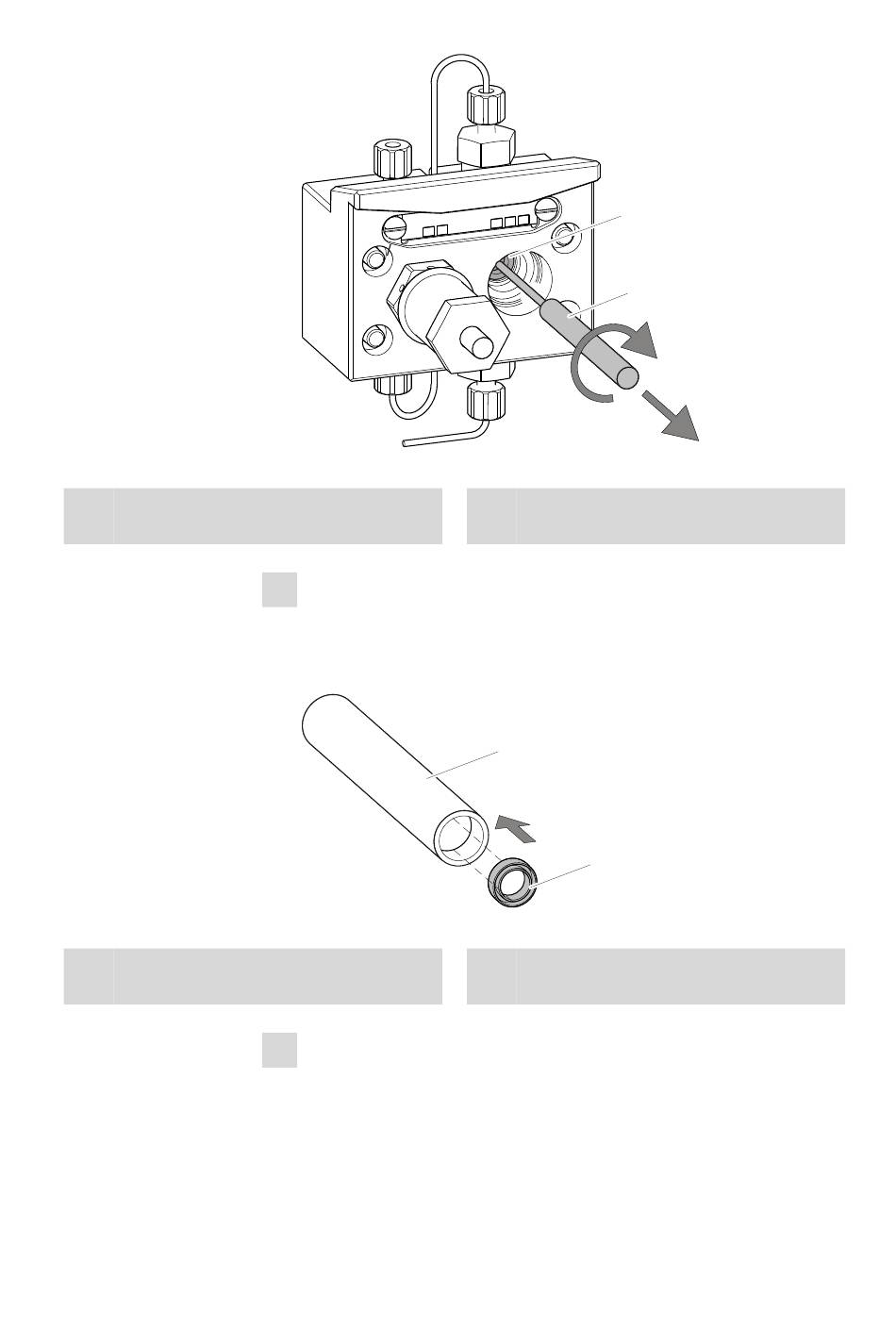

Figure 28 Removing the piston seal
2 Inserting the new piston seal into the tool
Insert the new piston seal tightly by hand into the recess of the
sleeve of the tool for the piston seal (27-2). The sealing springs must
be visible from the outside.
Figure 29 Inserting the piston seal into the tool
3 Inserting the new piston seal into the pump head
Guide the sleeve of the tool for the piston seal (27-2) with inserted
piston seal into the pump head and press the seal with the wide end
of the tool for the piston seal (27-1) into the pump head recess.
1
2
2 Tool for piston seal
Pin of the tool.
1
2
2 Piston seal
Order number: 6.2741.020
5 Handling and maintenance
