Figure 7 Capillary And Cable Feed-Throughs - Metrohm 882 Compact IC plus Manual

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
1 Capillary feed-through
For feeding capillaries from the front to the
rear of the instrument.
3 Capillary feed-through
For feeding capillaries from the front to the
left side of the instrument.
5 Capillary feed-through
At the door of the instrument. For feeding
capillaries out of the instrument.
7 Cable feed-through
At the rear of the instrument. For feeding
the detector cable out of the detector cham-
ber.
882 Compact IC plus – Anion
2
1
3

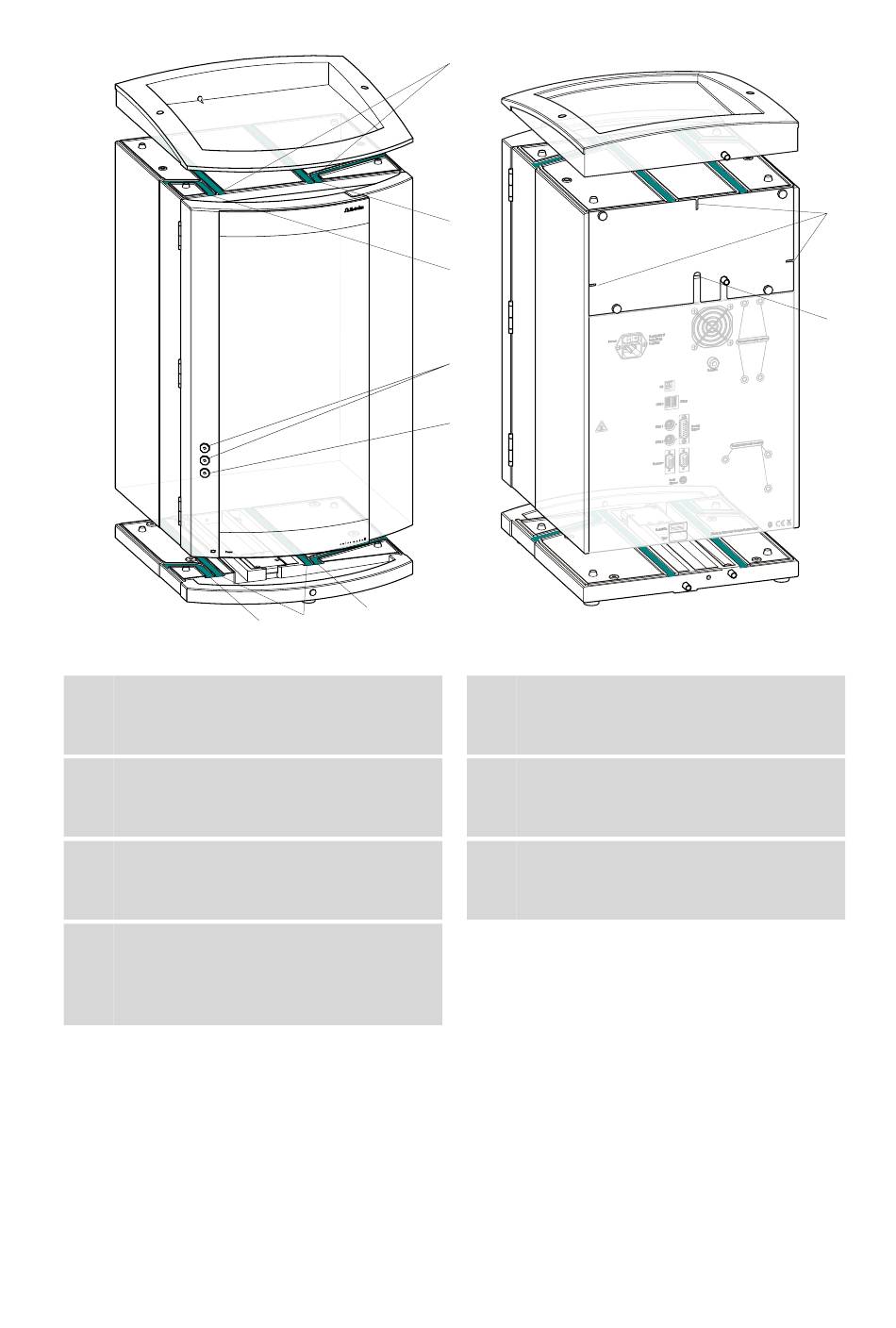

Figure 7 Capillary and cable feed-throughs
Do not feed capillaries through the Luer connectors (7-4). The capillaries
are fastened with PEEK pressure screws (6.2744.070) from inside to the
Luer connector. From outside, liquid can be aspirated or injected with a
syringe.
1
2
3
4
5
2 Capillary feed-through
Fro feeding capillaries from the front to the
right side of the instrument.
4 Luer connector
For connecting a (6.2816.020) syringe. For
manual sample feeding.
6 Capillary feed-through
At the rear of the instrument. For feeding
capillaries out of the detector chamber.
3 Installation
6
7
￭￭￭￭￭￭￭￭ 23
