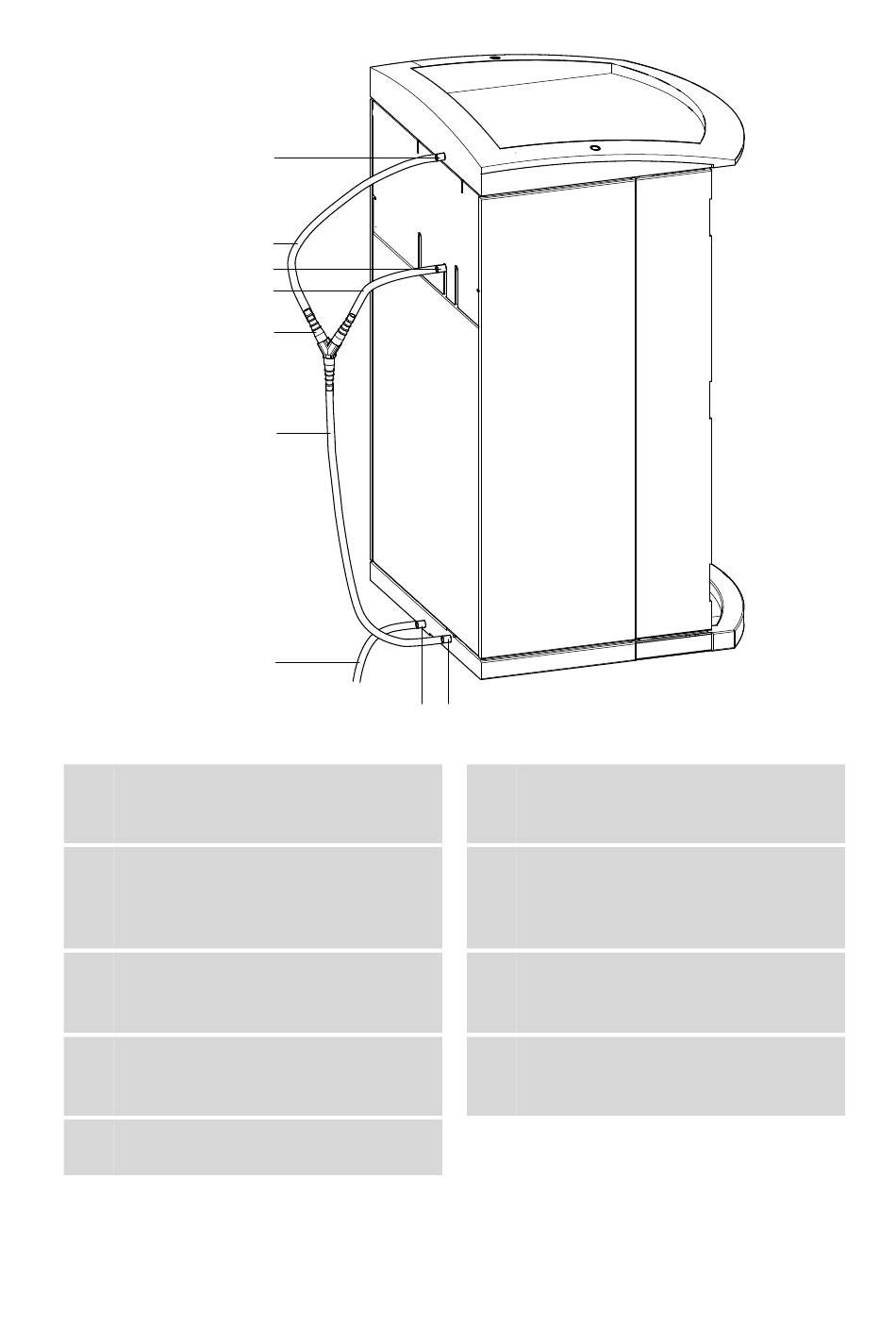

Figure 6 Drainage Tubings - Metrohm 882 Compact IC plus Manual

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
1 Drainage tubing connection
For draining escaped liquid from the cover.
3 Drainage tubing connection
For draining escaped fluid from the detector
chamber.
5
Y connector (6.1807.010)
For connecting the two drainage tubings
2 4
(6- ) and (6- ).
7 Drainage tubing
Section of the 6.1816.020 silicon tubing.
Guides escaped fluid into a waste container.
9 Drainage tubing connection
Leads to the leak sensor.
882 Compact IC plus – Anion
1
2
3
4
5
6
7
8
Figure 6 Drainage tubings
9
2 Drainage tubing
Section of the 6.1816.020 silicon tubing. For
draining escaped liquid from the cover.
4 Drainage tubing
Section of the 6.1816.020 silicon tubing. For
draining escaped fluid from the detector
chamber.
6
Drainage tubing
Section of the 6.1816.020 silicon tubing.
Guides escaped fluid to the leak sensor.
8 Drainage tubing connection
For draining escaped fluid.
