801 Stirrer
Manual
8.801.8001EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 801 and is the answer not in the manual?

Questions and answers

Related Manuals for Metrohm 801

Summary of Contents for Metrohm 801

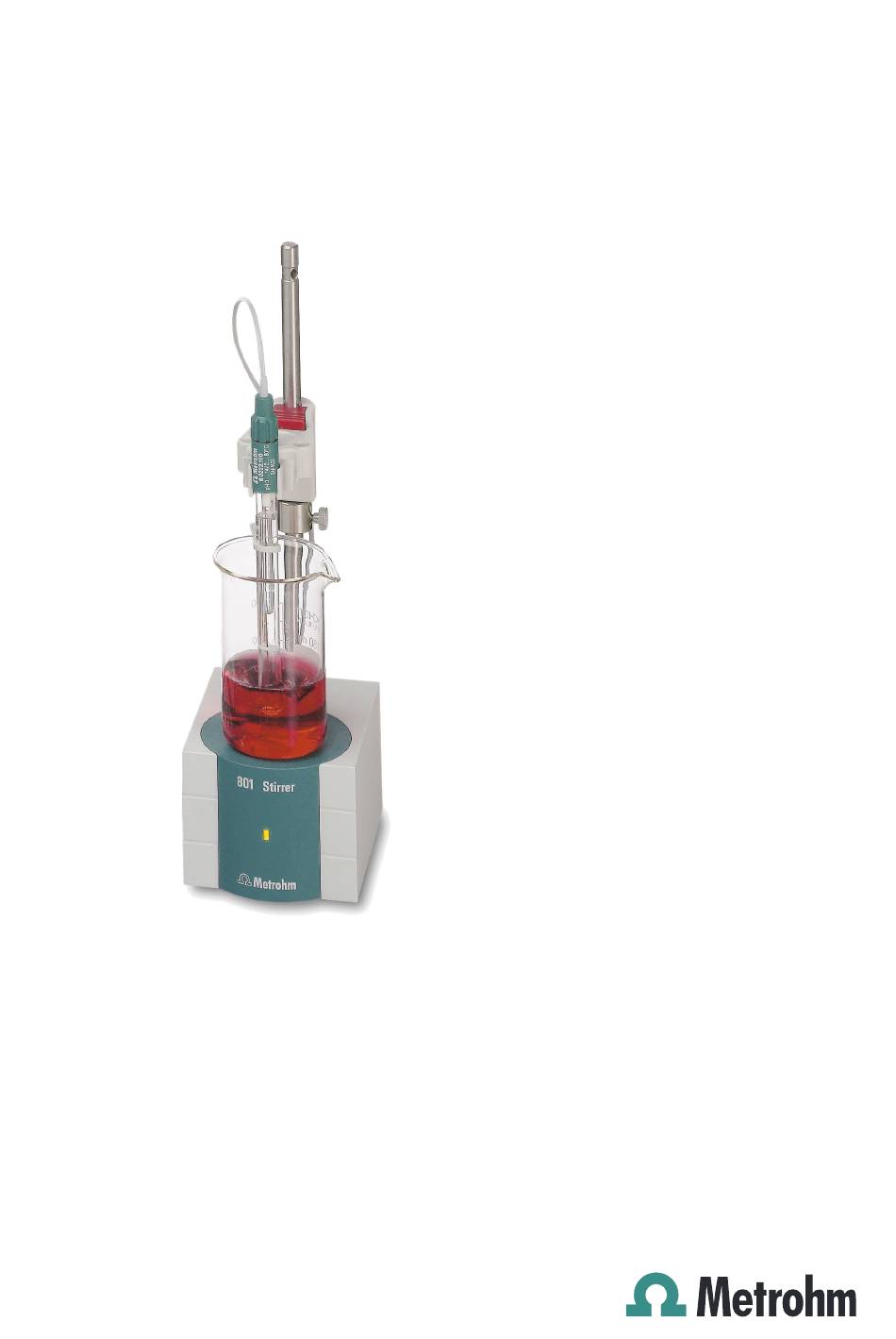

  • Page 1 801 Stirrer Manual 8.801.8001EN...
  • Page 3 Metrohm AG CH-9101 Herisau Switzerland Phone +41 71 353 85 85 Fax +41 71 353 89 01 info@metrohm.com www.metrohm.com 801 Stirrer Manual 8.801.8001EN 06.2010 ek...
  • Page 4 Teachware Metrohm AG CH-9101 Herisau teachware@metrohm.com This documentation is protected by copyright. All rights reserved. Although all the information given in this documentation has been checked with great care, errors cannot be entirely excluded. Should you notice any mistakes please send us your comments using the address given above.

  • Page 5: Table Of Contents

    Dimensions ................12 Material ................12 5 Conformity and warranty Declaration of Conformity ..........13 Quality Management Principles ........14 Warranty (guarantee) ............15 6 Accessories Scope of delivery ..............16 6.1.1 801 Stirrer 2.801.0010 (without stand) ........16 ￭￭￭￭￭￭￭￭ 801 Stirrer...
  • Page 6 ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Table of contents 6.1.2 801 Stirrer 2.801.0040 (with stand) ........17 Optional accessories ............19 6.2.1 801 Stirrer 2.801.0010, 2.801.0040 ........19 ￭￭￭￭￭￭￭￭ 801 Stirrer...
  • Page 7 Table of figures Table of figures Figure 1 Front 801 Stirrer ................5 Figure 2 Rear 801 Stirrer ................. 5 Figure 3 Connecting the 801 Stirrer .............. 10 Figure 4 Connecting the Dosino to the 801 Stirrer........10 ￭￭￭￭￭￭￭￭ 801 Stirrer...

  • Page 9: Introduction

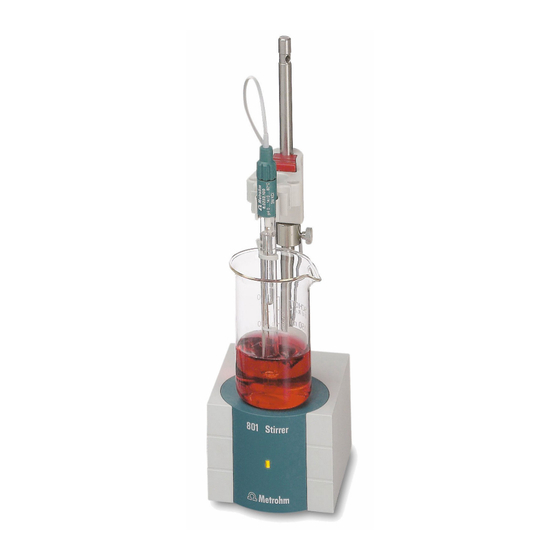

    1 Introduction 1 Introduction Instrument description The magnetic stirrer 801 Stirrer including base plate, support rod and elec- trode holder supplements the Titrino plus, Titrandos, Sample Processors, 805 Dosimats and 780/781 pH Meter. It is directly connected to an analysis device via an MSB connection cable.

  • Page 10: Safety Instructions

    The electrical safety when working with the instrument is ensured as part of the international standard IEC 61010. Warning Only personnel qualified by Metrohm are authorized to carry out service work on electronic components. Warning Never open the housing of the instrument. The instrument could be damaged by this.

  • Page 11: Working With Liquids

    Set up the instrument in a well-ventilated location (e.g. laboratory ￭ flue). Keep all sources of flame far from the workplace. ￭ Clean up spilled fluids and solids immediately. ￭ Follow the safety instructions of the chemical manufacturer. ￭ ￭￭￭￭￭￭￭￭ 801 Stirrer...

  • Page 12: Recycling And Disposal

    The correct disposal of your old equipment will help to prevent negative effects on the environment and public health. More details about the disposal of your old equipment can be obtained from your local authorities, from waste disposal companies or from your local dealer. ￭￭￭￭￭￭￭￭ 801 Stirrer...

  • Page 13: Overview Of The Instrument

    ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ 2 Overview of the instrument 2 Overview of the instrument Figure 1 Front 801 Stirrer LED function display Lights up, when the stirrer is switched on. M S B 3 .8 0 1 .3 0 Figure 2 Rear 801 Stirrer...

  • Page 14: Installation

    Place the instrument in a location of the laboratory which is suitable for operation, free of vibrations, protected from corrosive atmosphere, and contamination by chemicals. The instrument should be protected against excessive temperature fluctu- ations and direct sunlight. ￭￭￭￭￭￭￭￭ 801 Stirrer...

  • Page 15: Mounting The 801 Stirrer

    ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ 3 Installation Mounting the 801 Stirrer Mounting the stand 6.2001.060 6.2016.070 Mount the stand as follows: 1 Screw the 6.2001.060 stand plate with the accompanying four screws tightly to the bottom of the instrument. 2 Screw the 6.2016.070 stand plate with the hexagon screw (hexagon key supplied) firmly to the stand plate.
  • Page 16 ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ 3.2 Mounting the 801 Stirrer Fastening the magnetic stirrer Fasten the magnetic stirrer as follows: 1 Attach the magnetic stirrer on the support rod and push it down- wards. 2 With the clamping screw, fix the positioning height or the swing position of the magnetic stirrer.

  • Page 17: Connecting The 801 Stirrer

    4 Fix the position of the electrode holder with the aid of the clamping ring. Connecting the 801 Stirrer Connect the magnetic stirrer as follows: 1 Exit the control software. 2 Connect the connection cable of the magnetic stirrer to one of the sockets marked with MSB on the rear of the control device.
  • Page 18 Figure 3 Connecting the 801 Stirrer 3 Connecting an additional device (e.g. Dosimat or Dosino) to the MSB connector of the magnetic stirrer. Figure 4 Connecting the Dosino to the 801 Stirrer. 4 Start the control software. ￭￭￭￭￭￭￭￭ 801 Stirrer...

  • Page 19: Technical Specifications

    EN/IEC 61000-6-3: 2006 ￭ EN 55011 / CISPR 11: 2007 ￭ Immunity Standards fulfilled: EN/IEC 61326-1:2006 ￭ EN/IEC 61000-6-2: 2005 ￭ EN/IEC 61000-4-2: 2001 ￭ EN/IEC 61000-4-3: 2006 ￭ EN/IEC 61000-4-4: 2004 ￭ EN/IEC 61000-4-5: 2001 ￭ ￭￭￭￭￭￭￭￭ 801 Stirrer...

  • Page 20: Ambient Temperature

    (at a maximum of 85% humidity) Storage –20…+60 °C Transport –40…+60 °C Dimensions Width 90 mm Height (without 70 mm stand) Height (with 430 mm stand) Depth 140 mm Weight 613 g Material Polybutylene terephthalate (PBT) ￭￭￭￭￭￭￭￭ 801 Stirrer...

  • Page 21: Conformity And Warranty

    Safety requirements for electrical equipment for measurement, control and laboratory use Manufacturer Metrohm Ltd., CH-9101 Herisau/Switzerland Metrohm Ltd. is holder of the SQS certificate ISO 9001:2000 Quality man- agement system for development, production and sales of instruments and accessories for ion analysis. ￭￭￭￭￭￭￭￭...

  • Page 22: Quality Management Principles

    Components All components used in the Metrohm instruments have to satisfy the qual- ity standards that are defined and implemented for our products. Suppli- ers of components are audited by Metrohm as the need arises.

  • Page 23: Warranty (Guarantee)

    Warranty (guarantee) Metrohm guarantees that the deliveries and services it provides are free from material, design or manufacturing errors. The warranty period is 36 months from the day of delivery; for day and night operation it is 18 months.

  • Page 24: Accessories

    801 Stirrer 2.801.0010 (without stand) Qty. Order no. Description 1.801.0010 801 Stirrer Magnetic stirrer with permanently attached cable for MSB (Metrohm Serial Bus). 6.1903.020 Stirring bar / 16 mm Stirring bar with magnetic core, PTFE covering, 16 mm long. Material:...
  • Page 25 Stirring bar with magnetic core, PTFE covering, length 25 mm Material: PTFE Outer diameter (mm): Length (mm): 6.2001.060 Stand plate without support rod For mounting the 801, 804, 803 stirrers on a Titrando, Titrino plus, Dosimat plus and on the 856 and 867 measuring modules. ￭￭￭￭￭￭￭￭ 801 Stirrer...
  • Page 26 Support rod / 400 mm Material: Steel, stainless 18/8 Outer diameter (mm): Length (mm): 6.2021.020 Electrode holder Electrode holder for 4 electrodes and 2 buret tips Material: Plastic 6.2621.070 Hexagon key 5 mm 5 mm Length (mm): ￭￭￭￭￭￭￭￭ 801 Stirrer...
  • Page 27 Order no. Description 6.2001.090 Base plate two-sided Double stand plate for fixing two 801, 803, 804 stirrers and a Titrando 6.2151.010 Cable MSB plug / socket Extension cable for MSB connections and for Touch Control - Titrando. Mini DIN socket - Mini DIN plug Length (m): ￭￭￭￭￭￭￭￭...
