3.6 Installations on the rear of the instrument

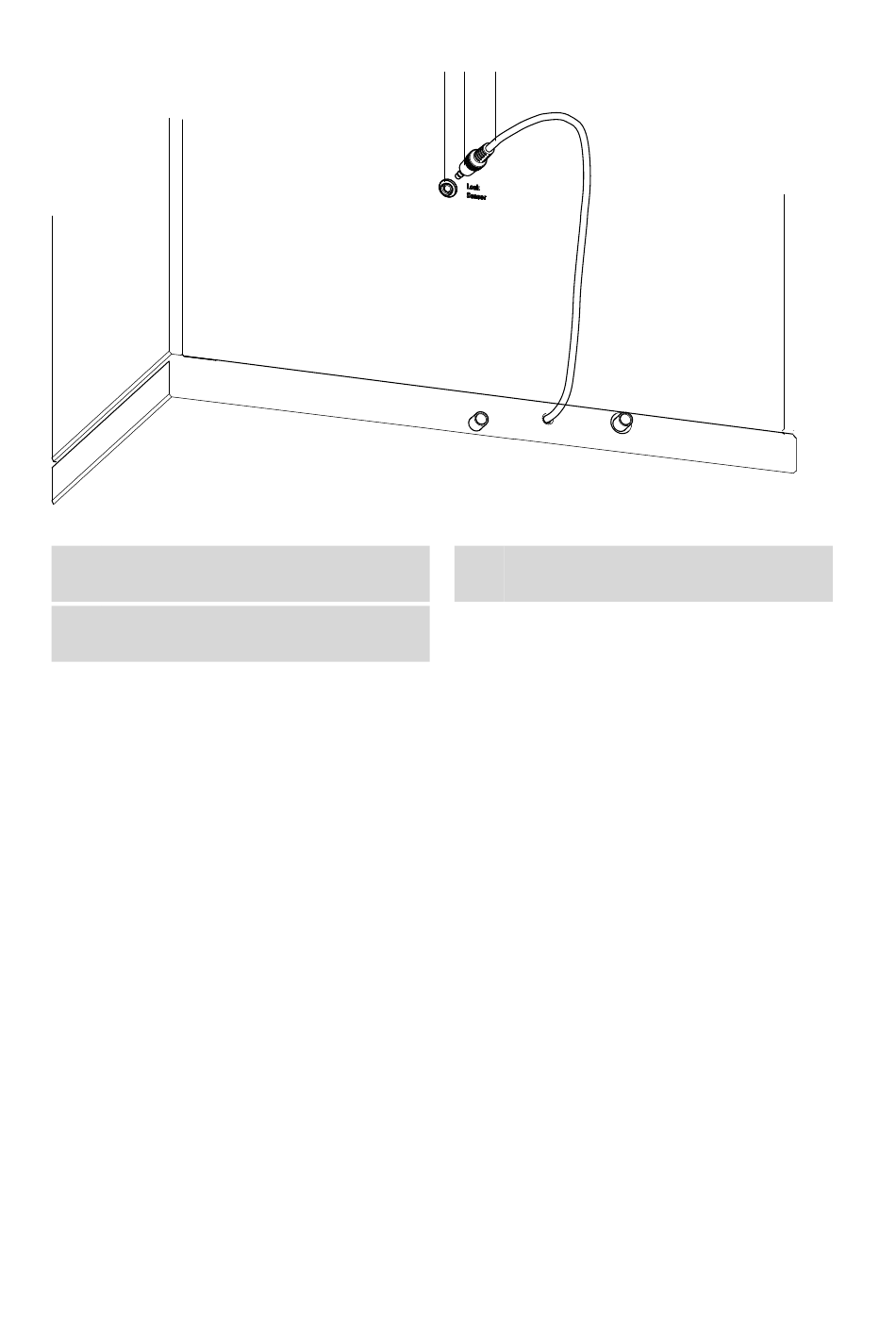

Figure 5 leak sensor – plugging in
1 Leak sensor connection socket
Is labeled with Leak Sensor.
3 Leak sensor connection cable
Extractable. Coiled up in the base tray.
3.6.3

Drainage tubings

20 ￭￭￭￭￭￭￭￭
Fluid that escapes in the covering plate or in the detector chamber flows
through the drainage tubings into the base tray and past the leak sensor
into the waste container. This ensures that any leaks in the system will be
detected by the leak sensor.
1 2 3
2 Leak sensor connector plug
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
882 Compact IC plus – Anion
