3.13 Peristaltic pump
1 Union nut
3 Tubing olive
40 ￭￭￭￭￭￭￭￭
1

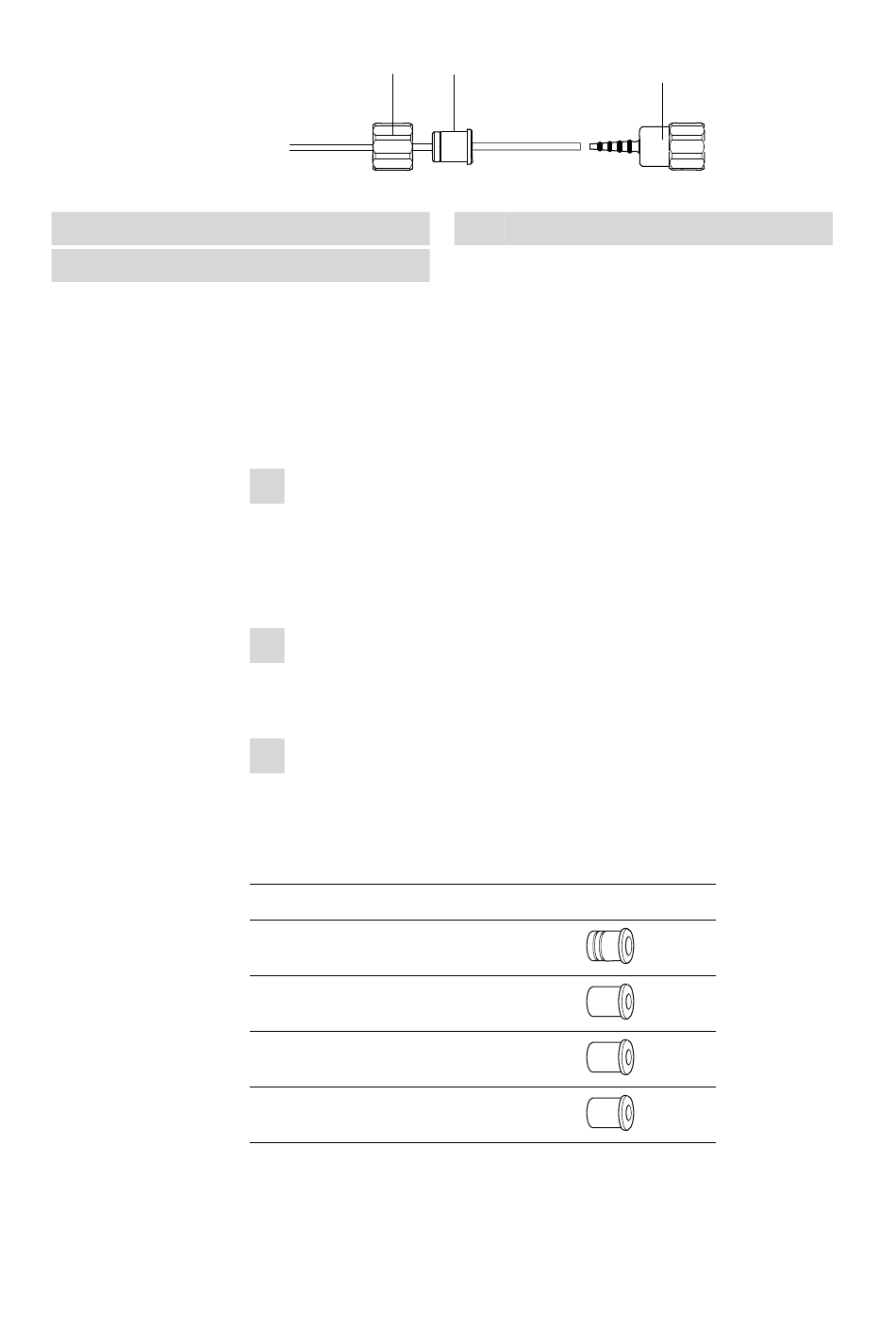

Figure 23 Install pump tubing connection without filter
Slide union nut (23-1) onto the pump tubing.
￭
Select a suitable adapter (23-2) and slide it onto the pump tubing.
￭
The type of adapter depends on the pump tubing (see Table 1,
page 40).
Place the tubing olive (23-3) onto the pump tubing.
￭
Screw the union nut (23-1) onto the tubing olive (23-3).
￭
4 Inserting the pump tubing
Press the contact pressure lever all the way down.
￭
Place the pump tubing in the tubing cartridge. The stoppers
￭
(21-3) must snap into the corresponding holders of the tubing
cartridge.
5 Inserting the tubing cartridge
Hang the tubing cartridge in the mounting pin and press in the
￭
cartridge holder until the snap-action lever snaps in.
6 Connecting the capillaries
Screw the respective capillaries tightly to the two tubing olives
￭
with PEEK pressure screws (21-1).
Table 1 Pump tubings and suitable adapters
Pump tubing
6.1826.020 (blue/blue)
6.1826.310 (orange/green)
6.1826.320 (orange/yellow)
6.1826.330 (orange/white)
2
2 Adapter
Adapter
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
3
882 Compact IC plus – Anion
