3.8 Eluent

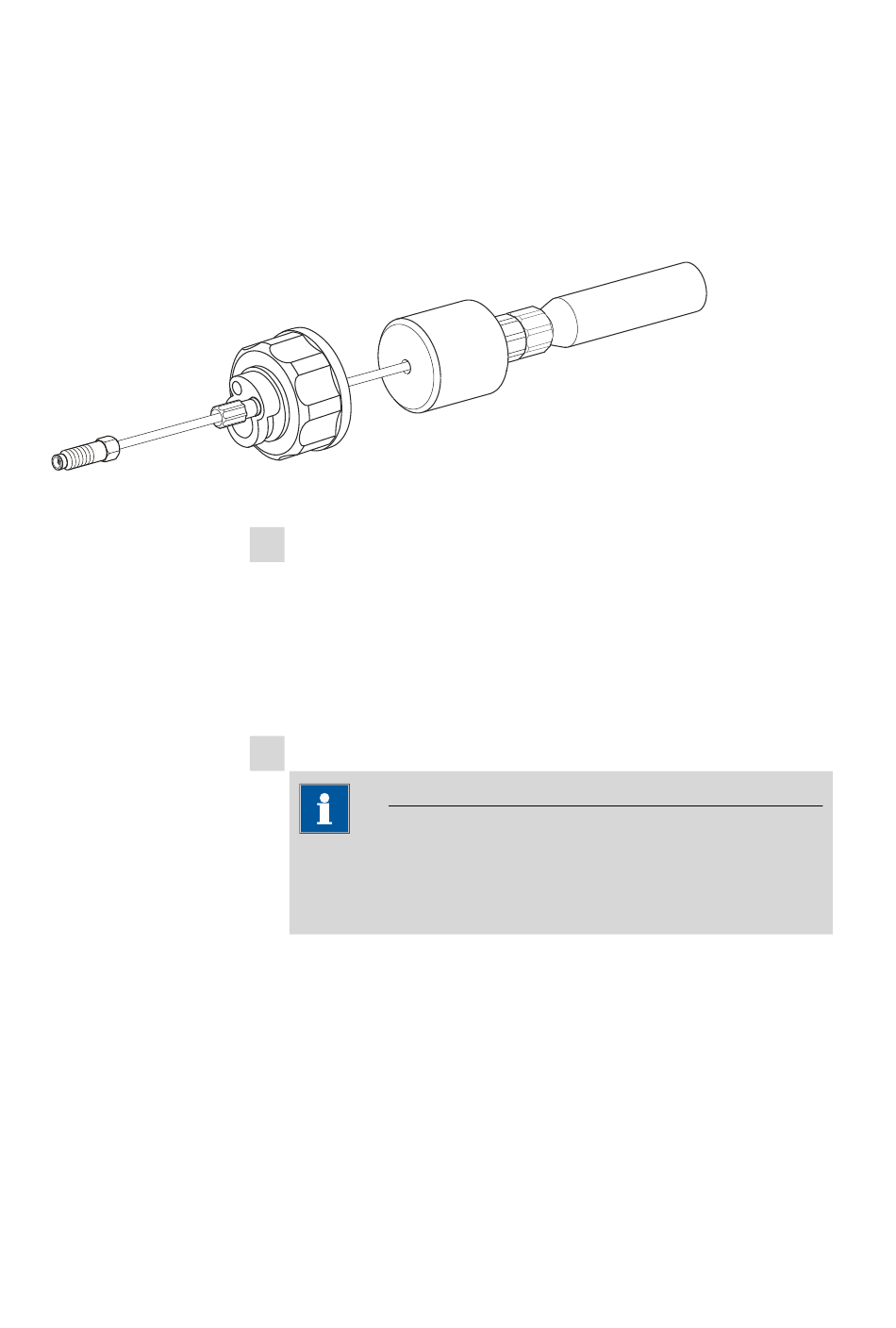

Figure 11 Eluent aspiration tubing fully equipped.
26 ￭￭￭￭￭￭￭￭
Slide the tubing weighting (10-3) onto the eluent aspiration tub-
￭
ing (10-1).
Slide the clamping screw (10-4) onto the eluent aspiration tubing
￭
(10-1).
Insert eluent aspiration tubing (10-1) into the aspiration filter
￭
(10-5). The end of the tubing should approximately reach to the
center of the aspiration filter.
Screw together clamping screw (10-4) and filter holder (9-1).
￭
5 Mounting eluent aspiration tubing to the eluent bottle
Insert the eluent aspiration tubing into the eluent bottle (12-10).
￭
Fasten the completely equipped bottle attachment (10-2) on the
￭
eluent bottle (12-10). The aspiration filter (12-6) must rest on the
base of the eluent bottle.
Close the remaining small opening on the bottle attachment with
￭
a threaded stopper (12-14) from the accessories set.
6 Mounting the adsorber tube
Note
If alkaline eluents and eluents with lower buffer capacity are used,
the eluent bottle must be equipped with an adsorber tube filled
with CO adsorber (12-4).
2
First, place a piece of cotton (12-3), then the CO
￭
in the large opening of the adsorber tube (12-2) and close with
the plastic cover.
Fasten the adsorber tube (12-2) onto the bottle attachment
￭
(12-11) using the SGJ clip (12-12).
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
adsorber (12-4)
2
