Summary of Contents for Metrohm 804 Ti Stand

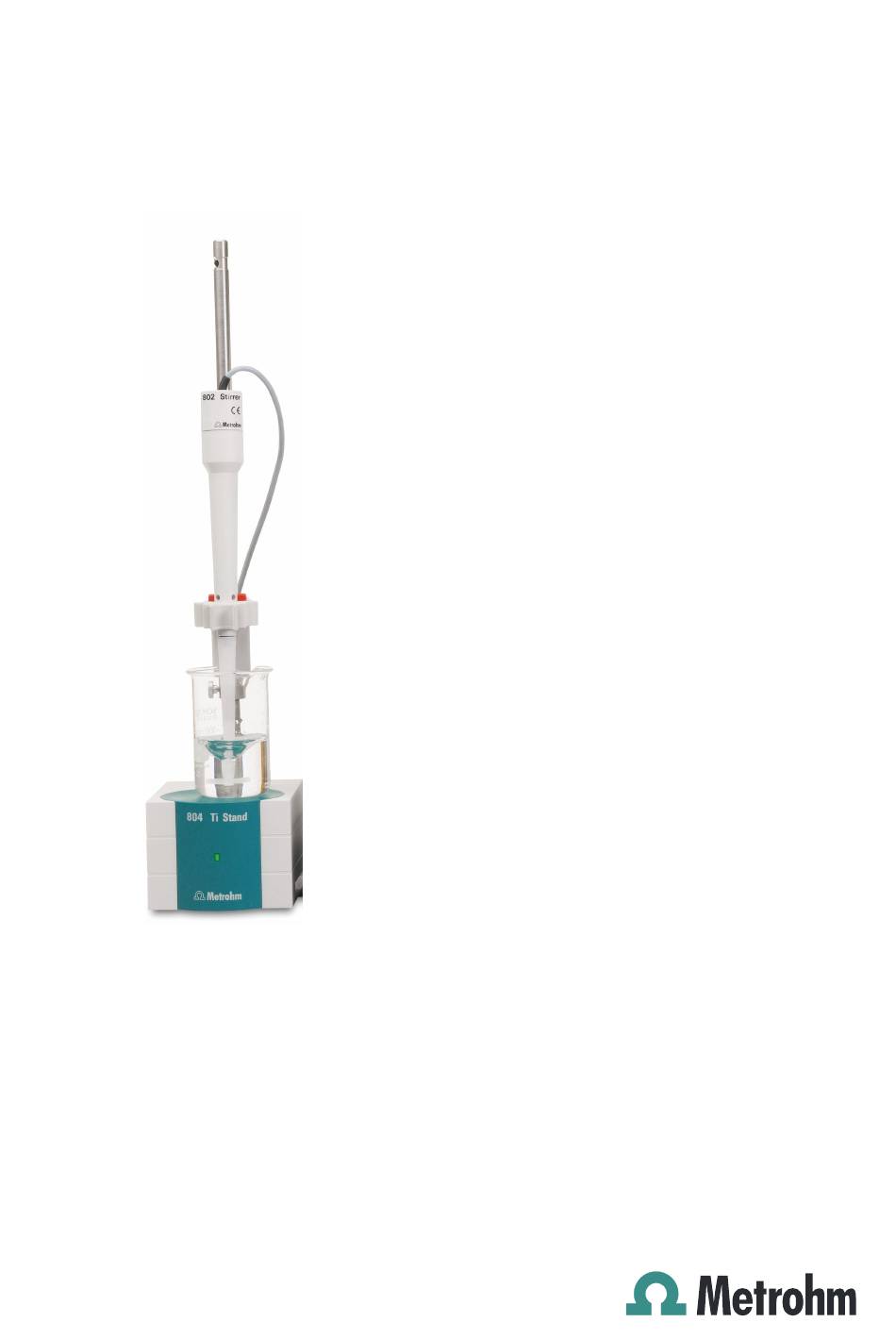

- Page 1 804 Ti Stand Manual 8.804.8001EN / 2019-09-26...
- Page 3 Metrohm AG CH-9100 Herisau Switzerland Phone +41 71 353 85 85 Fax +41 71 353 89 01 info@metrohm.com www.metrohm.com 804 Ti Stand Manual 8.804.8001EN / 2019-09-26...
- Page 4 Technical Communication Metrohm AG CH-9100 Herisau techcom@metrohm.com This documentation is protected by copyright. All rights reserved. This documentation has been prepared with great care. However, errors can never be entirely ruled out. Please send comments regarding possible errors to the address above.
-
Page 5: Table Of Contents
Packaging ................6 3.1.2 Checks ..................6 3.1.3 Location .................. 6 Mounting the 804 Ti Stand ..........7 Connecting the 804 Ti Stand ..........10 4 Technical specifications Rotational speed 804 Ti Stand .......... 11 Power supply ..............11 Ambient temperature ............11 Dimensions ................ - Page 6 Figure 1 Front 804 Ti Stand ................5 Figure 2 Rear 804 Ti Stand ................5 Figure 3 Connecting the 804 Ti Stand ............10 Figure 4 Connecting the Dosino to the 804 Ti Stand ........10 ￭￭￭￭￭￭￭￭ 804 Ti Stand...
-
Page 7: Introduction

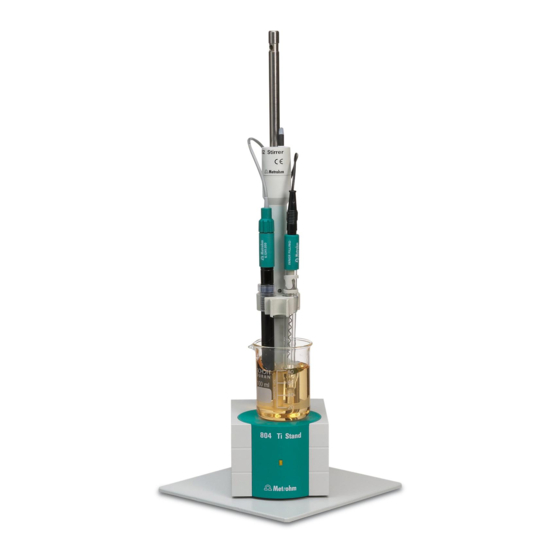

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ 1 Introduction 1 Introduction Instrument description The 804 Ti Stand is a titration stand and controller for the propeller stirrer 802 Stirrer. The titration stand is directly connected to an analysis device via an MSB connection cable. About the documentation... -
Page 8: Safety Instructions
The electrical safety when working with the instrument is ensured as part of the international standard IEC 61010. WARNING Only personnel qualified by Metrohm are authorized to carry out service work on electronic components. WARNING Never open the housing of the instrument. The instrument could be damaged by this. -
Page 9: Working With Liquids
Set up the instrument in a well-ventilated location (e.g. fume cup- ￭ board). Keep all sources of flame far from the workplace. ￭ Clean up spilled liquids and solids immediately. ￭ Follow the safety instructions of the chemical manufacturer. ￭ ￭￭￭￭￭￭￭￭ 804 Ti Stand... -
Page 10: Recycling And Disposal
The correct disposal of your old instrument will help to prevent negative effects on the environment and public health. More details about the disposal of your old instrument can be obtained from your local authorities, from waste disposal companies or from your local dealer. ￭￭￭￭￭￭￭￭ 804 Ti Stand... -
Page 11: Device Overview
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ 2 Device overview 2 Device overview Figure 1 Front 804 Ti Stand LED function display Lights up, when the stirrer is switched on. M S B 3 .8 0 4 .3 0 0 Figure 2 Rear 804 Ti Stand... -
Page 12: Installation
Place the instrument in a location of the laboratory which is suitable for operation and free of vibrations and which provides protection against corrosive atmosphere and contamination by chemicals. The instrument should be protected against excessive temperature fluctua- tions and direct sunlight. ￭￭￭￭￭￭￭￭ 804 Ti Stand... -
Page 13: Mounting The 804 Ti Stand
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ 3 Installation Mounting the 804 Ti Stand Mounting the stand 6.2001.060 6.2016.070 Mount the stand as follows: 1 Screw the 6.2001.060 stand plate with the accompanying four screws tightly to the bottom of the instrument. 2 Screw the 6.2016.070 stand plate with the hexagon screw (hexagon key supplied) firmly to the stand plate. - Page 14 ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ 3.2 Mounting the 804 Ti Stand Fastening the titration stand Fasten the titration stand as follows: 1 Attach the titration stand on the support rod and push it down- wards. 2 With the clamping screw, fix the positioning height or the swing position of the titration stand.
- Page 15 Mounting the propeller stirrer as follows: 1 Insert the propeller stirrer 802 Stirrer without the stirring propeller from above into the center opening of the electrode holder. 2 Plug the stirring propeller from below to the propeller stirrer. ￭￭￭￭￭￭￭￭ 804 Ti Stand...
-
Page 16: Connecting The 804 Ti Stand
3 Connecting an additional device (e.g. Dosimat or Dosino) to the MSB connector of the titration stand. MS B 3.80 4.30 0X Figure 4 Connecting the Dosino to the 804 Ti Stand 4 Start the control software. ￭￭￭￭￭￭￭￭ 804 Ti Stand... -
Page 17: Technical Specifications
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ 4 Technical specifications 4 Technical specifications Rotational speed 804 Ti Stand ±1700...1900 U/min Maximum rota- tional speed ±15 steps Setting of the rotational speed ±115...125 U/min Increase of rota- tional speed per step Power supply Voltage +12 V, -12 V, +5 V... -
Page 18: Accessories
The PDF file with the accessories data is created. NOTICE Once you have received your new product, we recommend download- ing the accessories list from the Internet, printing it out and keeping it together with the manual for reference purposes. ￭￭￭￭￭￭￭￭ 804 Ti Stand...
