Vario Indicator Unit
.
The analog vario unit
By contrast, the analog vario unit is much simpler, offering only one screen and no settings on
the device itself.
. .
Volume setting
A pilot can change volume in two ways:
• Turning the Volume push-rotary knob on the vario indicator unit
• Going though the MC sub-page on the main unit, as described earlier
Once the Volume sub-page is open, you can close it by pressing the push-rotary knob on the
digital vario indicator, or by waiting for
. .
Mechanical needle
The device consists of an analog (mechanical) needle, which can also be assigned different to
show different ight parameters, in both circling and straight ight modes:
• Vario
• SC
• Netto
• Relative
• G-force
The actual scale of the mechanical needle and the units in which the values are displayed, are
shown in the far top-right corner of the screen. These can be set to different values, although
the markings on the physical scale will stay the same and are set at the factory in regards to
the customer's requests.
Outlining the edge of the screen, towards the needle, is the Speed To Fly arc (coloured in
green). This arc functions the same as already described previously for the digital indicator.
Device manual
Figure

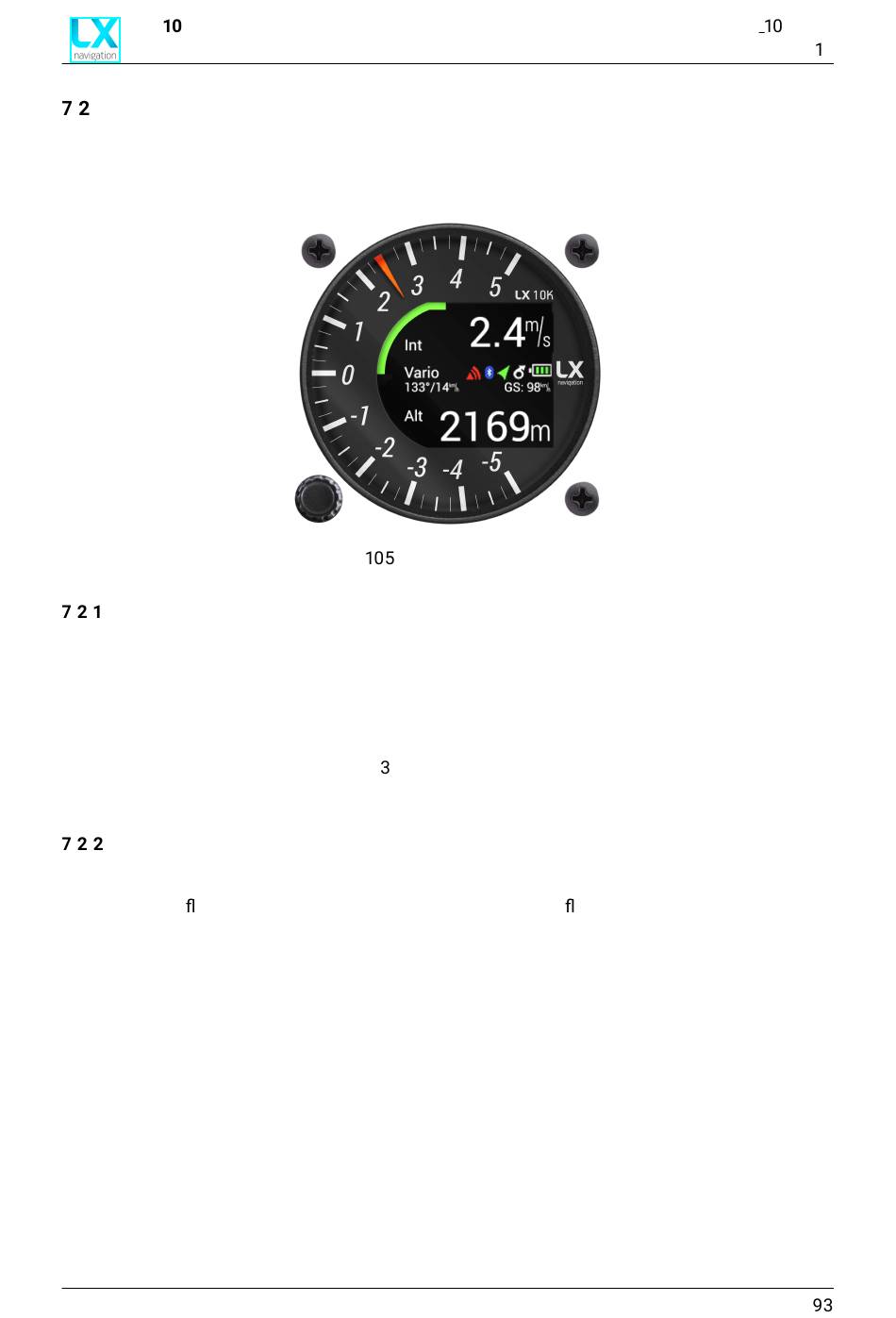

. Analog vario indicator
seconds for it to auto-close.
