The digital vario unit

The digital vario unit has three main pages:

• Main page

• Thermal assistant page
• Vario setup page
The digital vario unit has a single push-rotary knob, labeled with a loudspeaker. This push-rotary
is used for commanding the indicator in two ways:
• Rotating the push-rotary will change the volume of the vario/SC tune
• Pressing the push-rotary shortly will transition to the Thermal assistant page
• Long-pressing the push-rotary knob for seconds will open the Setup menu on the vario
indicator unit.
. . Main page
The main page holds primary ight information. It consists of the digital needle scale, which
is shown on all pages, a clock, either two or four user settable indicators, status indicators, a
wind indicator and an OAT indicator.
. . .

Digital needle scale

The digital indicator does not use a needle-type pointer for showing values on the circular
scale, but rather a solid colour.
Positive values are shown with a solid red arc, ranging from
values are shown with a solid blue, ranging from to the actual value. The solid arcs with their
large surface and potent colours help show the desired values in a very clear attention-drawing
manner. The impact of solid area digital needles is shown with the two gures below.
Device manual

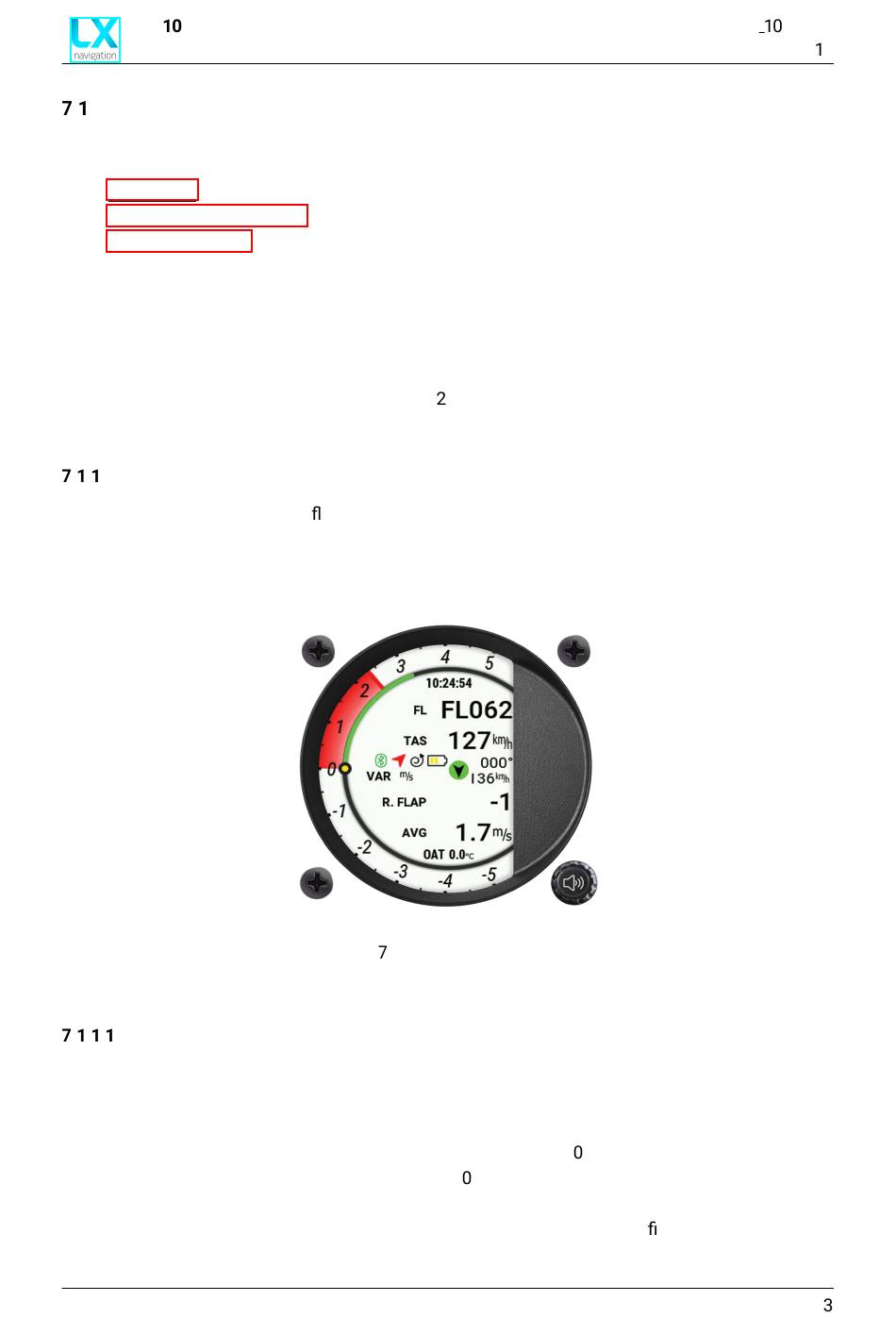

Figure 8. Main page overview
