You can set proper value in Trigger Delay, and its range is 0 μs to 16000000 μs.

6.4.3 Trigger Activation

The camera supports trigger acquisition in the rising edge or falling edge of external signal. The
principle and parameter of trigger activation are shown below.
Trigger Activation
Rising edge
Falling edge
CameraLink Line Scan Camera

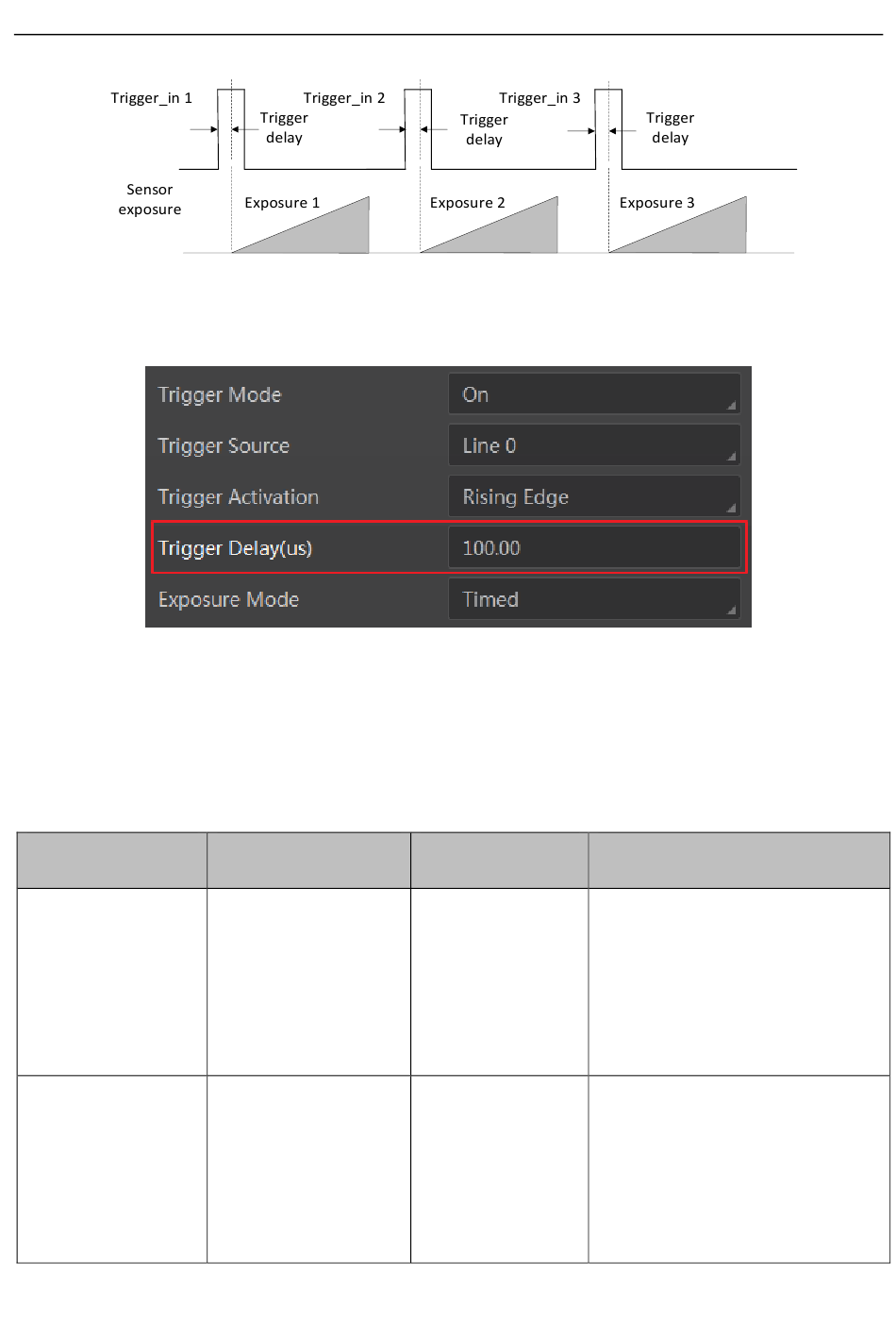

Figure 6-27 Signal Delay Sequence Diagram
Figure 6-28 Set Trigger Delay
Table 6-4 Trigger Activation Principle and Parameter
Parameter
Acquisition Control >
Trigger Activation
Acquisition Control >
Trigger Activation
User Manual
·
Parameter Value
Rising Edge
Falling Edge
31
Principle
Rising Edge refers to the rising
edge of the trigger signal is
valid, that is camera exposure
and acquisition at the beginning
of the rising edge of the trigger
signal.
Falling Edge refers to the falling
edge of the trigger signal is
valid, that is camera exposure
and acquisition at the beginning
of the falling edge of the trigger
signal.
