8.2 I/O Wiring

Here we take 4K camera as an example for I/O wiring, and these wirings are applicable to 8K
camera too.

8.2.1 Differential Singal Source Outputs Differential Signal

The camera can input differential signal via Line 0 or Line 3. 5 V differential signal source can be
selected to output differential signal. The specific wirings are shown below.

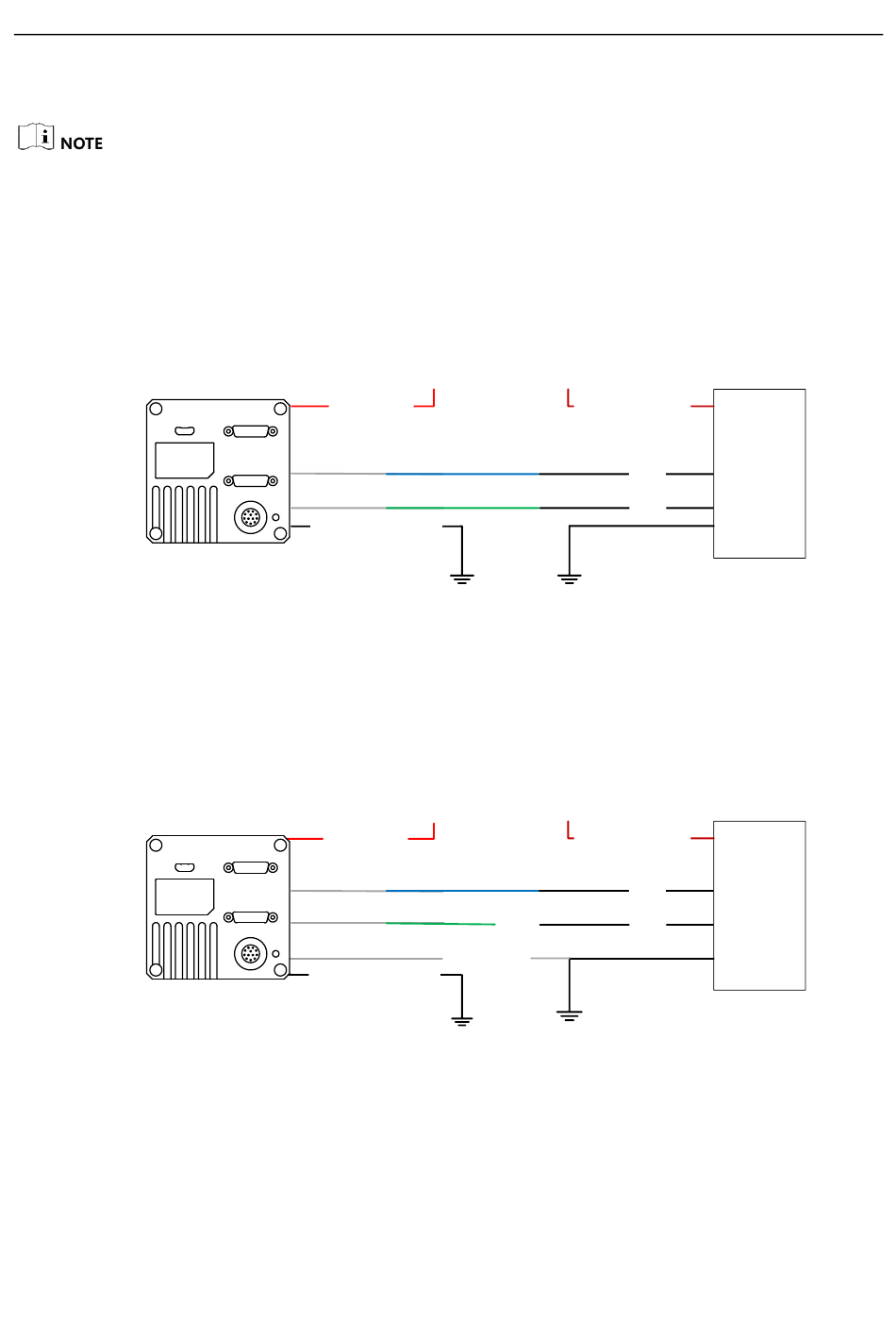

Figure 8-7 5 V Differential Signal Source Outputs Differential Signal

8.2.2 Differential Signal Source as Single-ended Signal

The specific wirings of 5 V and 12 V differential signal sources outputting single-ended signal are
shown below.
Figure 8-8 5 V and 12 V Differential Signal Sources Output Single-ended Signal

8.2.3 Single-ended Signal Source Outputs Single-ended Signal

The specific wirings of 5 V and 12 V single-ended signal sources outputting single-ended signal are
shown below.
CameraLink Line Scan Camera
PWR
Camera Power
Input 0 Positive(line0)or Input 1 Positive (Line3)
Input 0 Negative (line0)or Input 1 Negative (Line3)
Camera Power Ground
Camera GND
PWR
Camera Power
Input 0 Positive (Line0) or Input 1 Positive (Line3)
Input 0 Negative (Line0) or Input 1 Negative (Line3)
Camera Power Ground
Camera GND
User Manual
·
VCC
Signal Source Power
Signal Source GND
VCC
Signal Source Power
Hang
Signal Ground
Signal Source GND
41
Differential
Signal
OUT A
Source
OUT Ã
Differential
OUT A
Signal
Source
OUT Ã
