2.1 Interface Description

For different models of cameras, they all have a 12-pin Hirose connector, and pin definitions
are as follows.
No. Signal
1 GND
2 DC_PWR
3 IO_IN0_P
4 IO_IN0_N
5 GND
6 IO_IN1_P
7 IO_IN1_N
8 Reserved
9 IO_OUT0_P
10 IO_OUT0_N
CameraLink Line Scan Camera

Chapter 2 Interface and Indicator

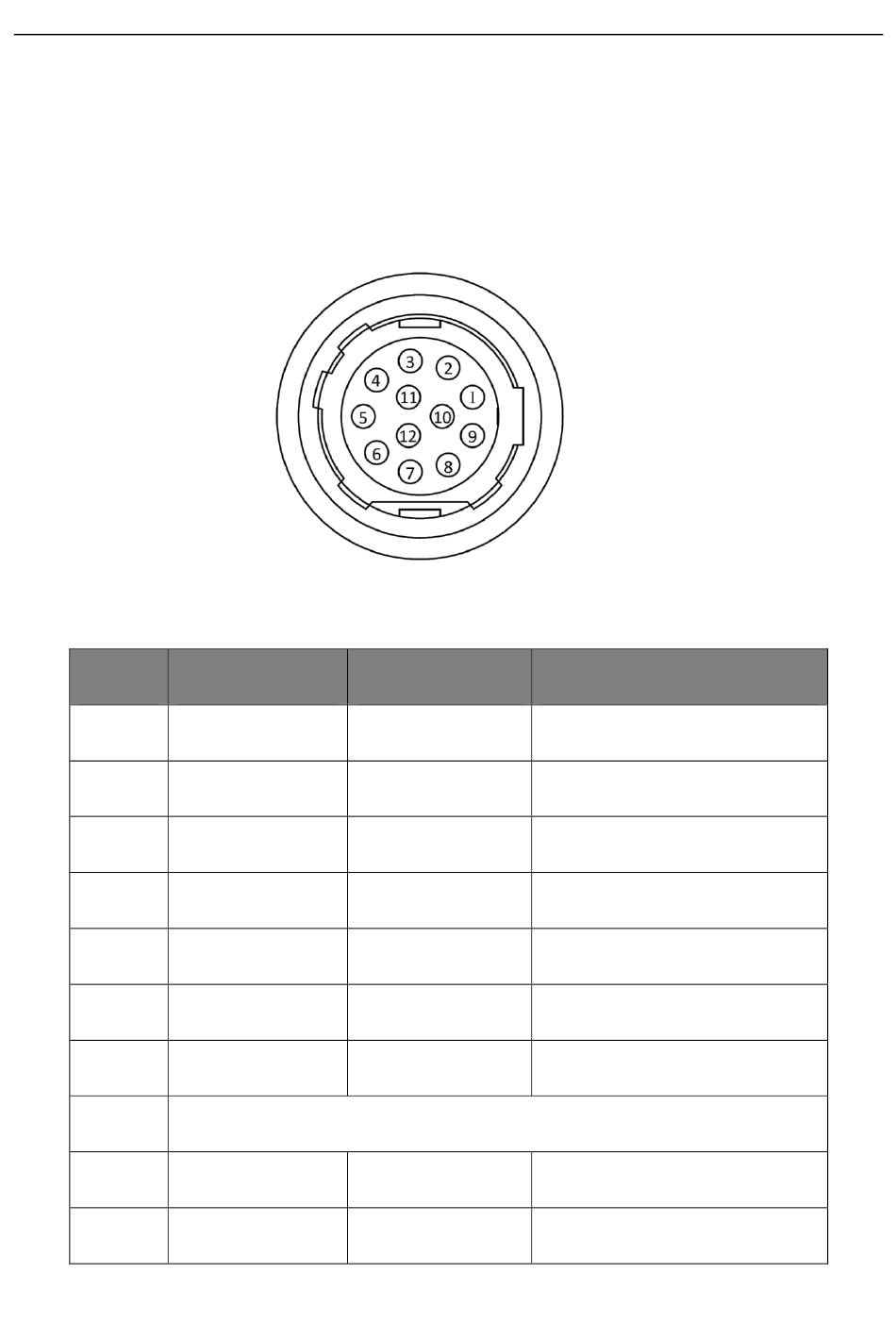

Figure 2-1 12-pin Power and I/O Interface
Table 2-1 Description
I/O Signal Source
--
--
Line 0+
Line 0-
--
Line 3+
Line 3-
Line 1+
Line 1-
User Manual
·
Description
Camera power supply ground
Camera power supply
Differential input 0+
Differential input 0-
Signal ground
Differential input 1+
Differential input 1-
Differential output 0+
Differential output 0-
