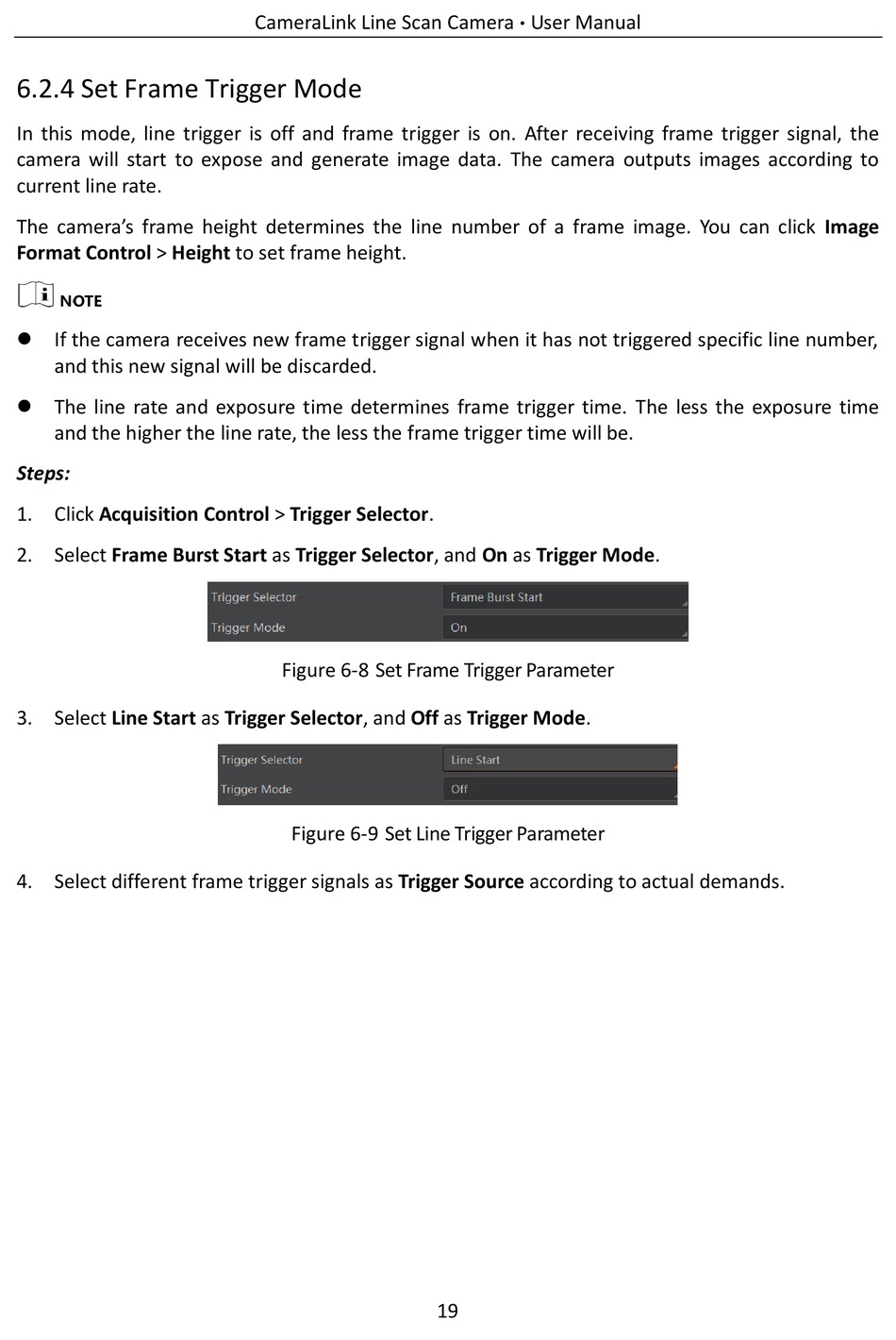

6.2.4 Set Frame Trigger Mode

In this mode, line trigger is off and frame trigger is on. After receiving frame trigger signal, the
camera will start to expose and generate image data. The camera outputs images according to
current line rate.
The camera's frame height determines the line number of a frame image. You can click Image
Format Control > Height to set frame height.
 If the camera receives new frame trigger signal when it has not triggered specific line number,
and this new signal will be discarded.
 The line rate and exposure time determines frame trigger time. The less the exposure time
and the higher the line rate, the less the frame trigger time will be.
Steps:
1. Click Acquisition Control > Trigger Selector.
2. Select Frame Burst Start as Trigger Selector, and On as Trigger Mode.
3. Select Line Start as Trigger Selector, and Off as Trigger Mode.
4. Select different frame trigger signals as Trigger Source according to actual demands.
CameraLink Line Scan Camera
Figure 6-8 Set Frame Trigger Parameter
Figure 6-9 Set Line Trigger Parameter
