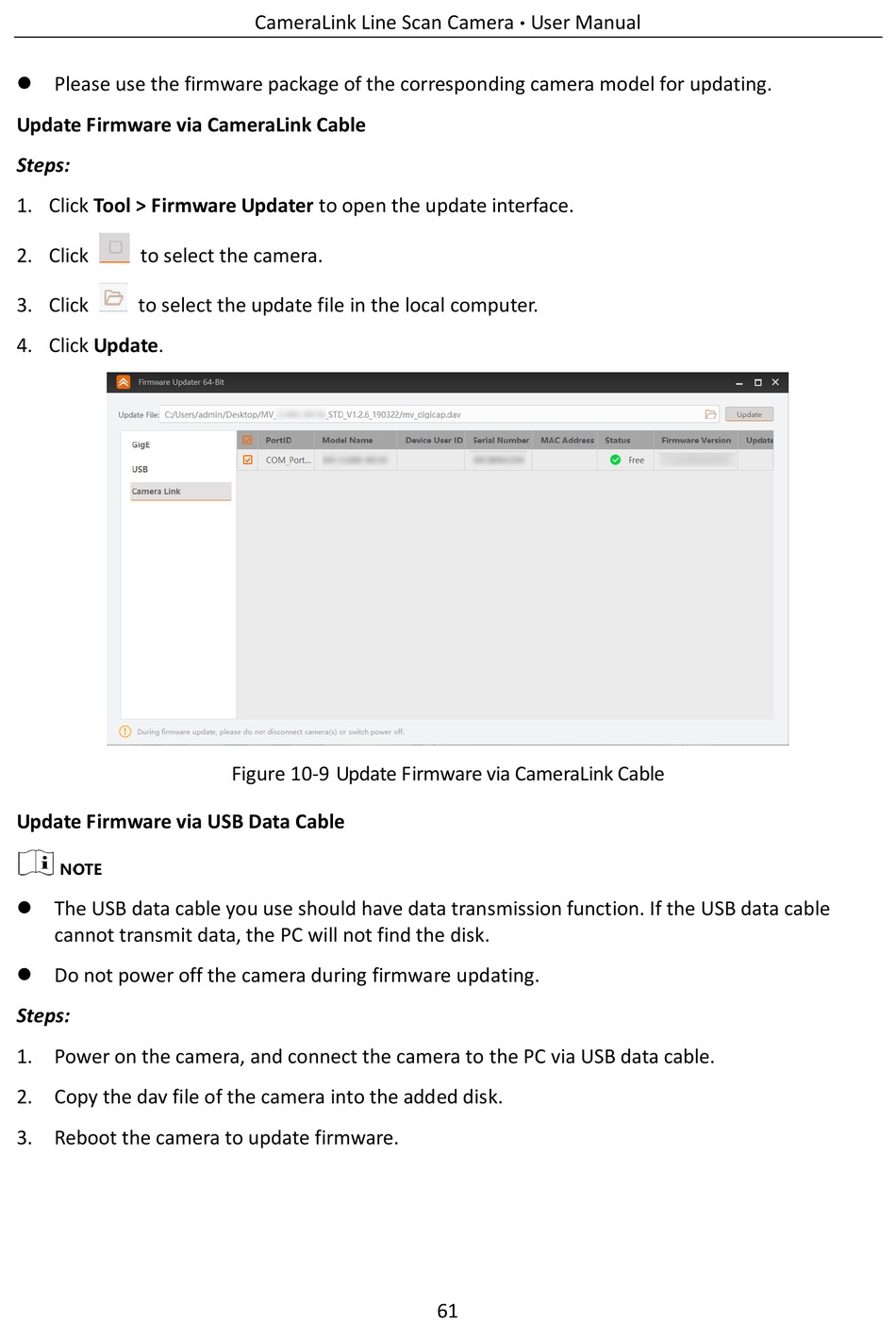

HikRobot CameraLink User Manual page 71

CameraLink Line Scan Camera User Manual
·
 Please use the firmware package of the corresponding camera model for updating.
Update Firmware via CameraLink Cable
Steps:
1. Click Tool > Firmware Updater to open the update interface.
2. Click to select the camera.
3. Click to select the update file in the local computer.
4. Click Update.
Figure 10-9 Update Firmware via CameraLink Cable
Update Firmware via USB Data Cable
 The USB data cable you use should have data transmission function. If the USB data cable
cannot transmit data, the PC will not find the disk.
 Do not power off the camera during firmware updating.
Steps:
1. Power on the camera, and connect the camera to the PC via USB data cable.
2. Copy the dav file of the camera into the added disk.
3. Reboot the camera to update firmware.
61
