Media Drive LEDs(Continued)
Power/Activity
(Blue) LED
Activity
(flashing)
On solid
On solid
On solid
None
For information on removing media drives, see the topic "Removing and Replacing Media Drives" in
the FastServe | Live Edit or FastServe | Ingest Administrator's Guide.

Server Front Panel and LED Control Panel

The server has one Power button on the top right part of the server. Both models contain activity
LEDs, storage error LED, and two USB sockets.

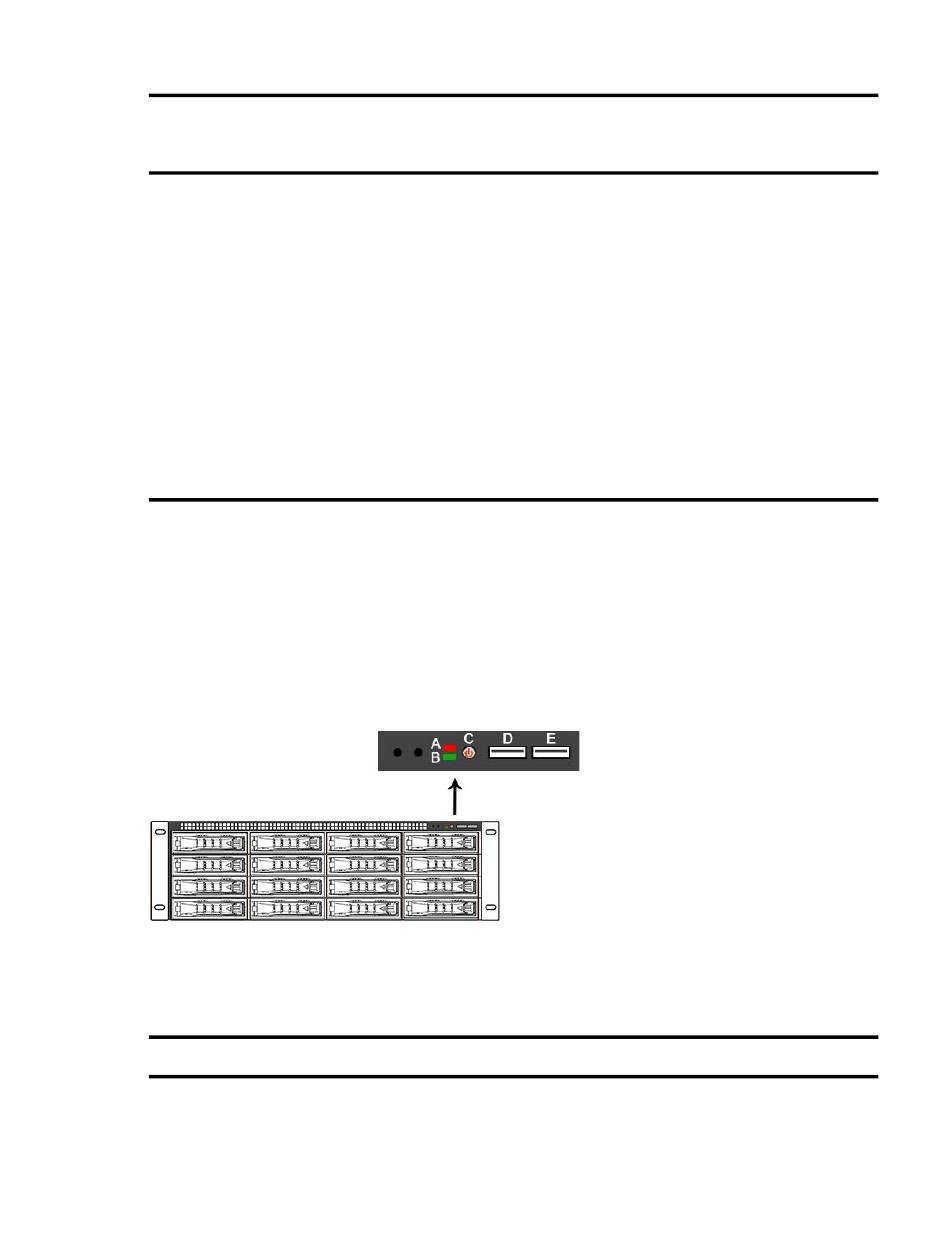

Server Front View and LED Control Panels
The following table describes the LED Control Panels shown in the previous figure.
LED Control Panel
Letter Description
A Red System error LED
B Power LED
Fault
(Red)
LED Drive State
Fast Initializing - Indicates the media drive is
flashing initializing. Occurs on initial array
creation, or when rebuilding.
Slow Degraded drive - Can be seen on more
flashing than one drive, and on the same or
different spans.
On solid Failed Data drive - Can be seen on more
than one drive, and on the same of
different spans.
Off Unused disk
None Drives are not properly connected.
Action Required
None.
You have some time, but you
should plan on replacing the
suspect drive at your earliest
convenience.
Replace this media drive.
None
Remove and reinsert the media
drives properly.
Description
Illuminates red when an error is detected with the
server (fan, power supply, temperature, voltage).
Illuminates green when the server is powered on.
