2.2 CONTROLS_______________________________________________________________
A. Tilt Steering
Pull lever up to release steering column. Tilt column
up or down to position desired. Release lever to lock
steering column in place.
!
CAUTION
Never adjust steering while mower is moving. Stop
unit and set parking brake before adjusting.
B. Turn Assist
Reduces the turning radius of the machine for
operation in close areas. Use the turn assist pedals
for making tight turns around trees and other objects.
To operate turn assist, press pedal down gradually
until desired turning radius is achieved - left pedal
(B1) for left turns, right pedal (B2) for right turns.
Note: Pressing pedal too hard will cause wheel to
lock up and may tear or mark the turf.

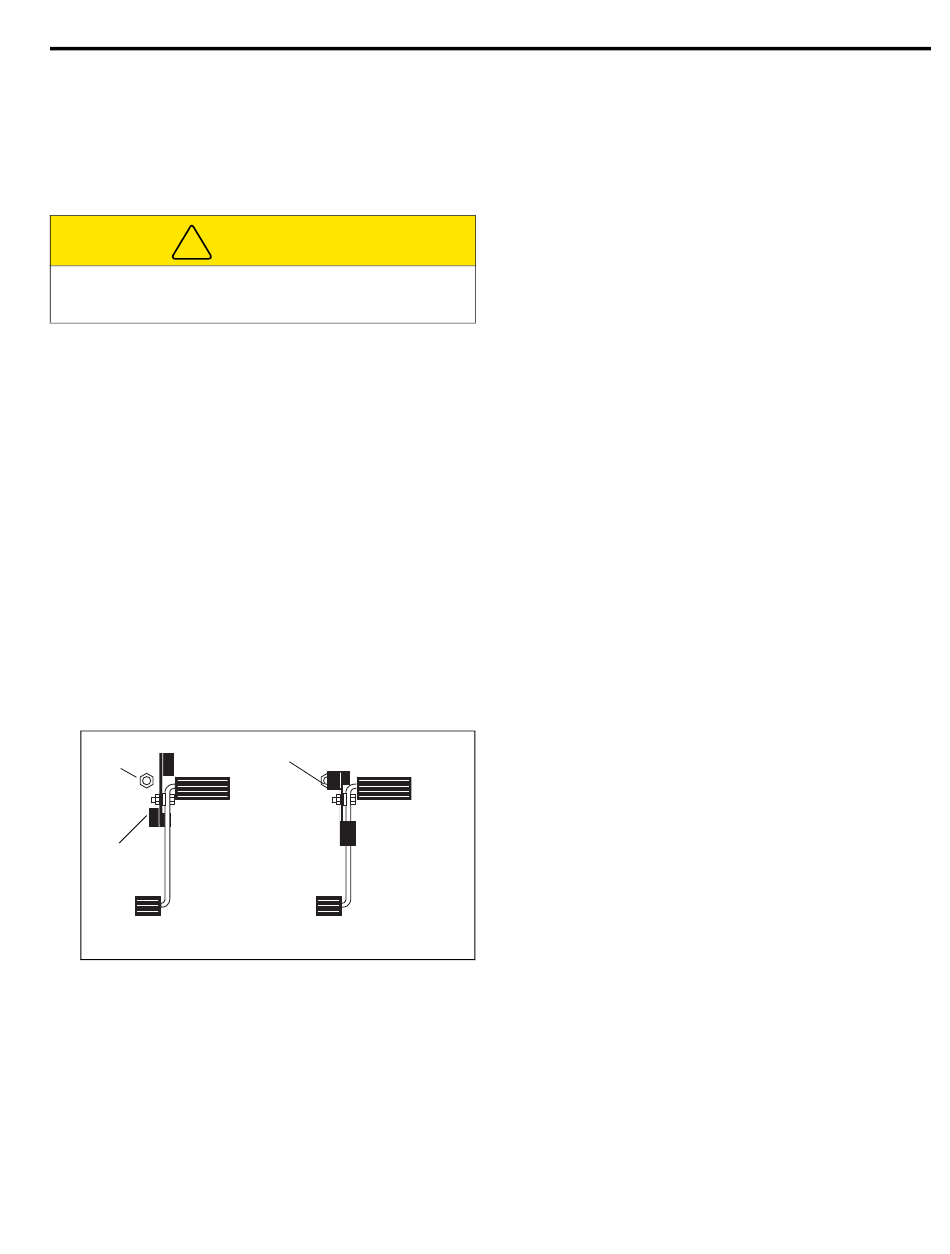

C. Speed Limiter
Limits forward speed while cutting or operating
attachments. To operate at lower travel speed rotate
lever as shown (C ) so it contacts stop screw on floor
1
board when traction pedal is pressed forward. To
travel at full speed, set lever in position shown (C
Stop screw (C ) can be adjusted to set specific travel
2
speeds.
C
2
C
3
Full Speed
D. Traction Pedal
Press front pedal (D
Release pedal to slow mower and stop.
Press rear pedal (D
Release pedal to slow mower and stop. Allow mower
to come to a complete stop before reversing
directions.
C
1
Reduced Speed
Figure 2B
) down for forward travel.
1
) down for reverse travel.
2
E. Alarm
The alarm, along with the warning lights, sounds to
alert the operator to conditions requiring immediate
attention. See Section 2.4.
F. Hydraulic Oil Cap/Dipstick
Fill to green mark on dipstick using clean hydraulic
fluid while machine is cool. Do not overfill.
G. Fuel Cap
Fill fuel tank with No. 2 diesel fuel, minimum cetane
rating of 45. See Safety & Operation Manual and
Engine Manual for additional fuel specifications.
H. Parking Brake
To engage parking brake pull up on lever. Always
engage parking brake before starting and after
stopping machine. Parking brake tension can be
adjusted by turning knob on end of parking brake
handle.
I. Seat Adjustments
The standard operator's seat has five adjustment
settings.
Description
Raise/Lower Control
Back Rest Tilt
).
3
Fore/Aft Control Bar
Back Lumbar Support
Arm Rest Control
J. Side Deck Transport Locks
Locks decks in upright position for transporting
mower. Locks must be manually released before
lowering decks.
HR023
CONTROLS
Location on Seat
left, front - under seat
left, front - under seat.
front of seat
left side on back rest
under each arm rest
en-8
