4 ADJUSTMENTS

4.14 STEERING STOP BOLTS ___________________________________________________

1. Steering toe-in must be set before adjusting stop
bolts. If toe-in is changed, stop bolts must be re-
adjusted.
2. Turn stop bolts (P and Q) out as far as possible
without removing them.

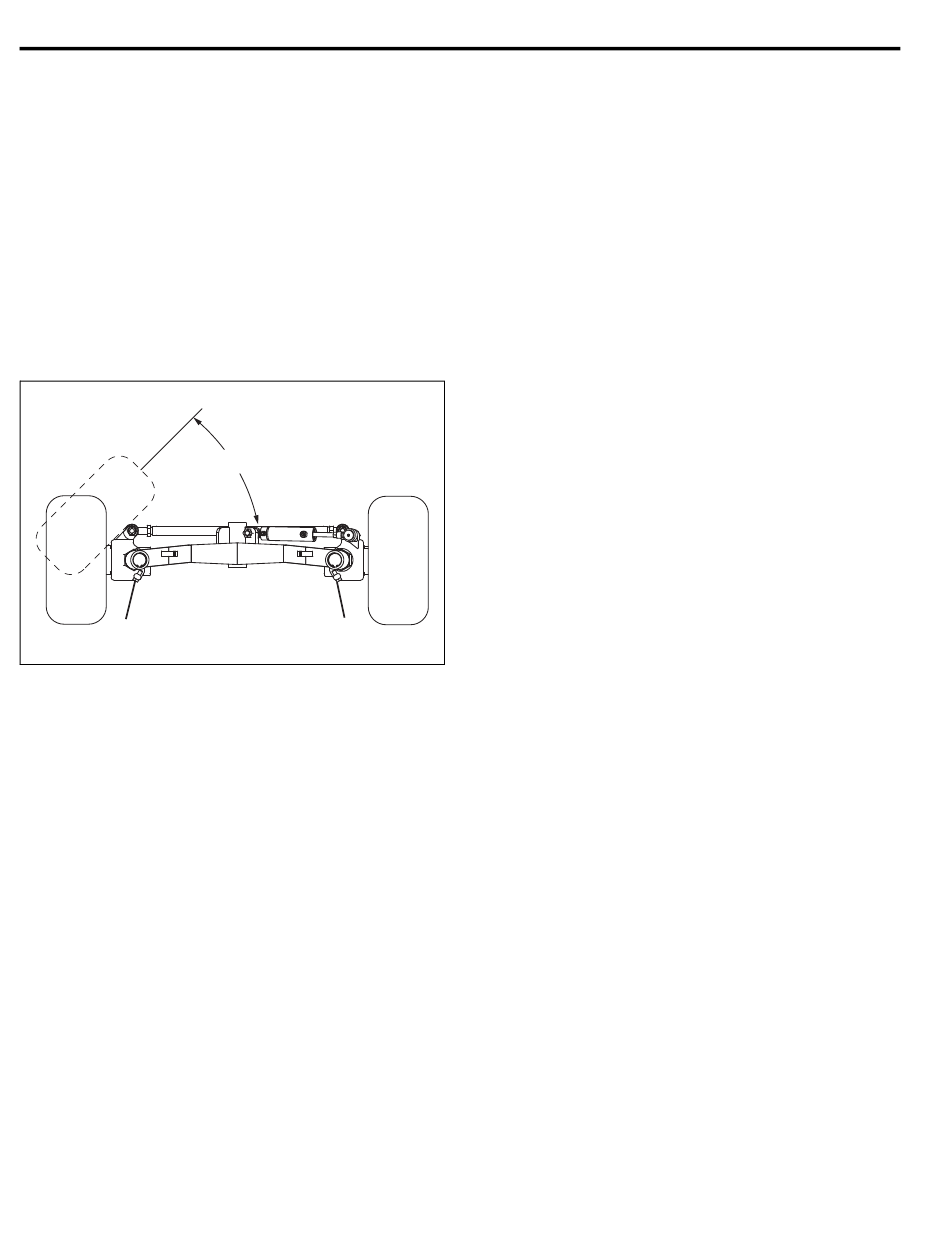

3. Turn steering wheel to the right until right rear tire is
at a 45° angle to steering axle. Thread stop bolt (P)
in until bolt touches axle.
4. Turn steering wheel to the left until left rear tire is at
a 45° angle to steering axle. Thread stop bolt (Q) in
until bolt touches axle.
P
en-23
°
45
Q
Figure 4N
