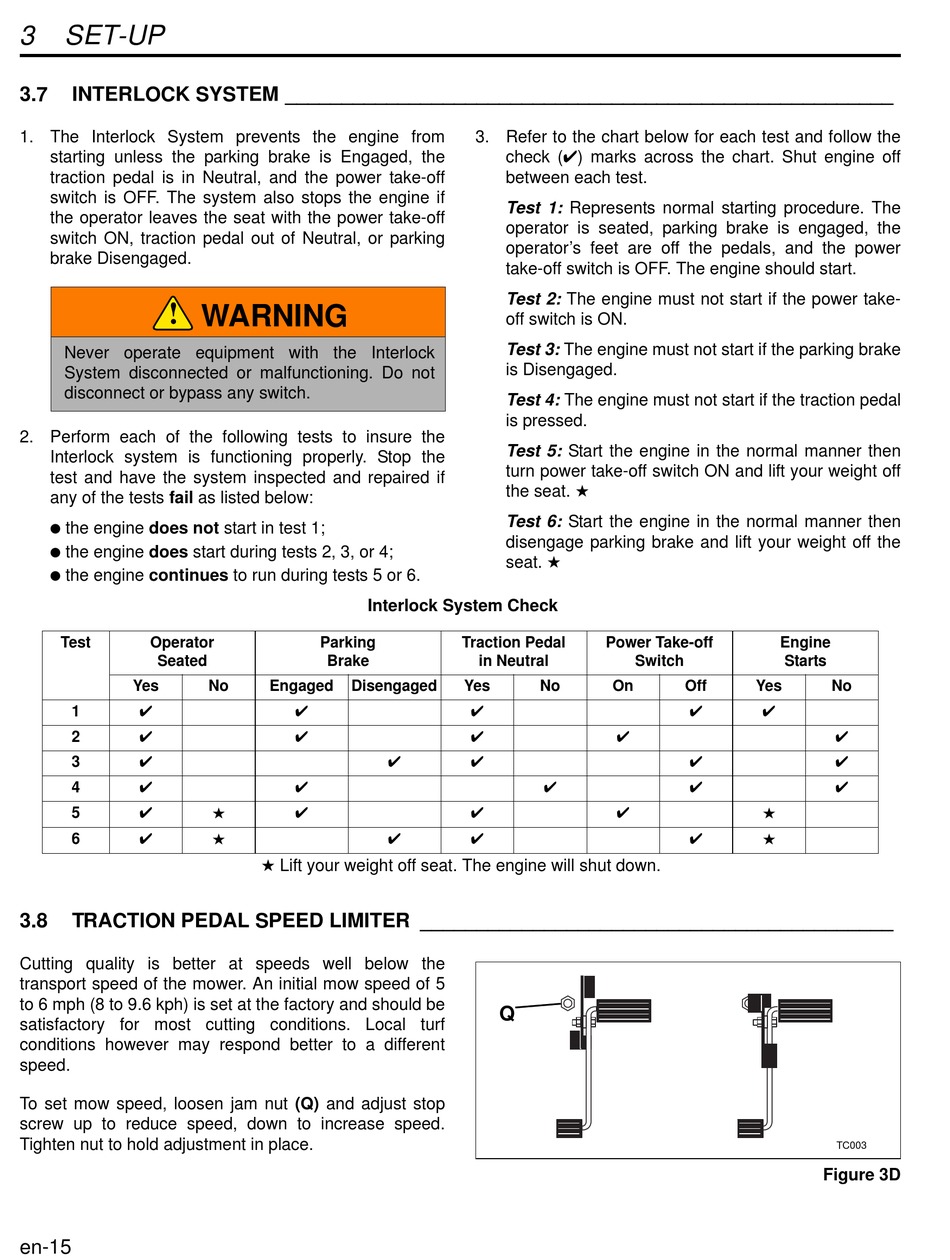

3 SET-UP
3.7

INTERLOCK SYSTEM ______________________________________________________

1. The Interlock System prevents the engine from
starting unless the parking brake is Engaged, the
traction pedal is in Neutral, and the power take-off
switch is OFF. The system also stops the engine if
the operator leaves the seat with the power take-off
switch ON, traction pedal out of Neutral, or parking
brake Disengaged.
!
Never operate equipment with the Interlock
System disconnected or malfunctioning. Do not
disconnect or bypass any switch.
2. Perform each of the following tests to insure the
Interlock system is functioning properly. Stop the
test and have the system inspected and repaired if
any of the tests fail as listed below:
the engine does not start in test 1;

the engine does start during tests 2, 3, or 4;

the engine continues to run during tests 5 or 6.

Test Operator
Seated
Yes

1

2

3

4

5

6
3.8

TRACTION PEDAL SPEED LIMITER __________________________________________

Cutting quality is better at speeds well below the
transport speed of the mower. An initial mow speed of 5
to 6 mph (8 to 9.6 kph) is set at the factory and should be
satisfactory for most cutting conditions. Local turf
conditions however may respond better to a different
speed.
To set mow speed, loosen jam nut (Q) and adjust stop
screw up to reduce speed, down to increase speed.
Tighten nut to hold adjustment in place.
en-15
WARNING
Interlock System Check
Parking
Brake
No Engaged Disengaged



 

Lift your weight off seat. The engine will shut down.
3. Refer to the chart below for each test and follow the
check () marks across the chart. Shut engine off
between each test.
Test 1: Represents normal starting procedure. The
operator is seated, parking brake is engaged, the
operator's feet are off the pedals, and the power
take-off switch is OFF. The engine should start.
Test 2: The engine must not start if the power take-
off switch is ON.
Test 3: The engine must not start if the parking brake
is Disengaged.
Test 4: The engine must not start if the traction pedal
is pressed.
Test 5: Start the engine in the normal manner then
turn power take-off switch ON and lift your weight off
the seat.
Test 6: Start the engine in the normal manner then
disengage parking brake and lift your weight off the
seat. 
Traction Pedal
in Neutral
Yes No


 


 
Q
Power Take-off Engine
Switch Starts
On Off Yes
 



 
 
No



TC003
Figure 3D
